Message Center Switch

REMOVAL
1. Remove the instrument cluster finish panel.







2. Remove the message center switch.

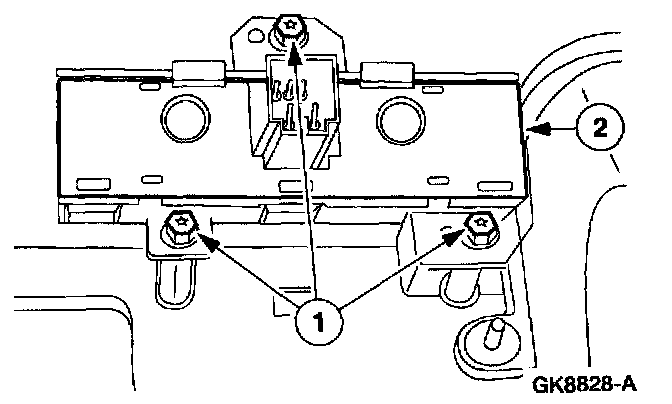

1 Remove the screws.
2 Remove the message center switch.
- Install new illumination bulbs as necessary.

NOTE: The illumination bulbs are replaceable.

INSTALLATION
1. To install, reverse the removal procedure.
