Warning Devices

REMOVAL
1. Remove the ignition switch lock cylinder.







2. Remove the key-in-ignition warning switch.

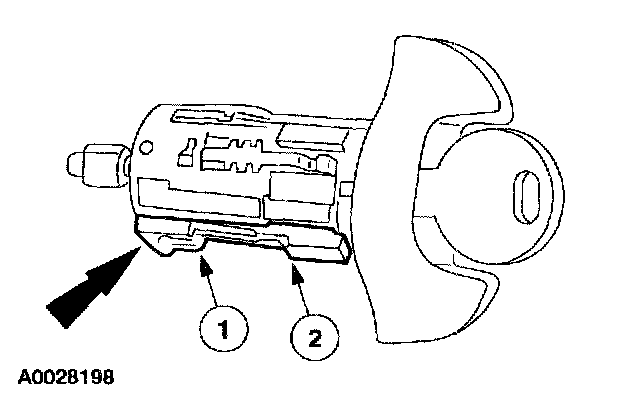

1 Release the clip.
2 Push the key-in-ignition warning switch off the rear of the ignition switch lock cylinder.

INSTALLATION
1. To install, reverse the removal procedure.
