Home >> Ford >> 2002 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Testing and Inspection >> Pinpoint Tests >> Test G: B1445 Or B1442: Door Handle Switch Failure

Test G: B1445 Or B1442: Door Handle Switch Failure

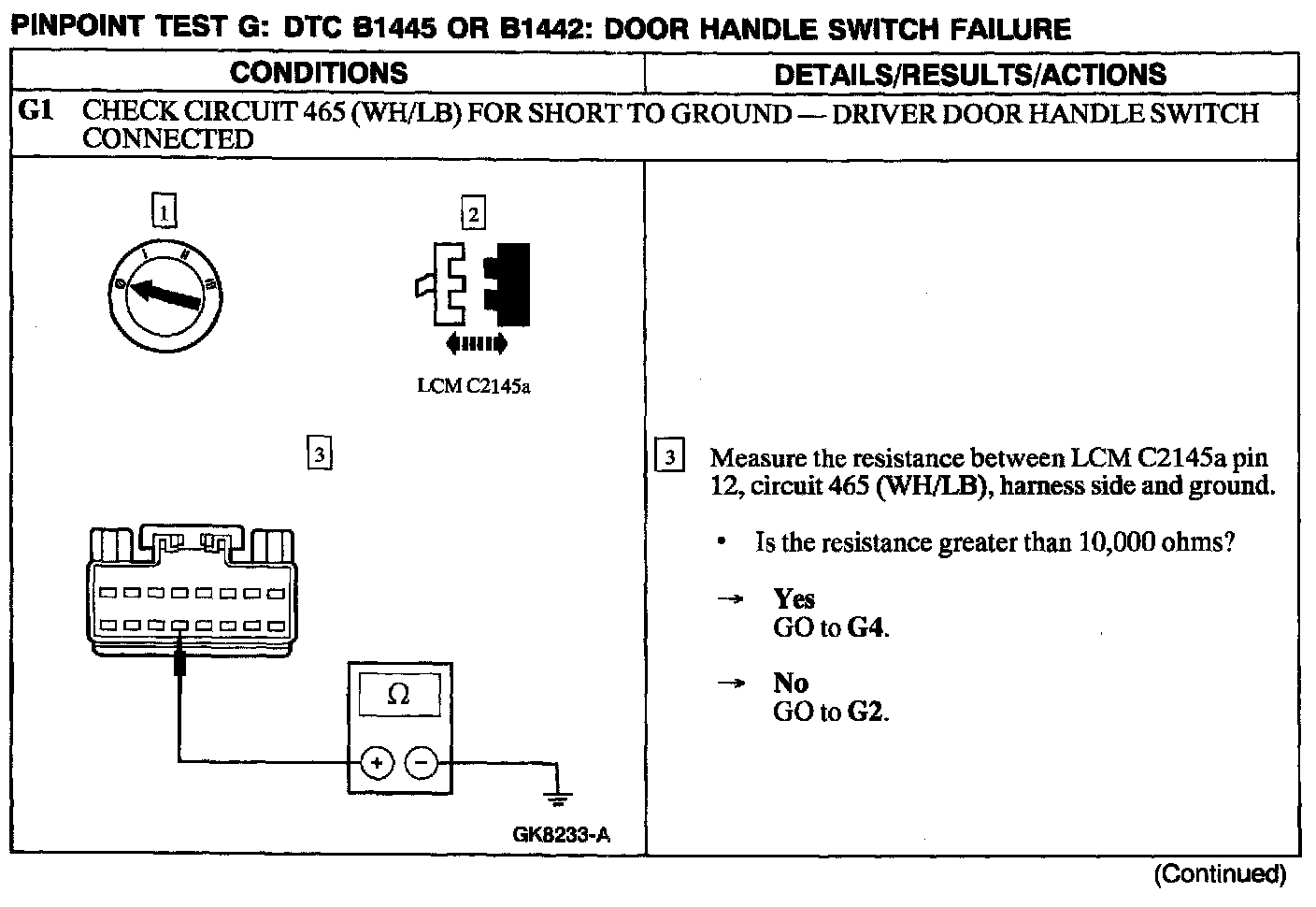

G1:

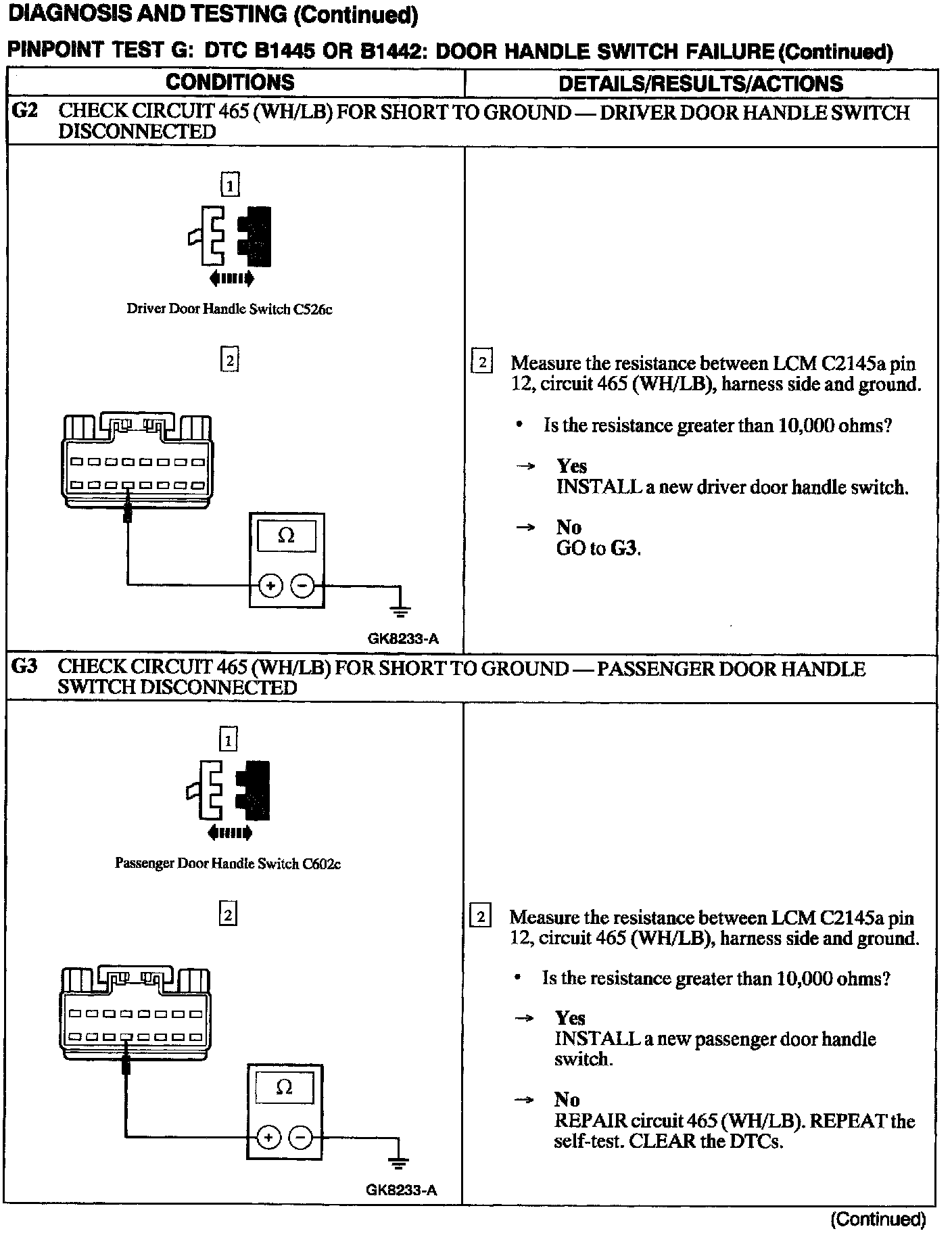

G2 - G3:

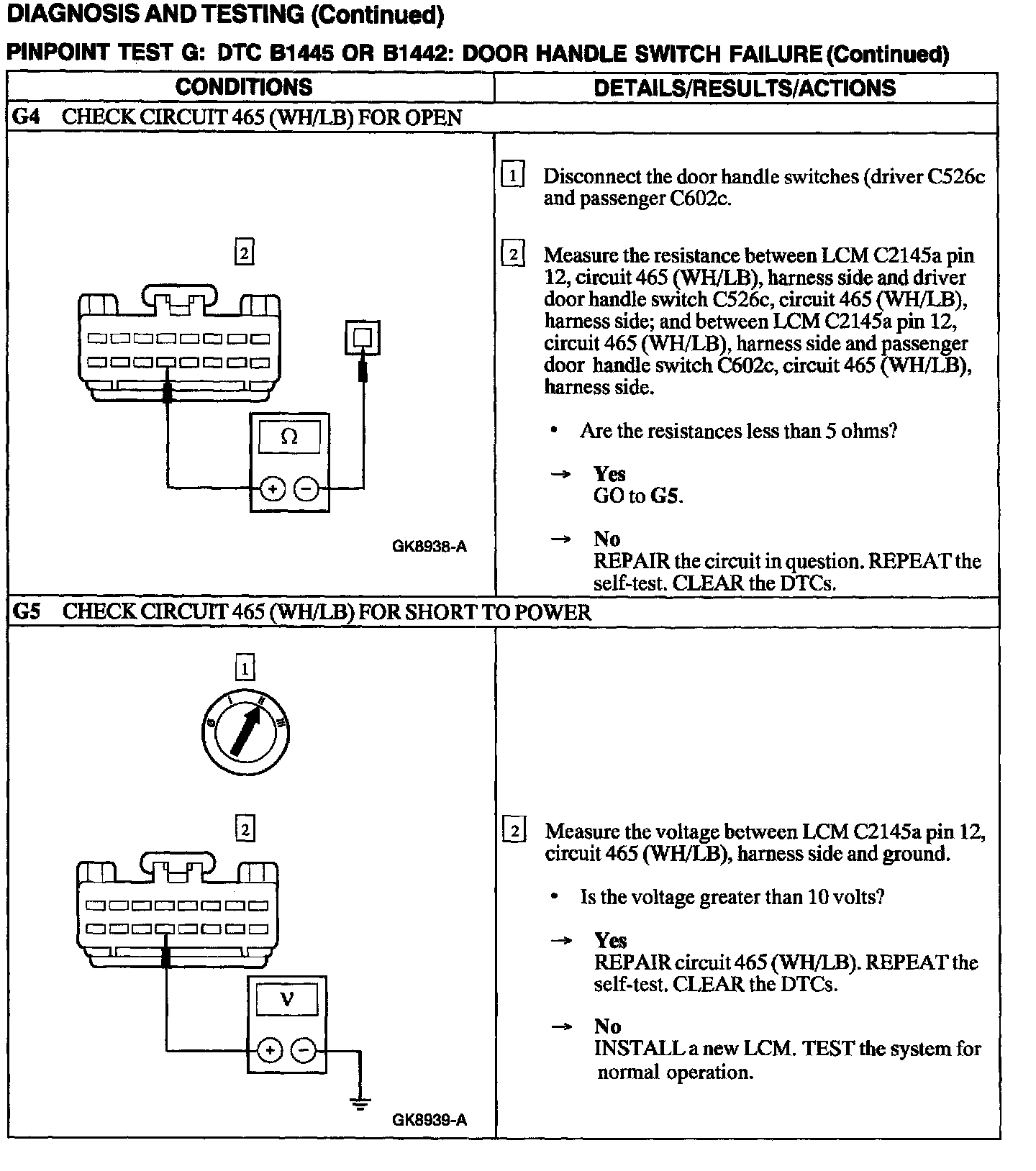

G4 - G5:
