Electrical Diagrams

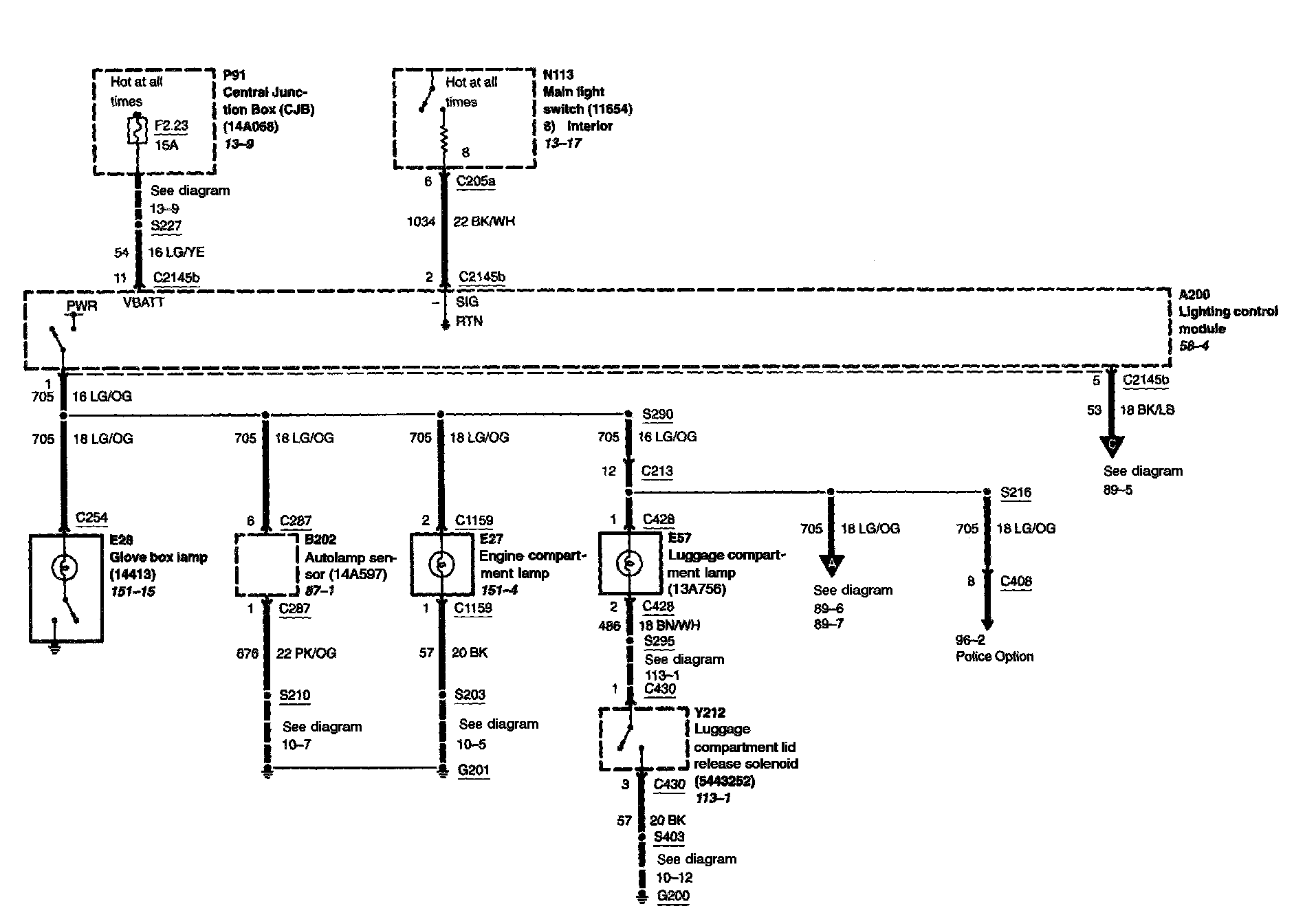

Diagram 89-1:

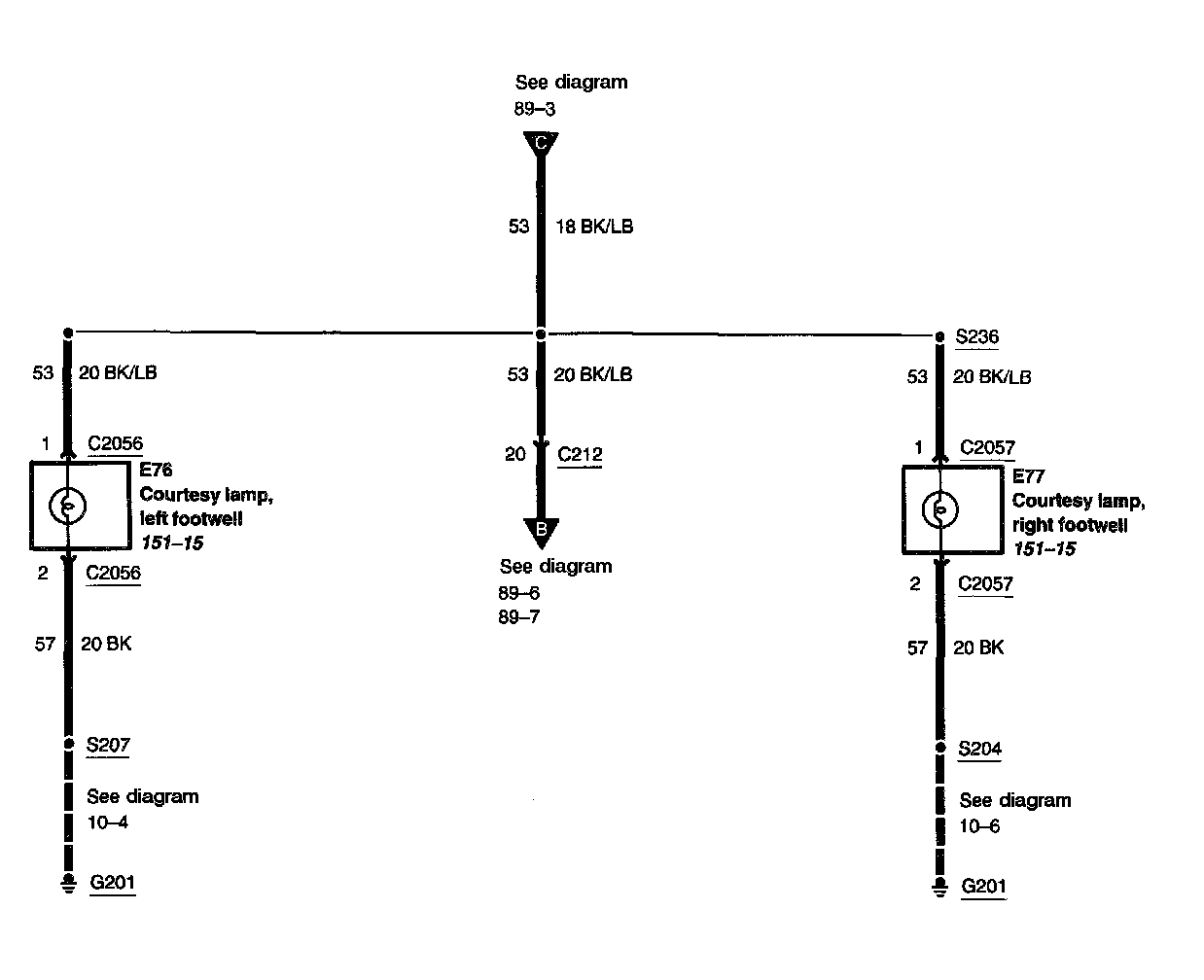

Diagram 89-2:

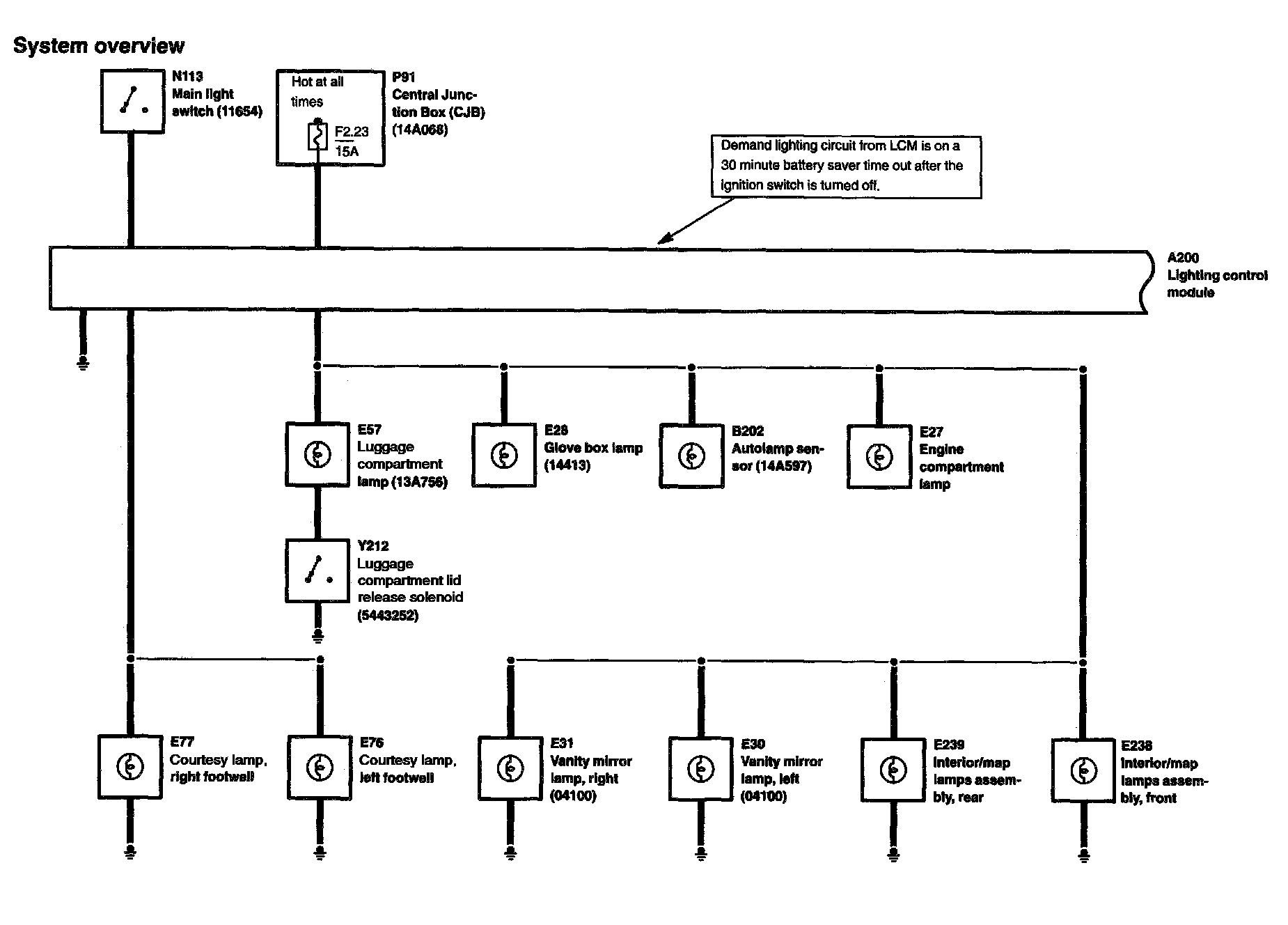

Diagram 89-3:

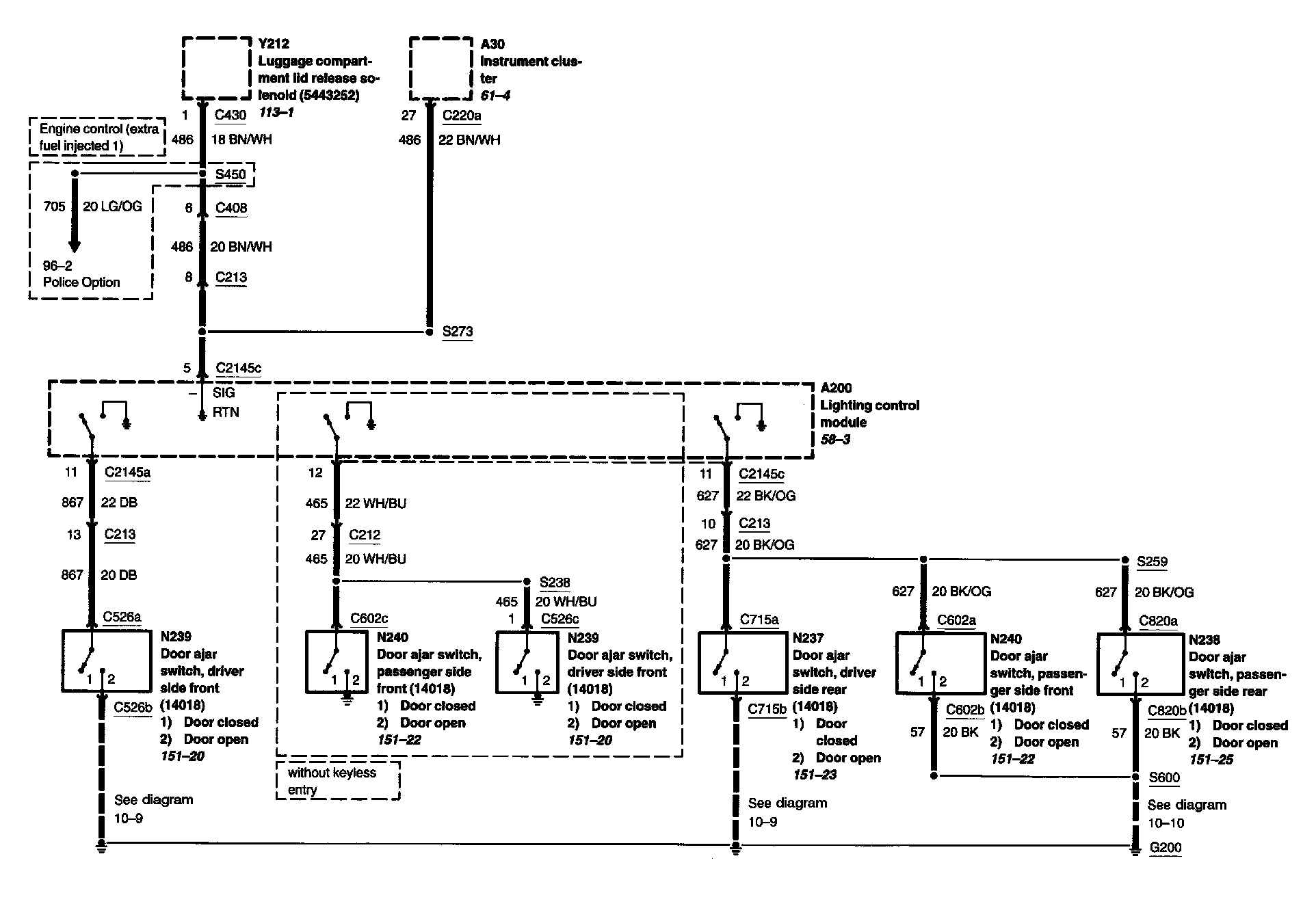

Diagram 89-4:

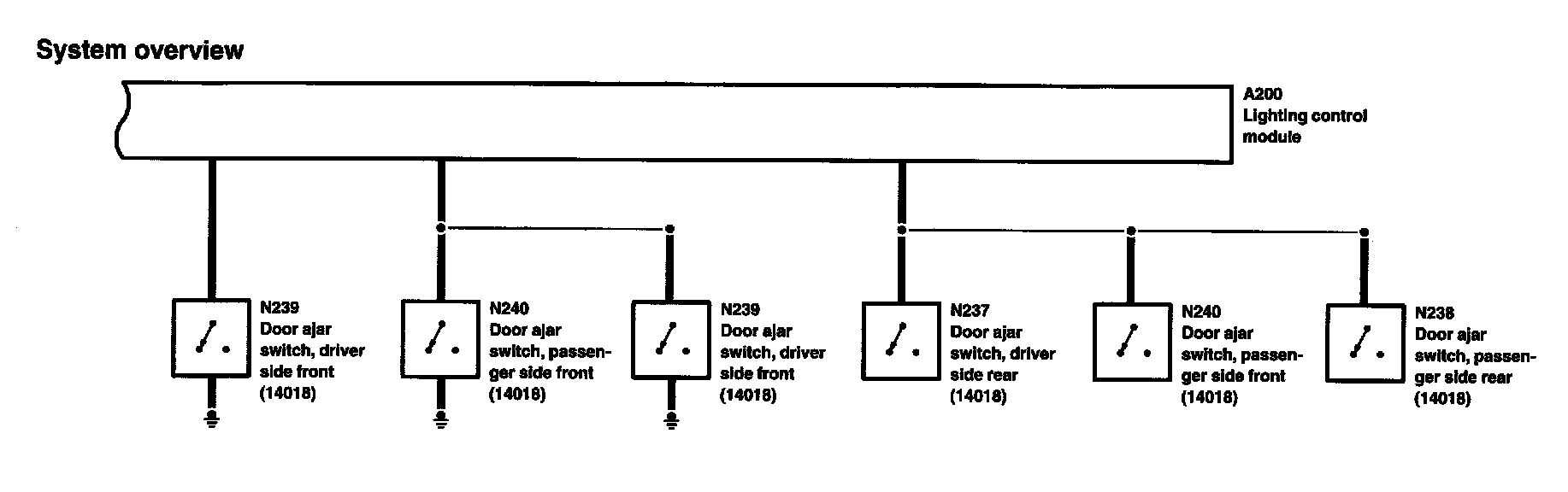

Diagram 89-5:

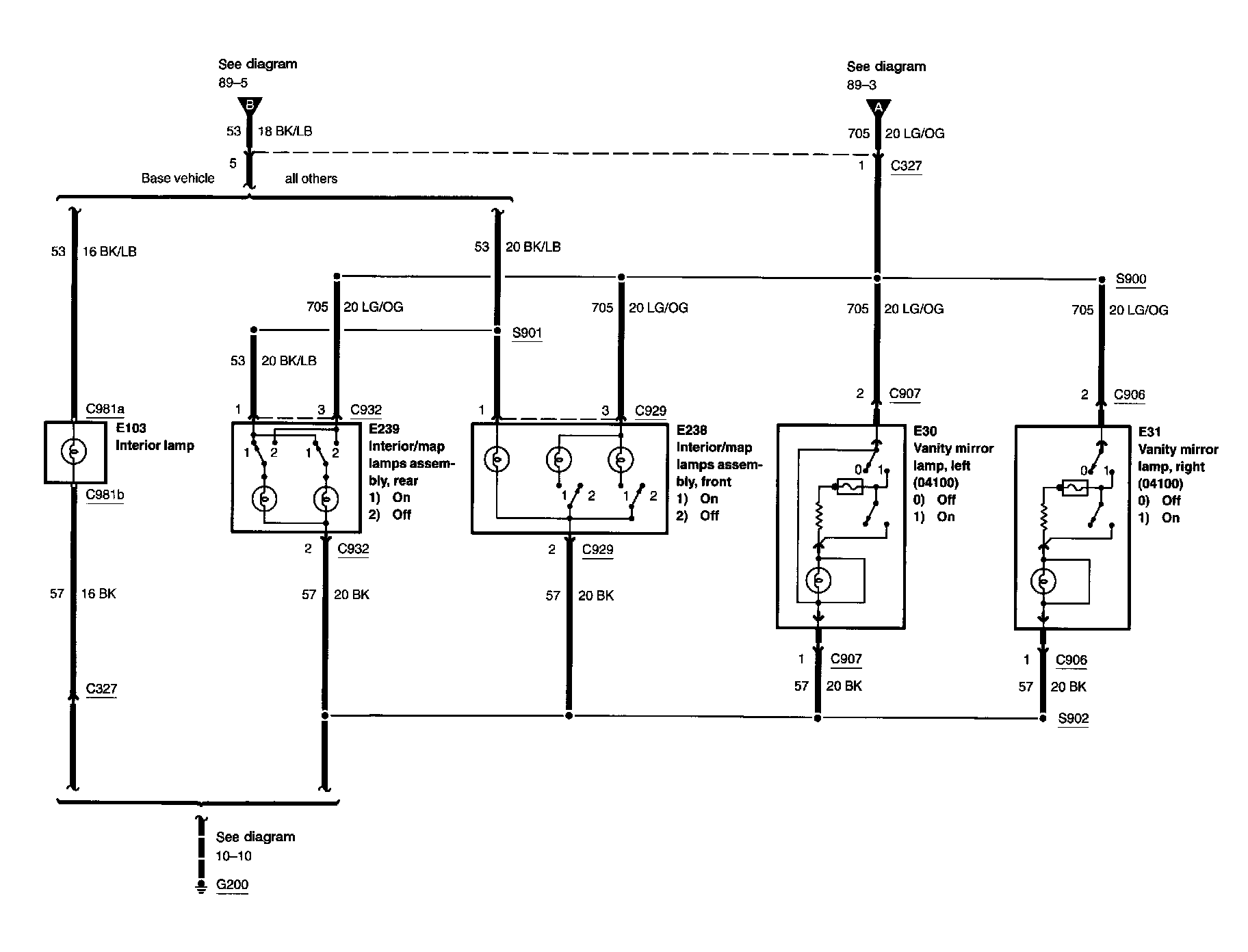

Diagram 89-6:

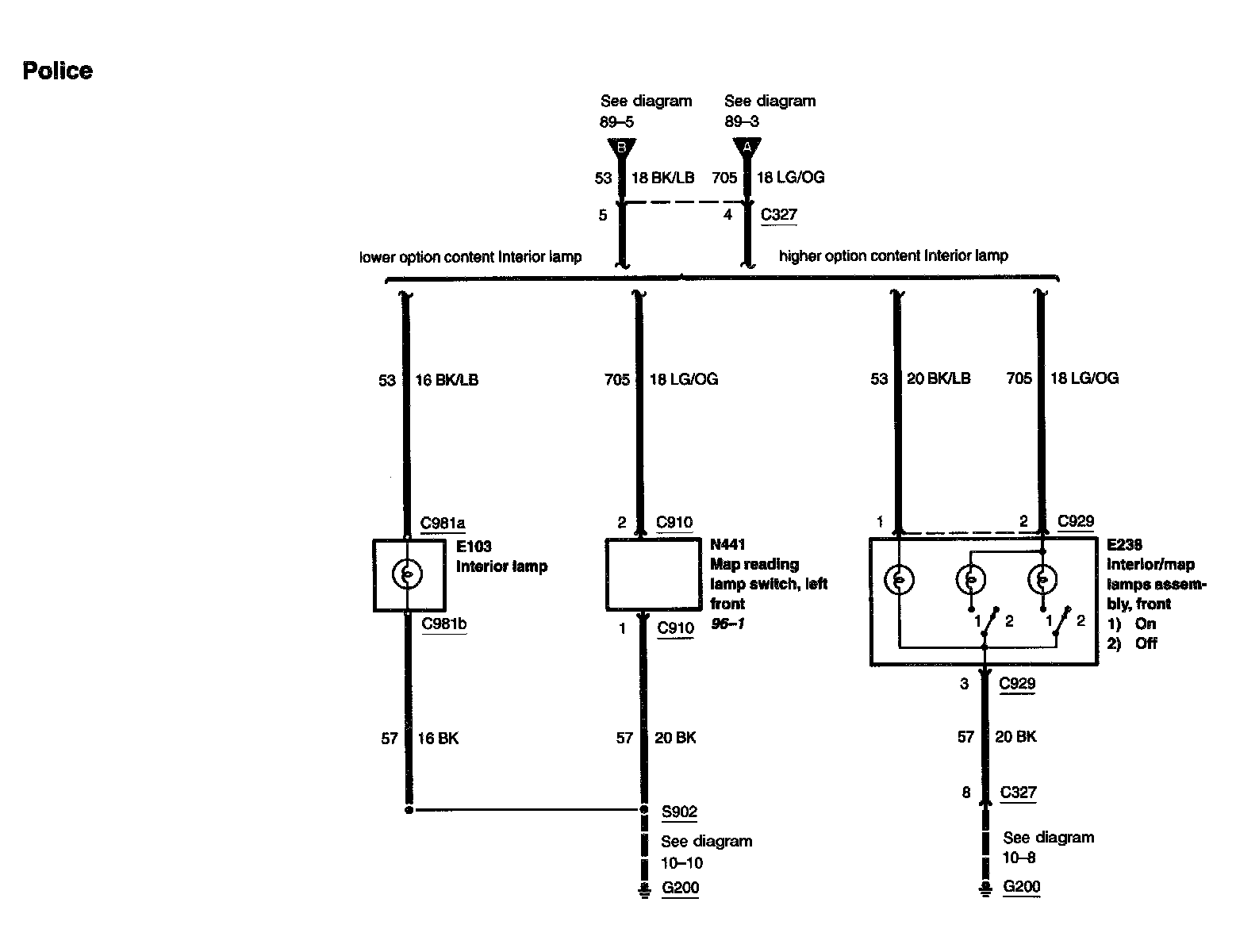

Diagram 89-7:
