Home >> Ford >> 2002 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> Pinpoint Tests >> Autolamps >> Test H: Autolamp Time Delay Is Inoperative

Test H: Autolamp Time Delay Is Inoperative

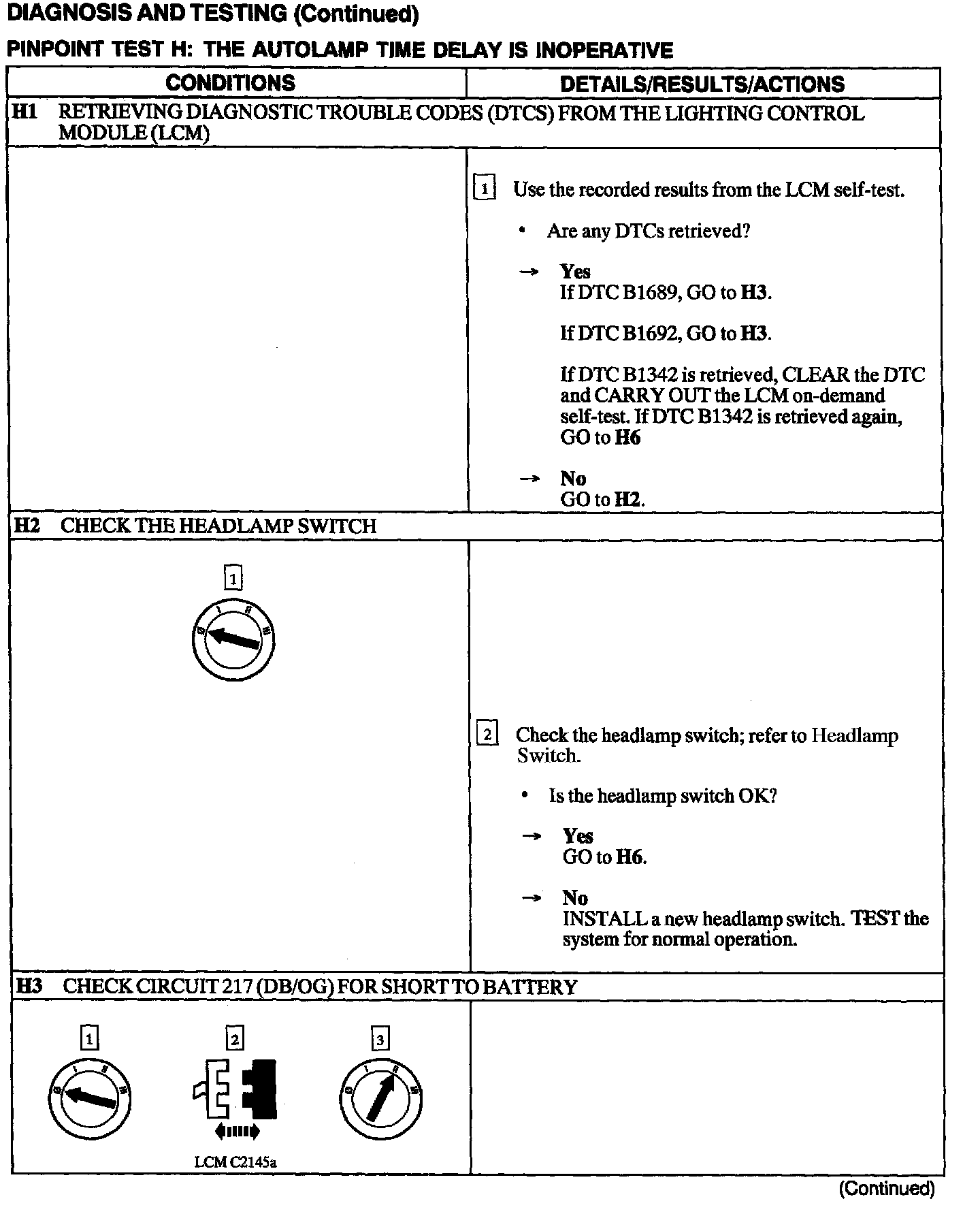

H1 - H3:

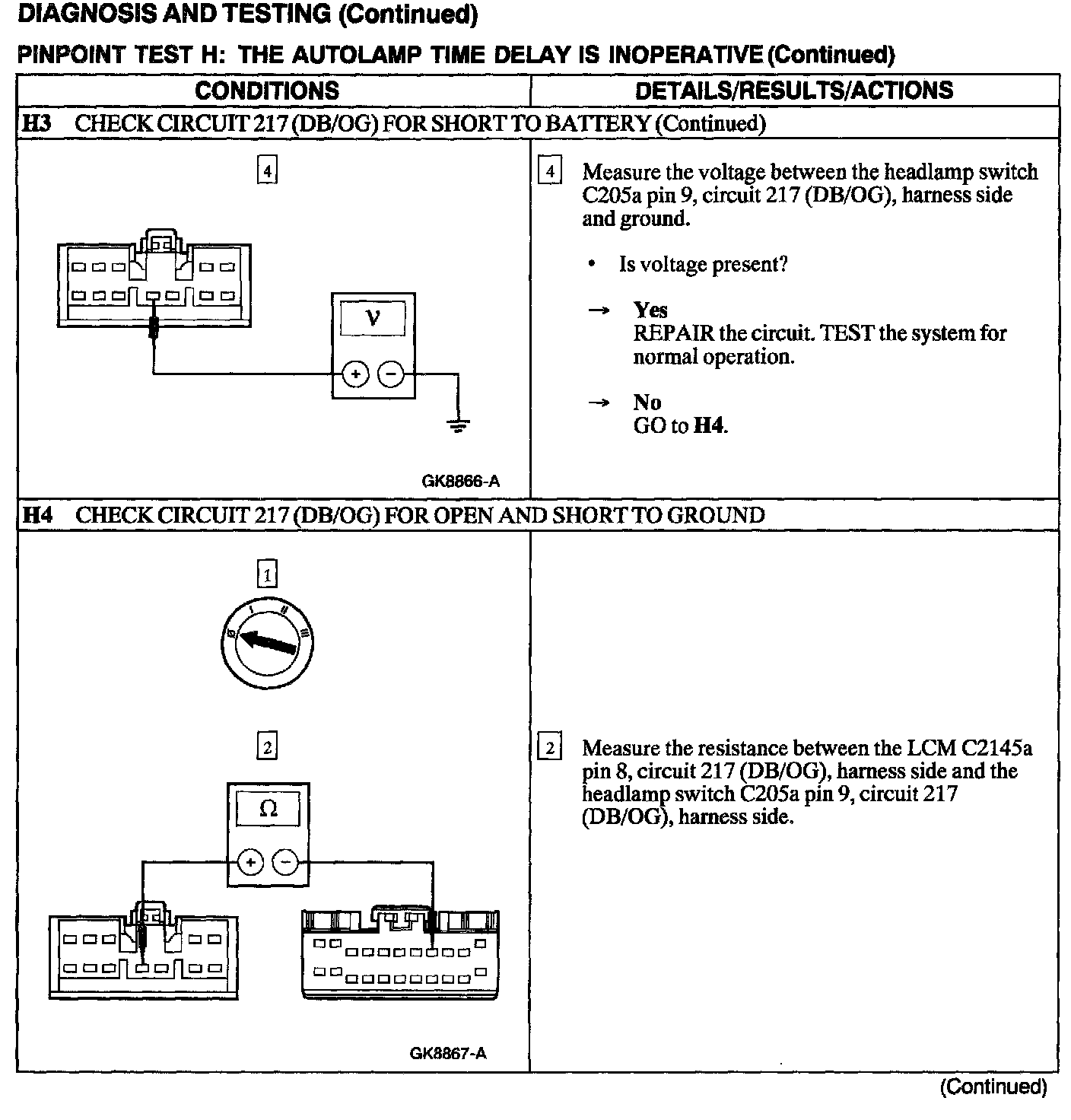

H3 - H4:

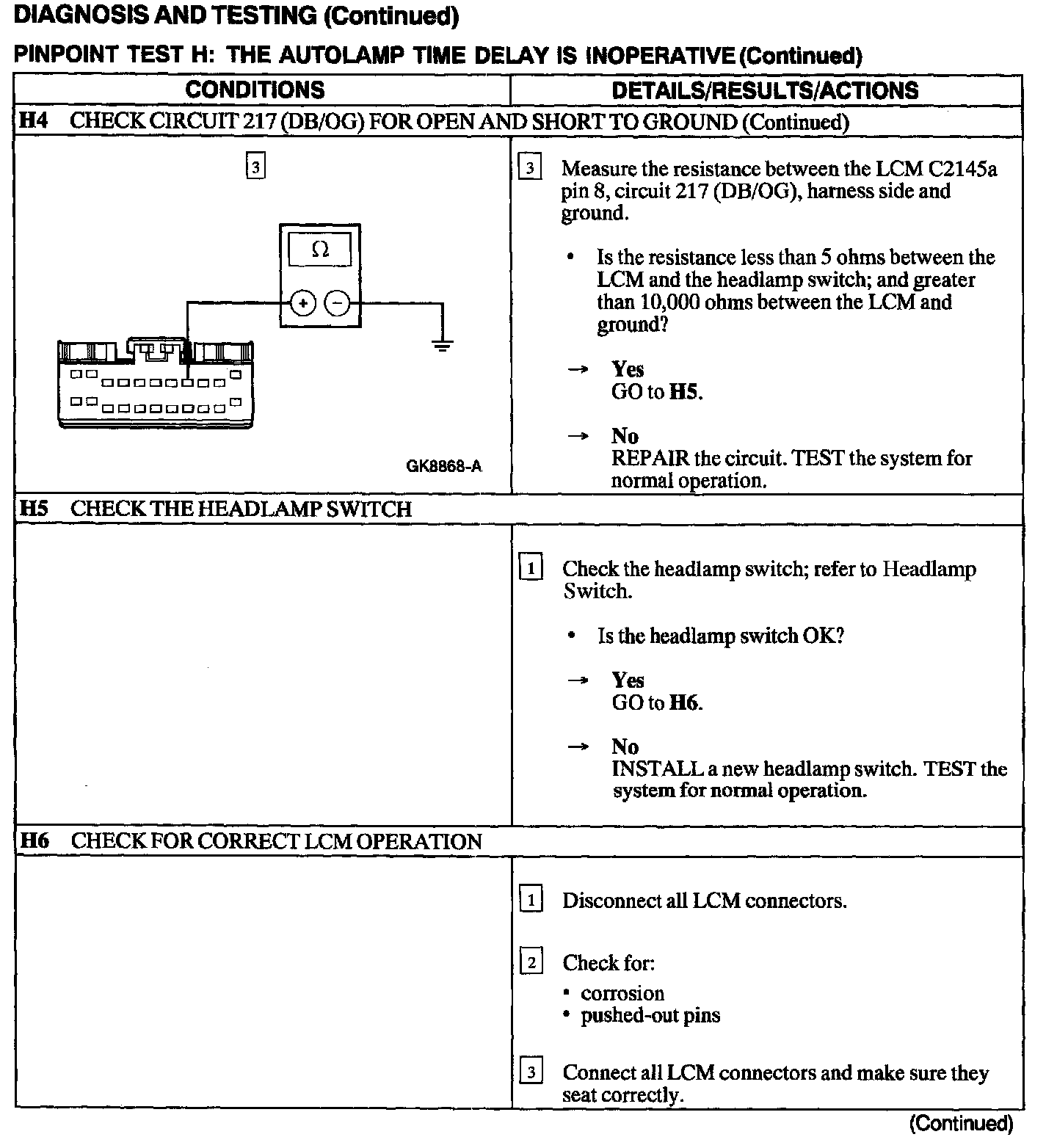

H4 - H6:

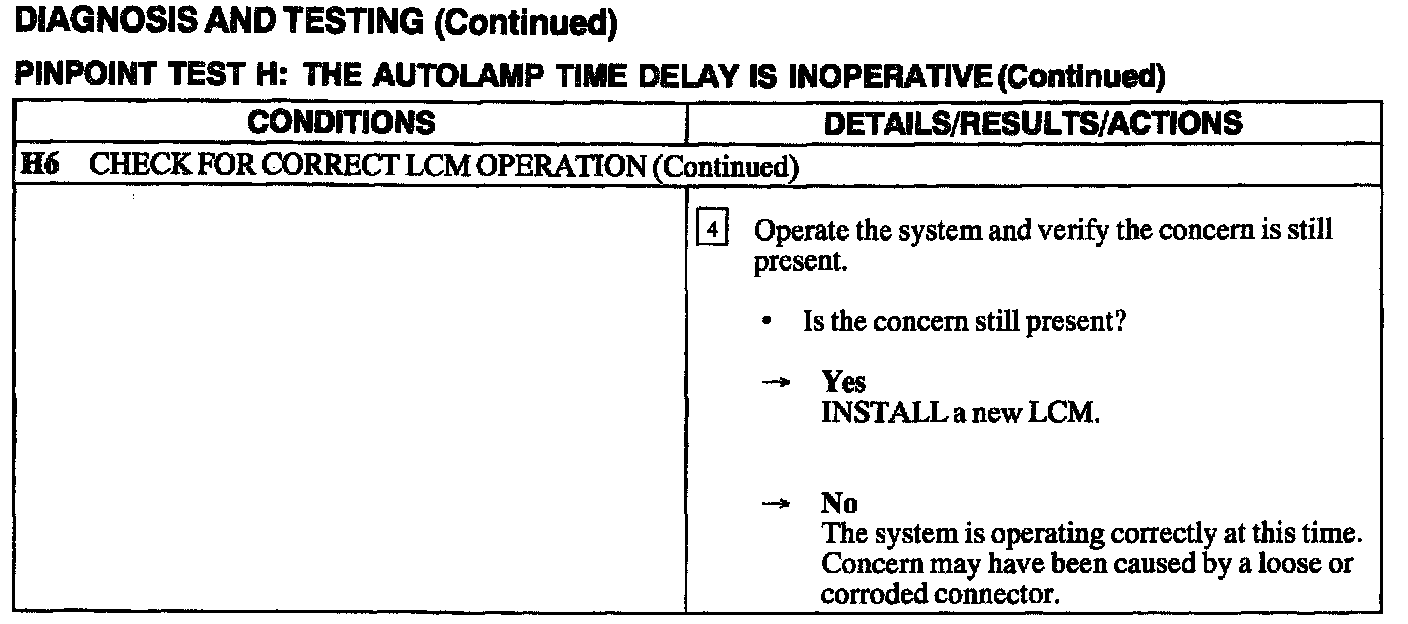

H6:
