Test A: Both Headlamps Are Inoperative - High Beams And Low Beams

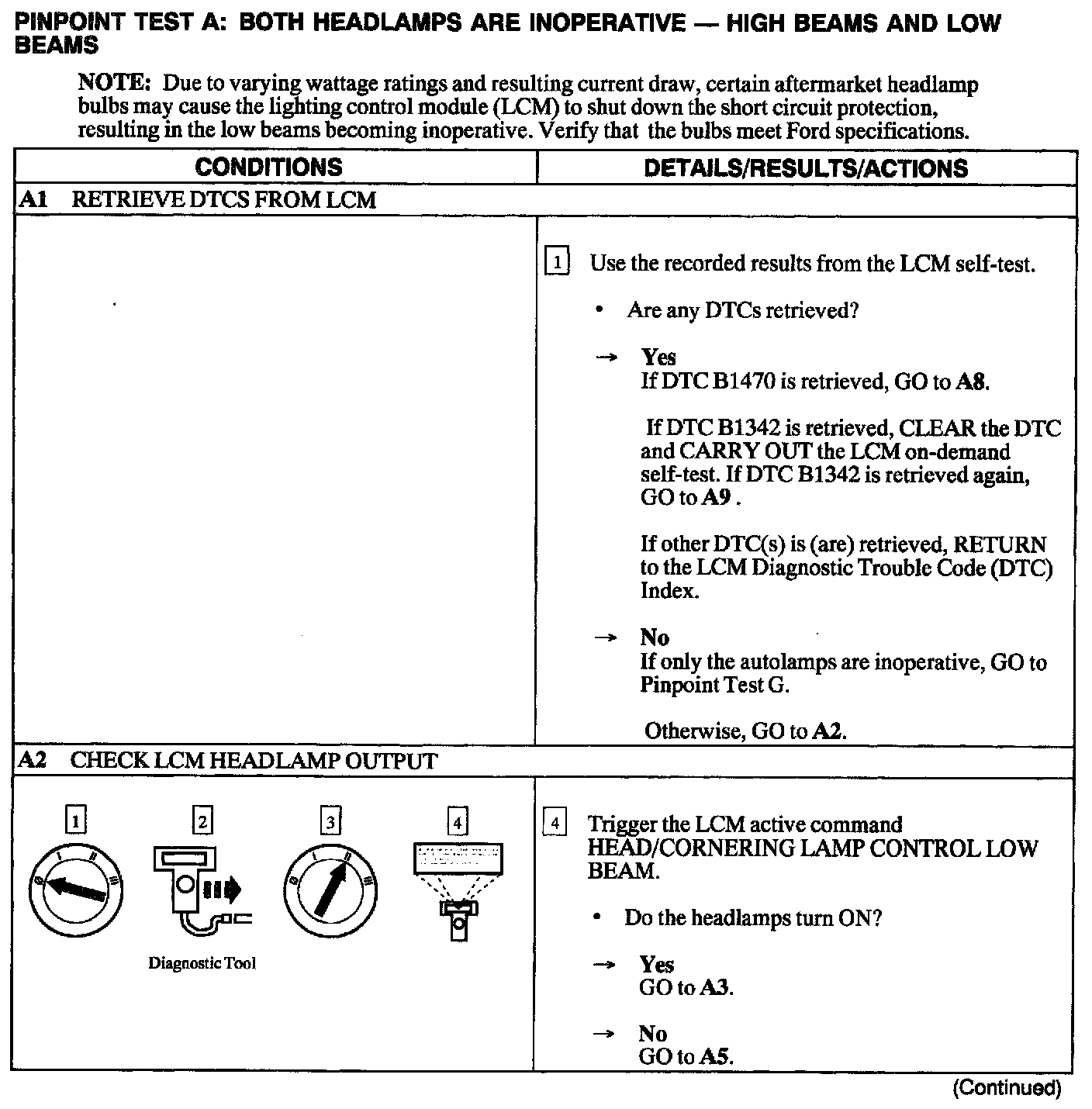

A1 - A2:

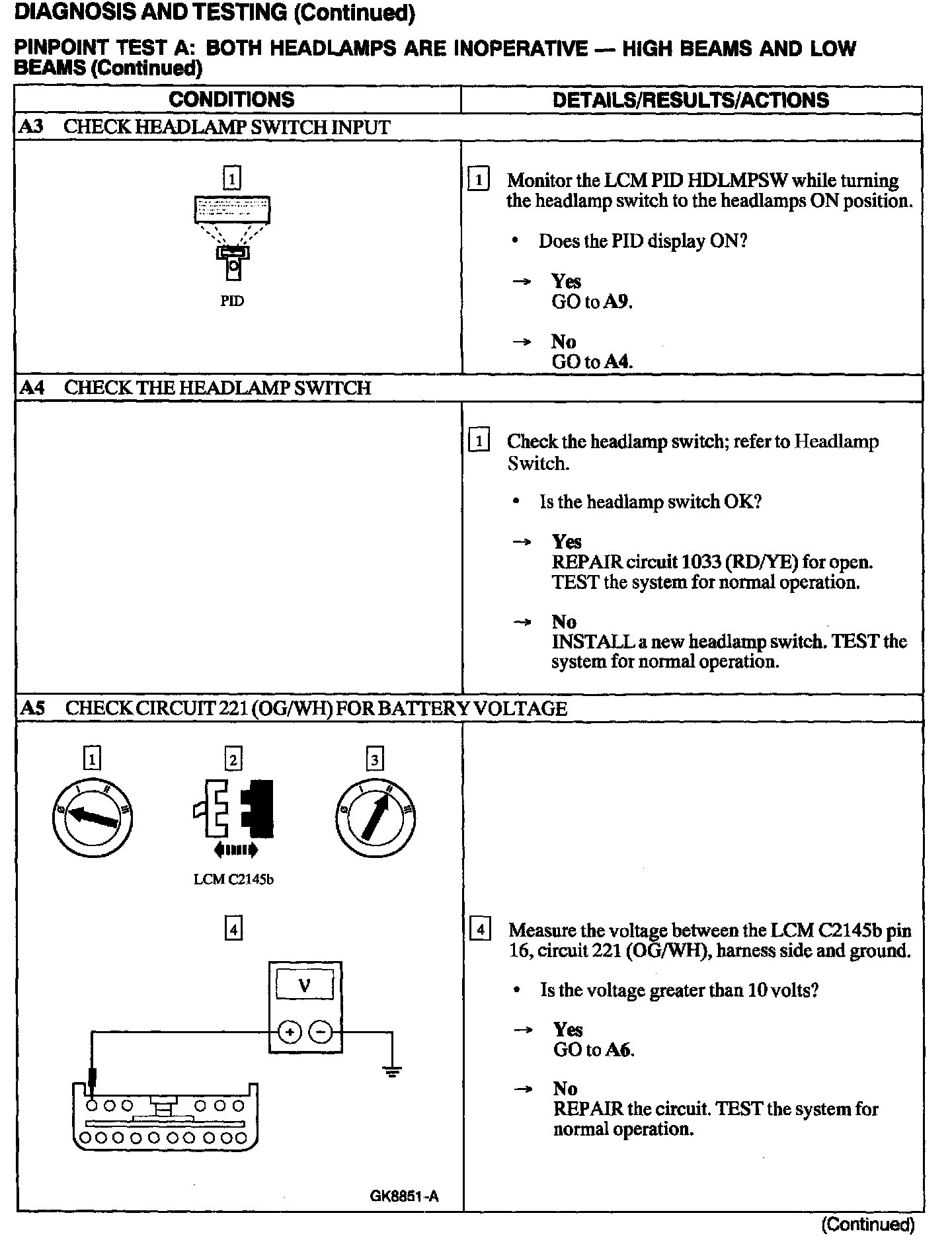

A3 - A5:

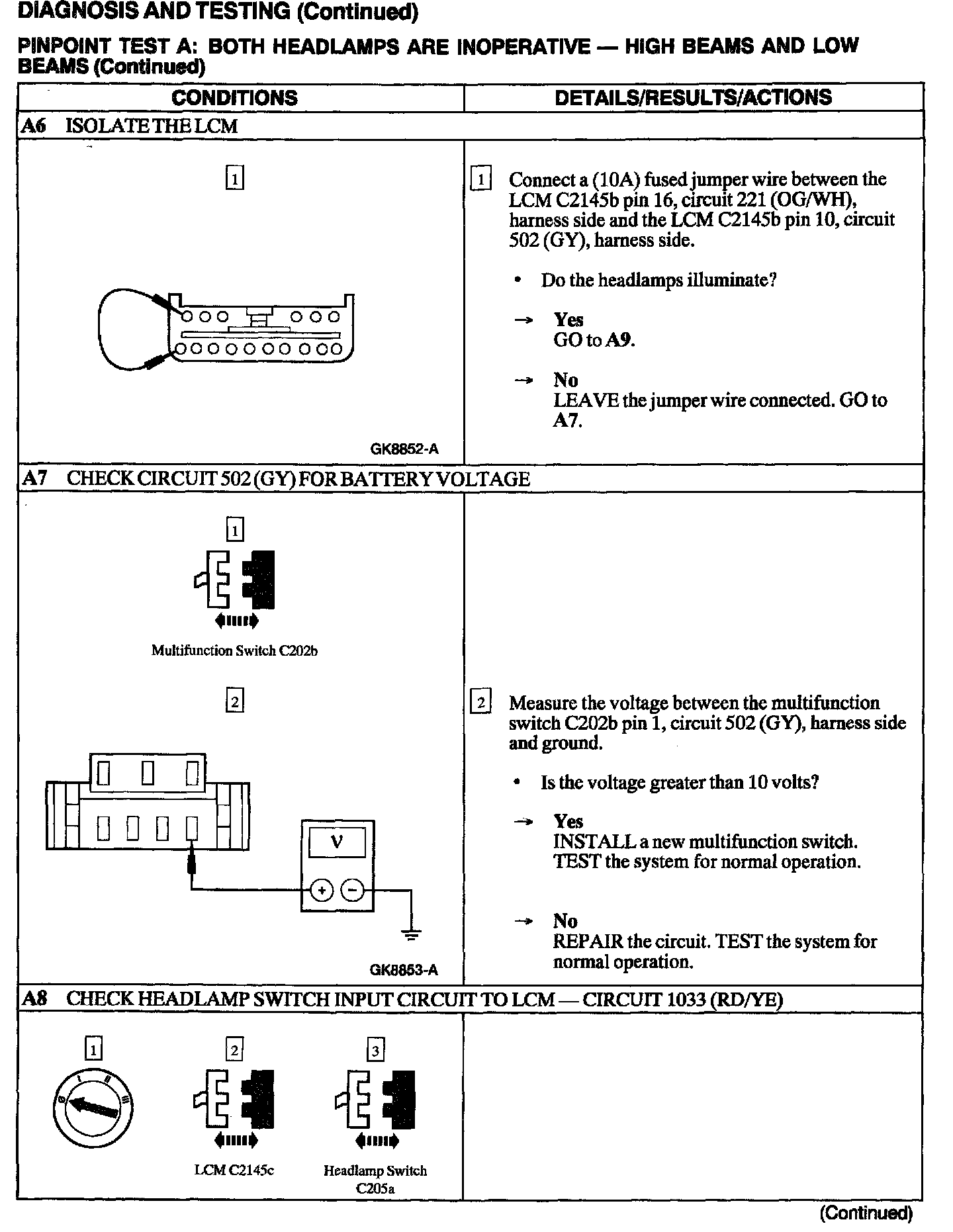

A6 - A8:

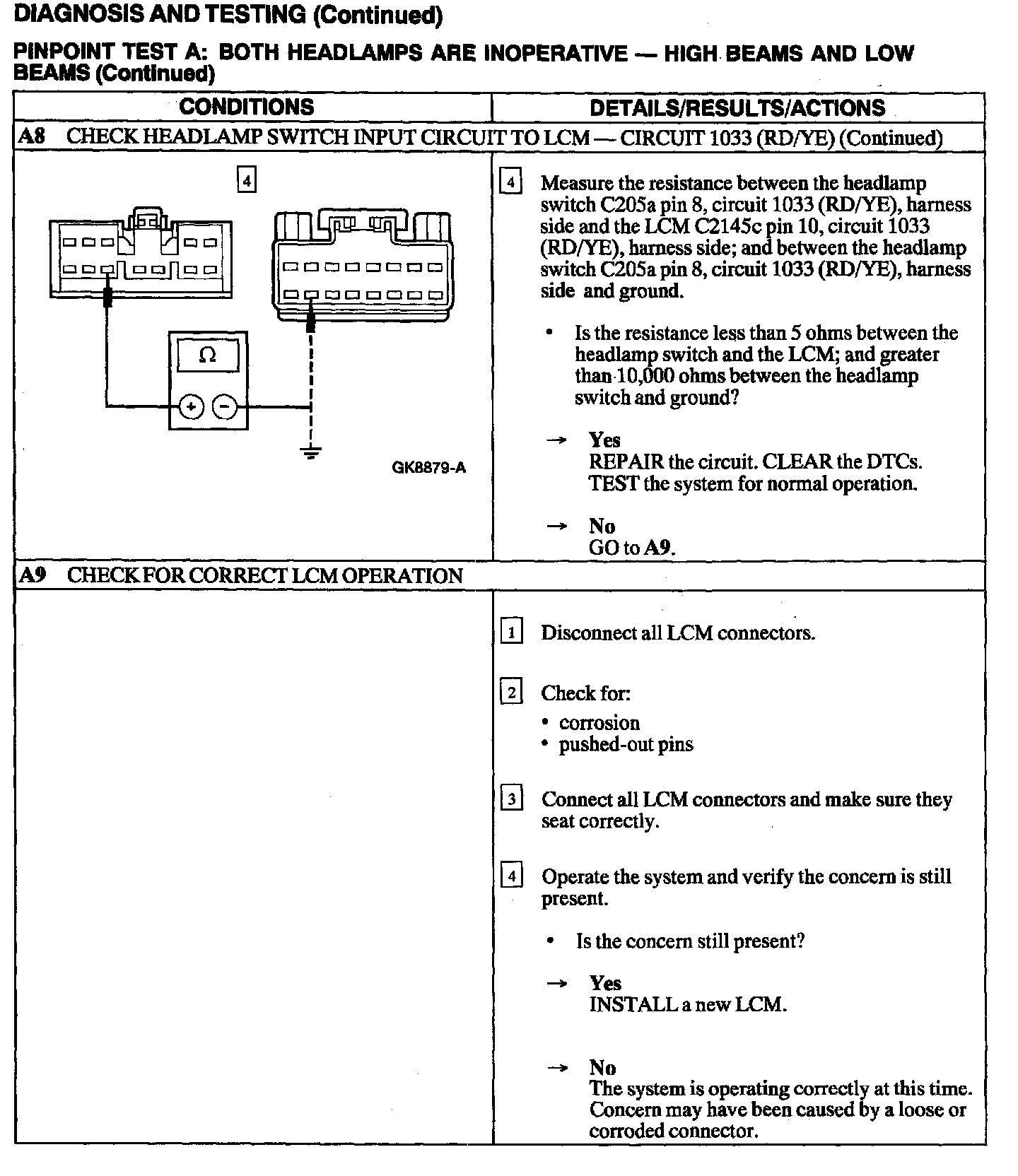

A8 - A9:
