Home >> Ford >> 2002 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> Pinpoint Tests >> Headlamps >> Test D: Low Beams Are Inoperative

Test D: Low Beams Are Inoperative

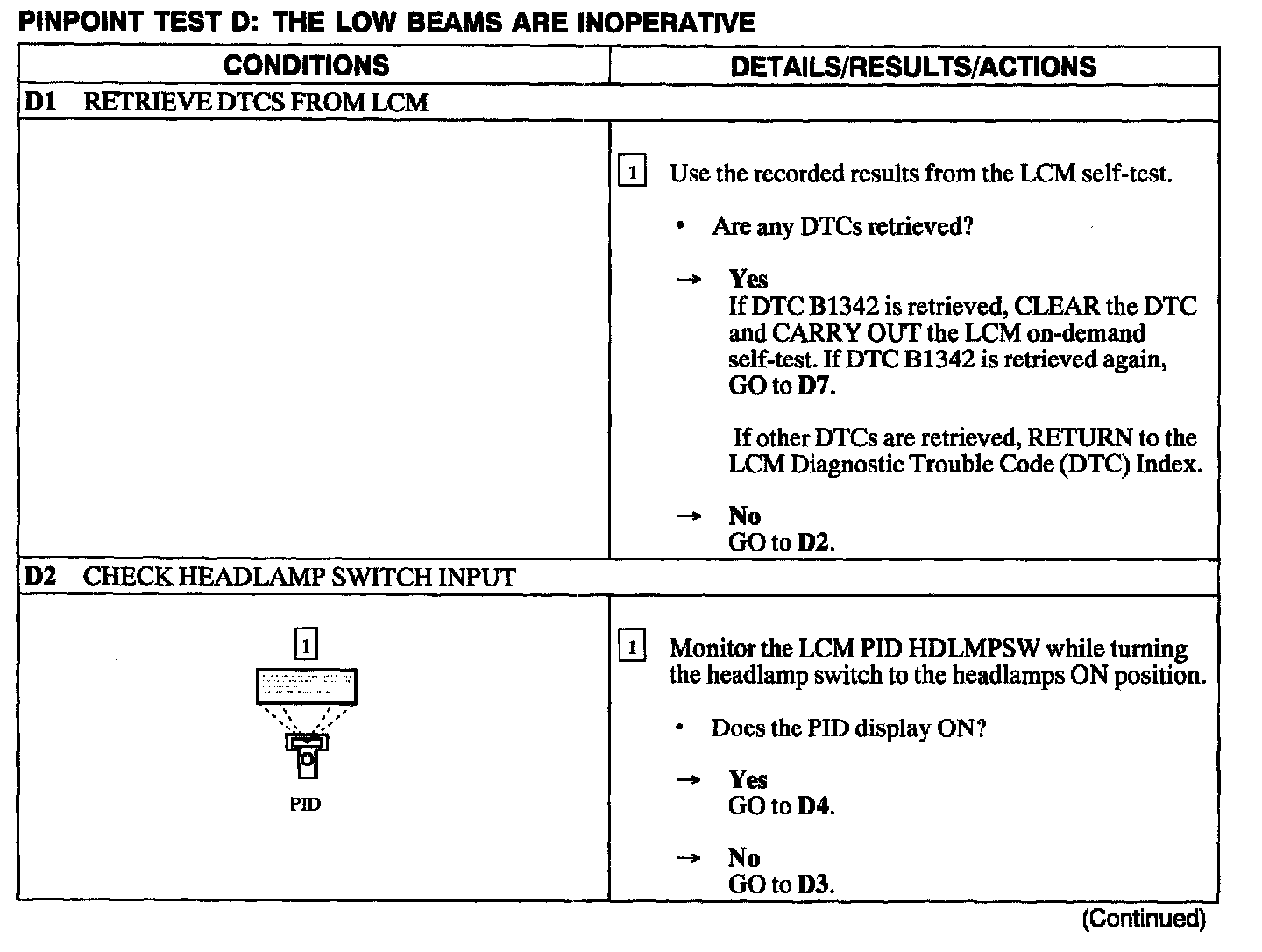

D1 - D2:

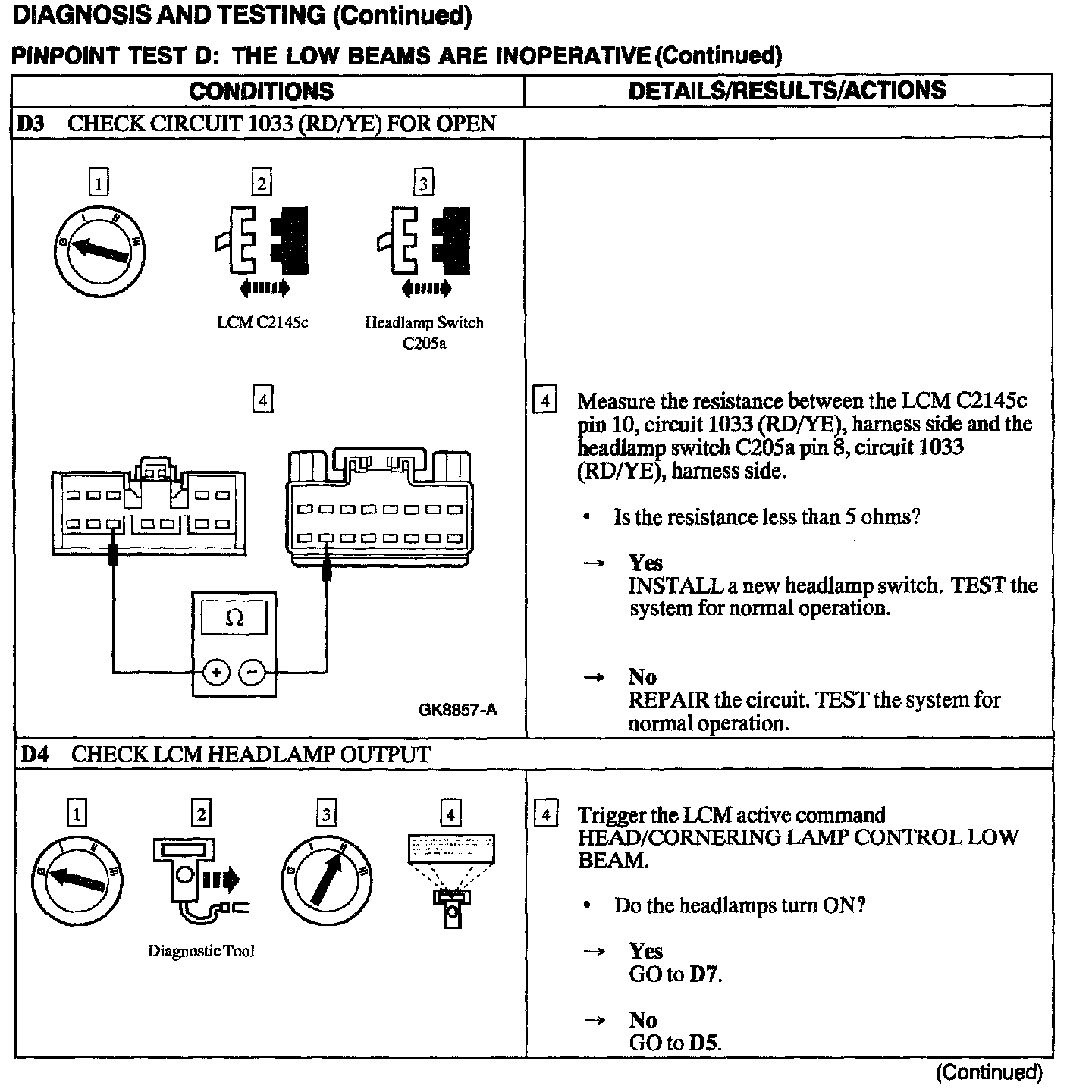

D3 - D4:

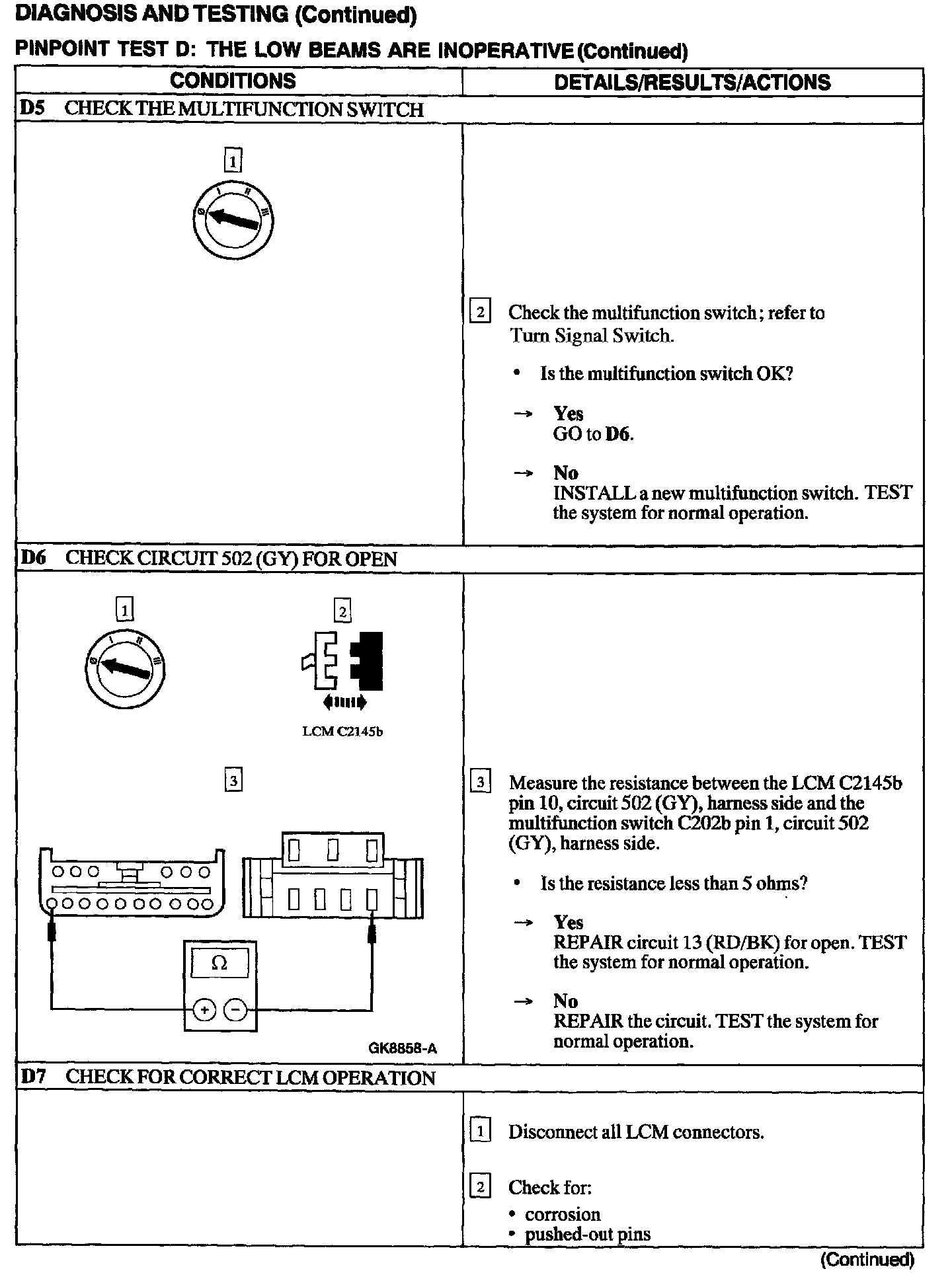

D5 - D7:

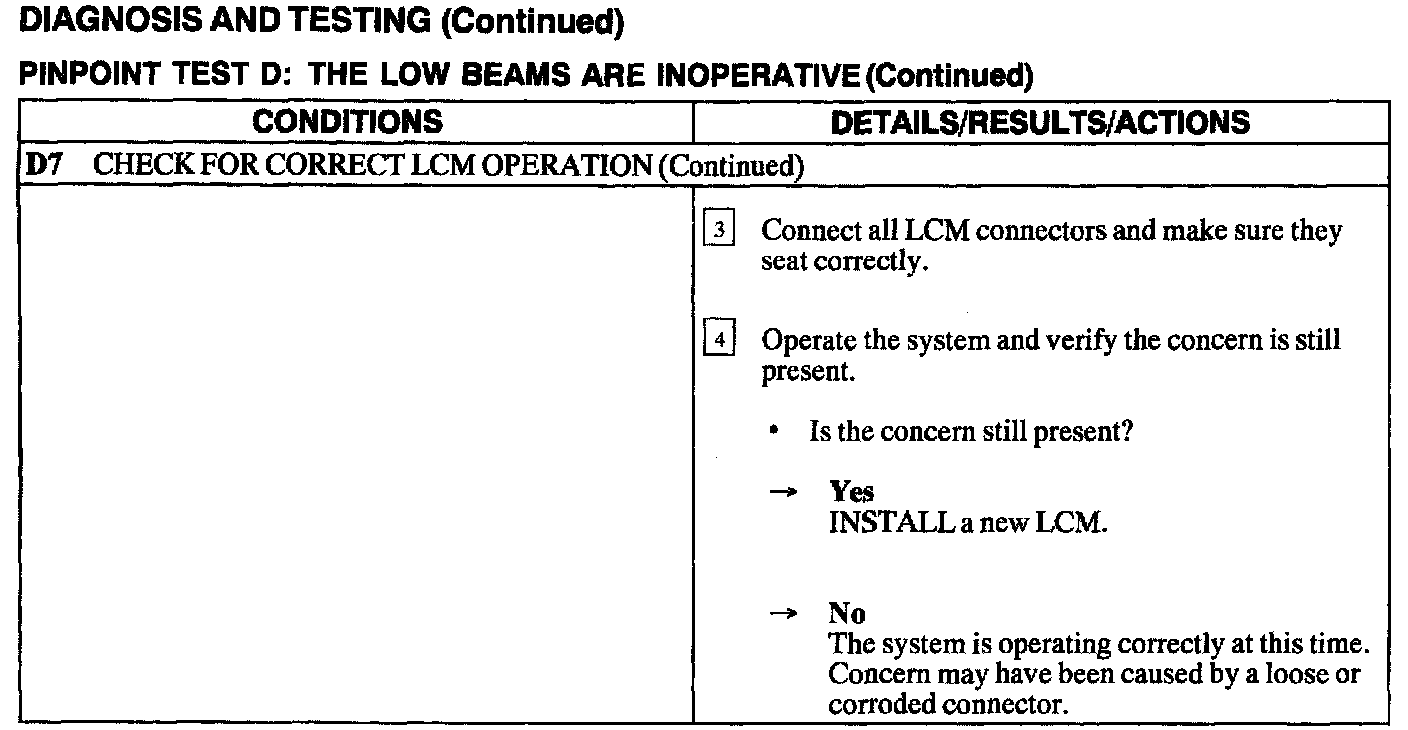

D7:
