Headlamp: Service and Repair

REMOVAL

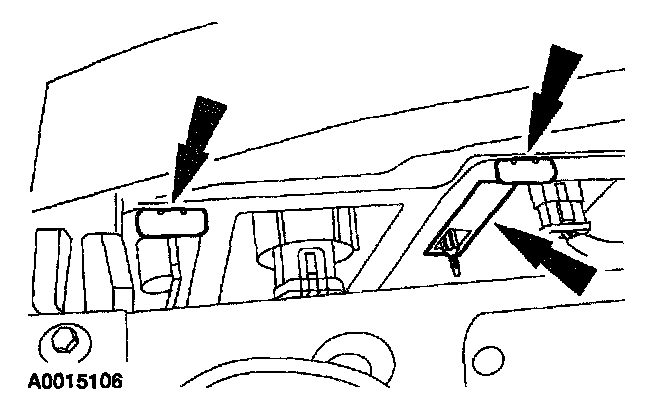

1. Remove the sight shield.
^ Twist the clips.

NOTE: Make sure that the headlamp switch and the ignition switch are in the OFF position.

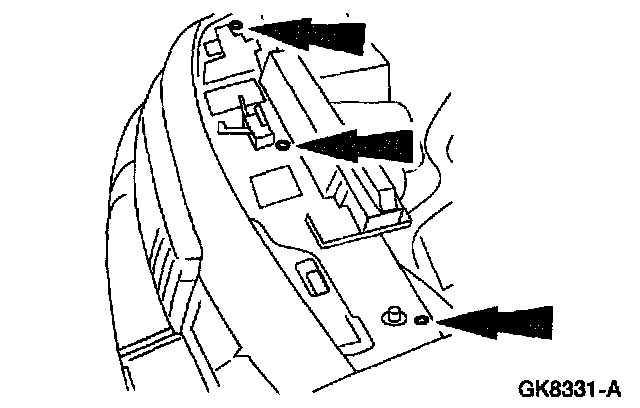

2. Remove the headlamp retainers.







3. Remove the headlamp assembly.

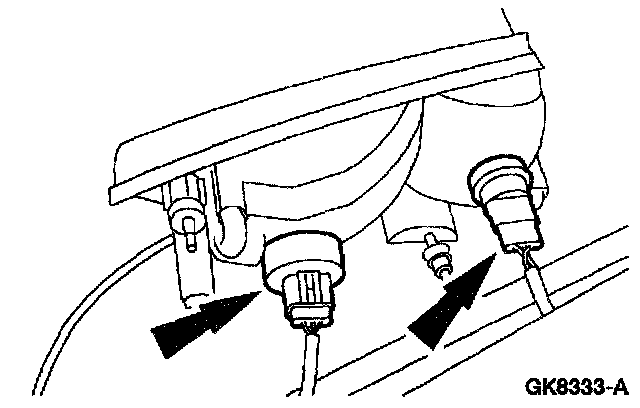

^ Disconnect the electrical connectors.

INSTALLATION
1. To install, reverse the removal procedure.
^ If necessary, adjust the headlamps.
