Home >> Ford >> 2002 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Testing and Inspection >> Pinpoint Tests >> Test L: B1872: Turn/Hazard Power Feed Circuit Short To Battery

Test L: B1872: Turn/Hazard Power Feed Circuit Short To Battery

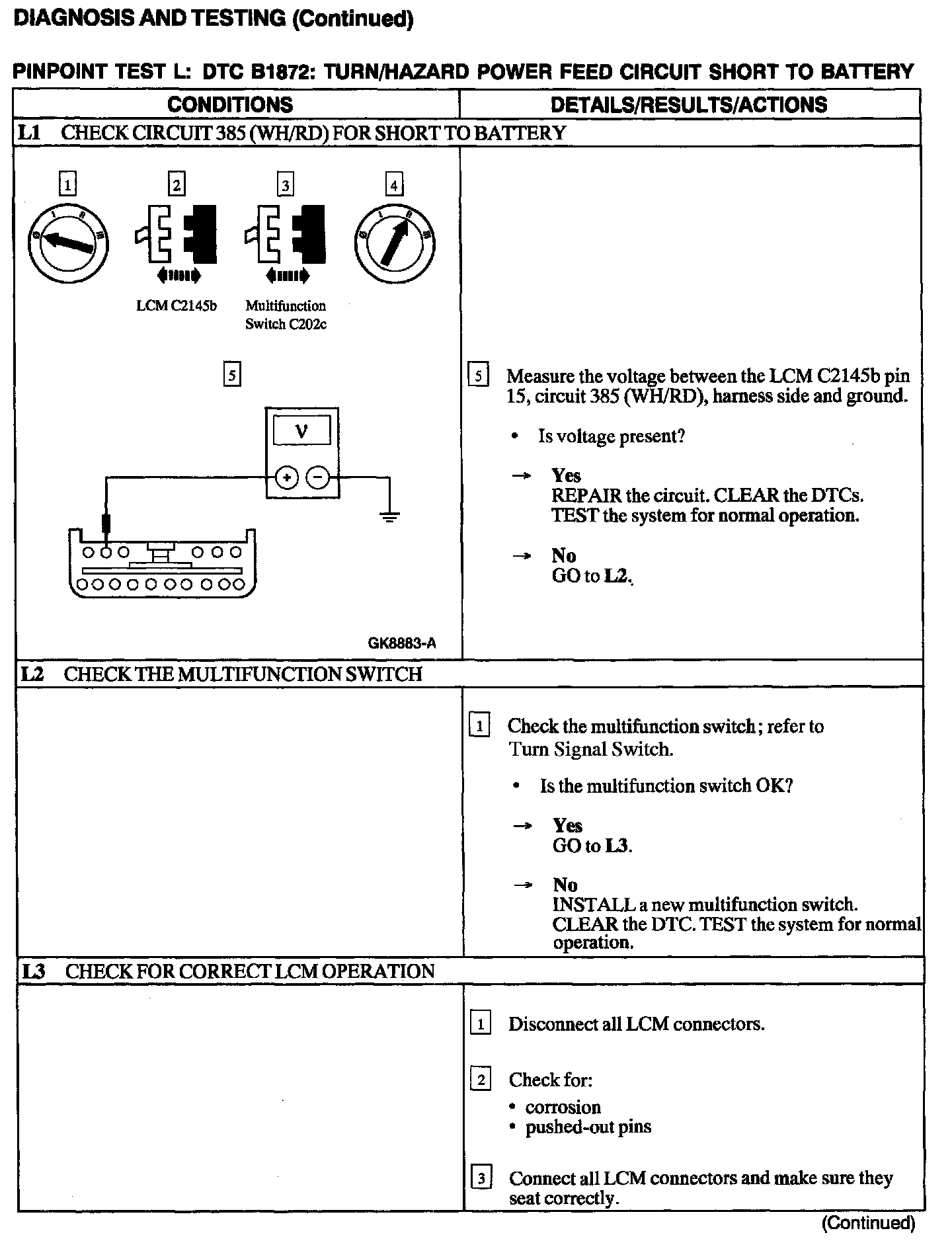

L1 - L3:

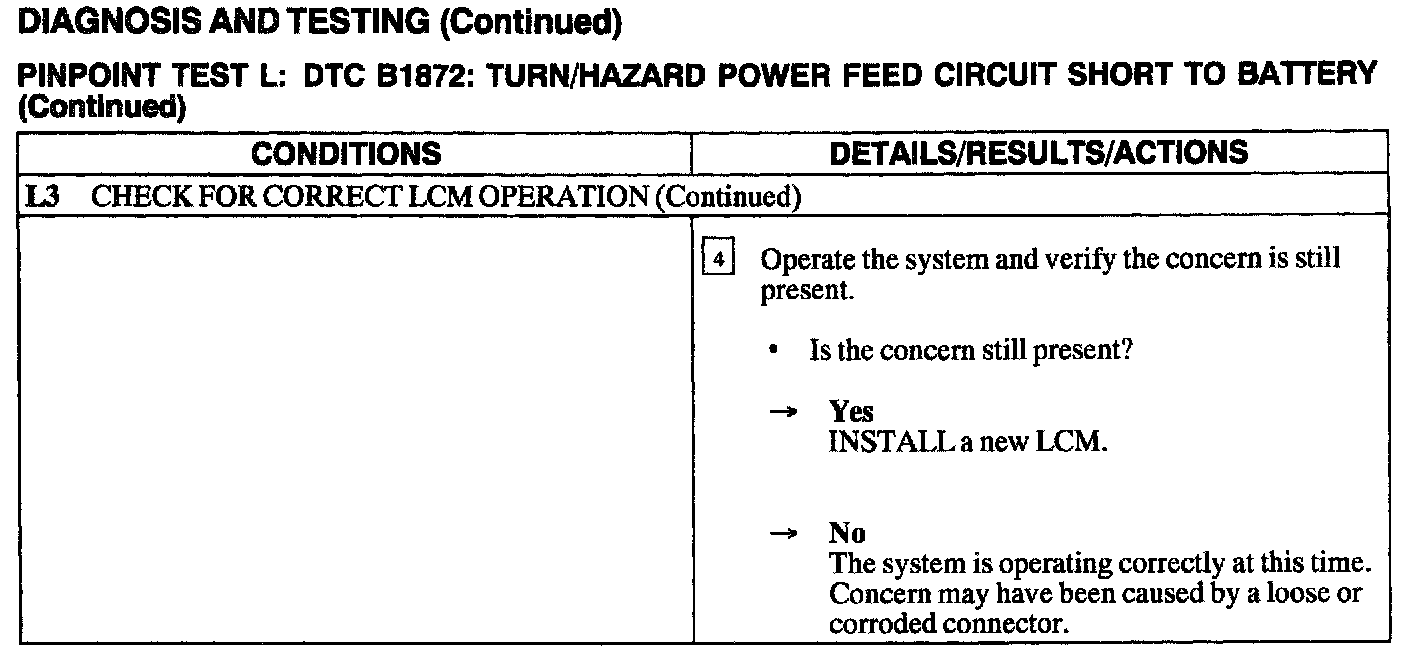

L3:
