Home >> Ford >> 2002 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Testing and Inspection >> Pinpoint Tests >> Test M: B1873: Turn Signal/Hazard Power Feed Circuit Short To Ground

Test M: B1873: Turn Signal/Hazard Power Feed Circuit Short To Ground

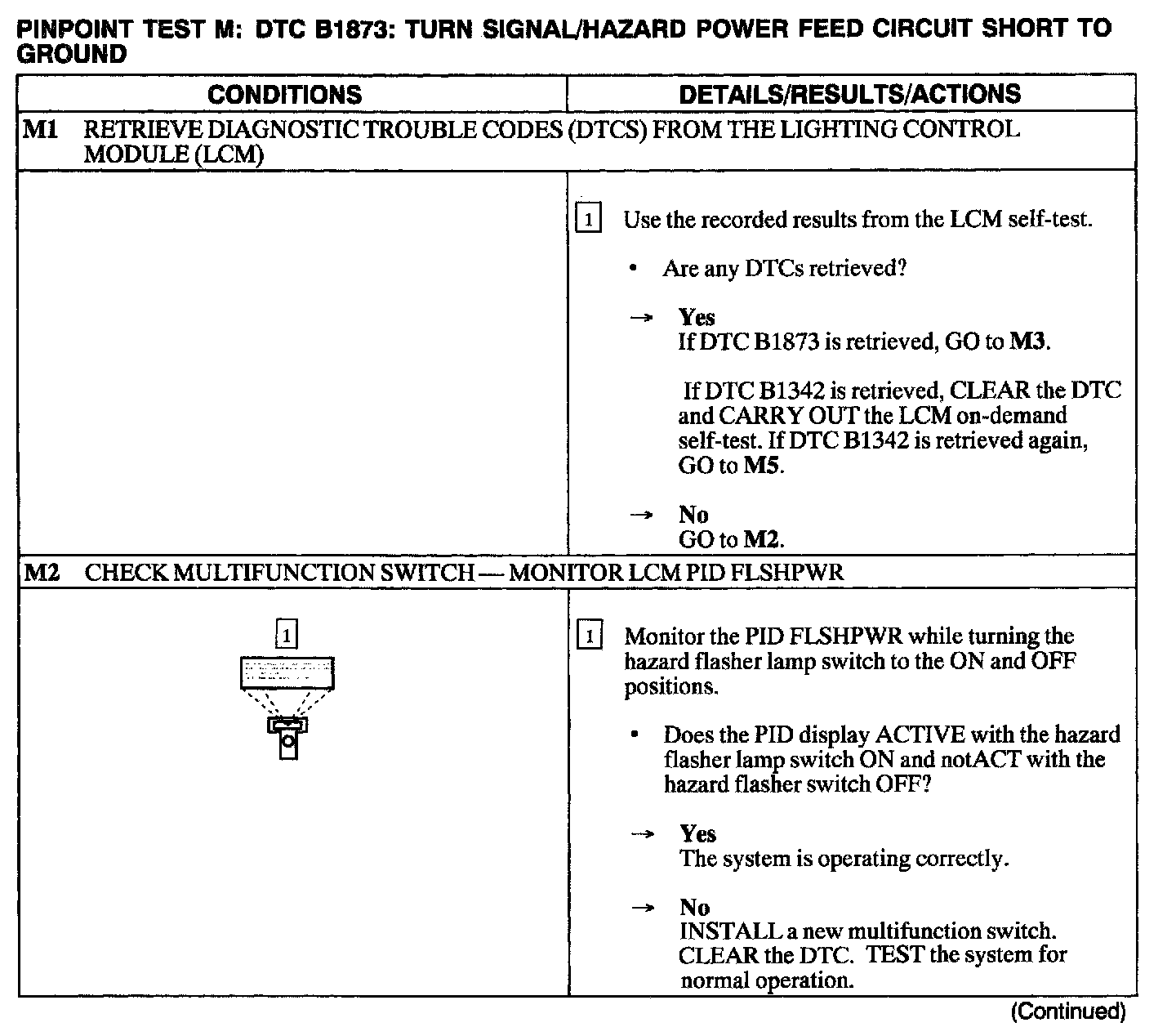

M1 - M2:

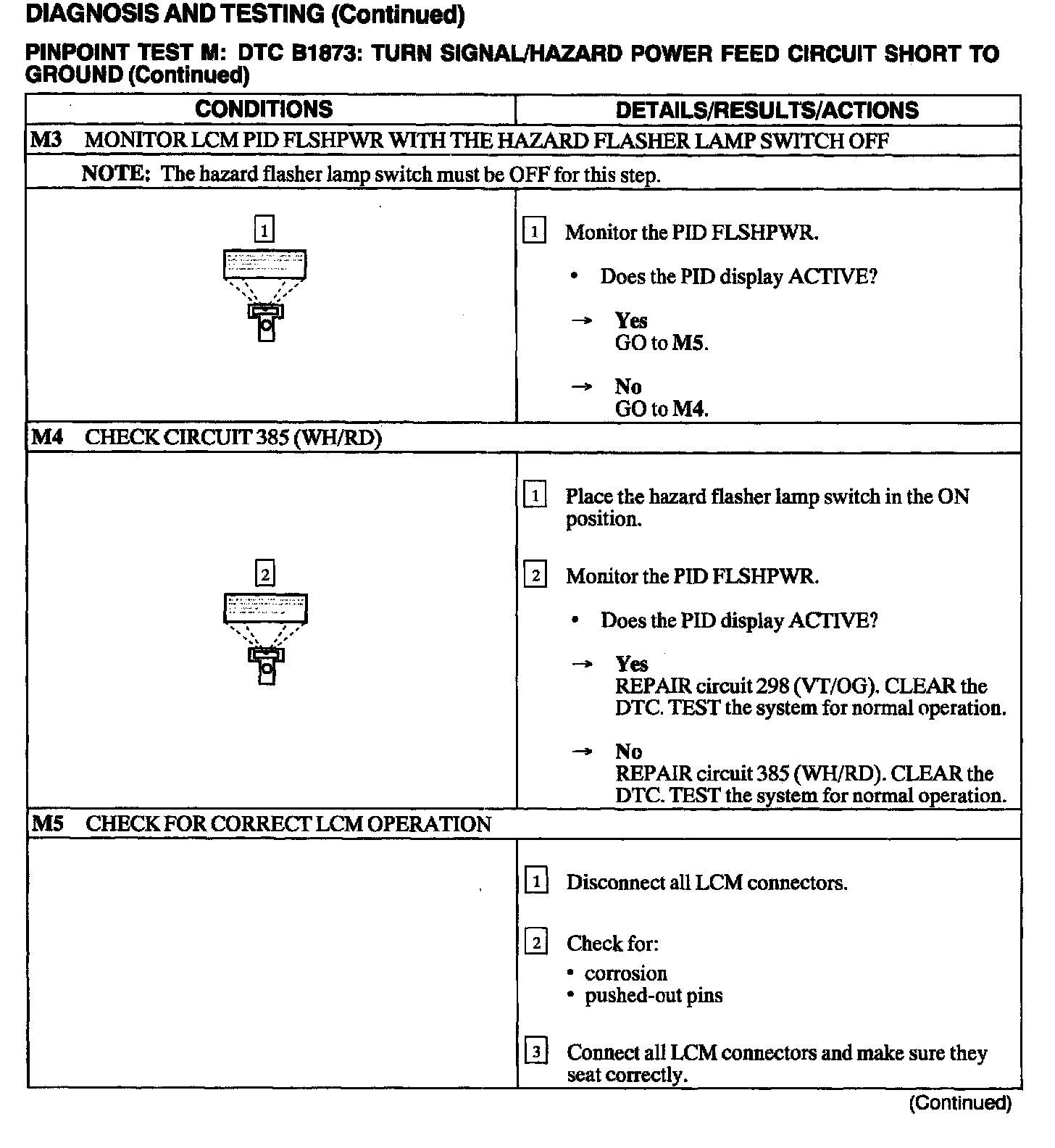

M3 - M5:

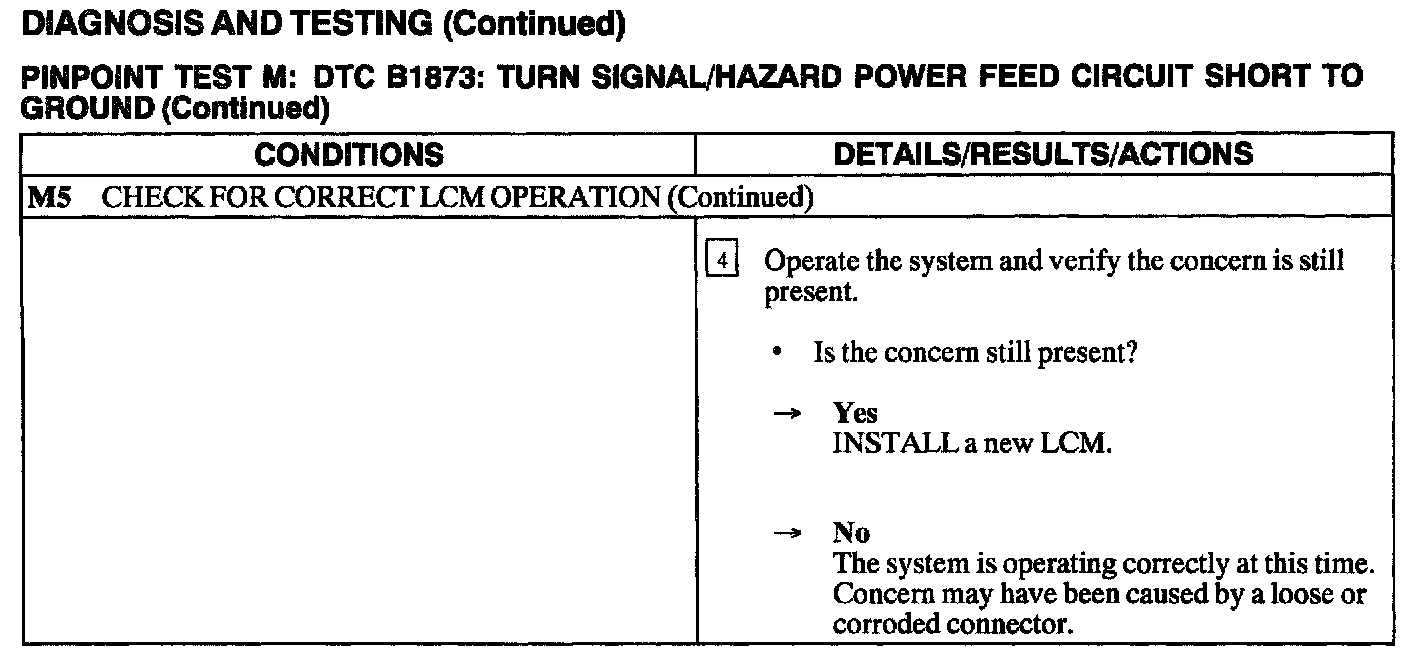

M5:
