LEMON Manuals: Even more car manuals for everyone: 1960-2025
Home >> Ford >> 2002 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Noise, Vibration, and Harshness Diagnosis >> Pinpoint Tests >> Test K: High Speed Shake Or Shimmy Diagnosis

Test K: High Speed Shake Or Shimmy Diagnosis

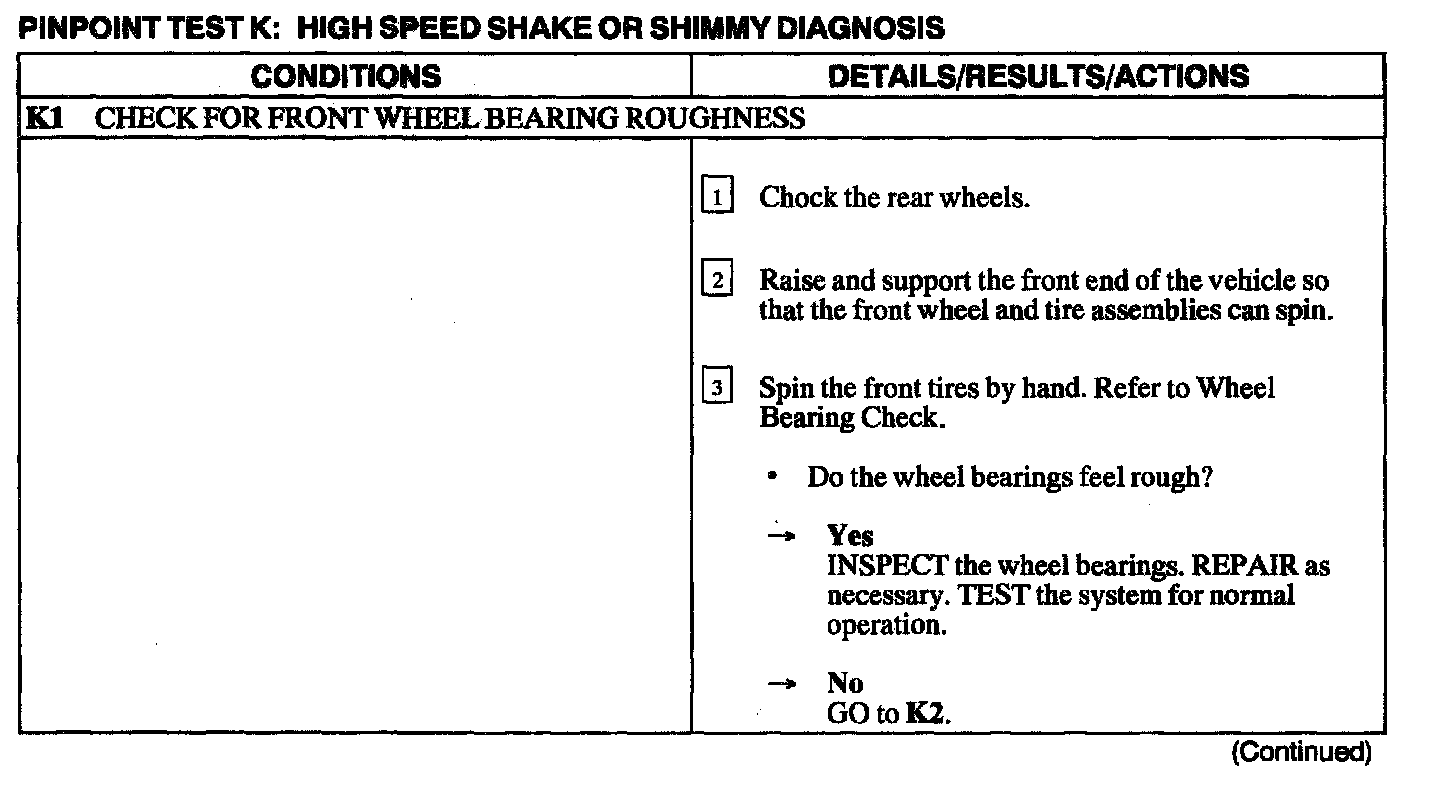

K1:

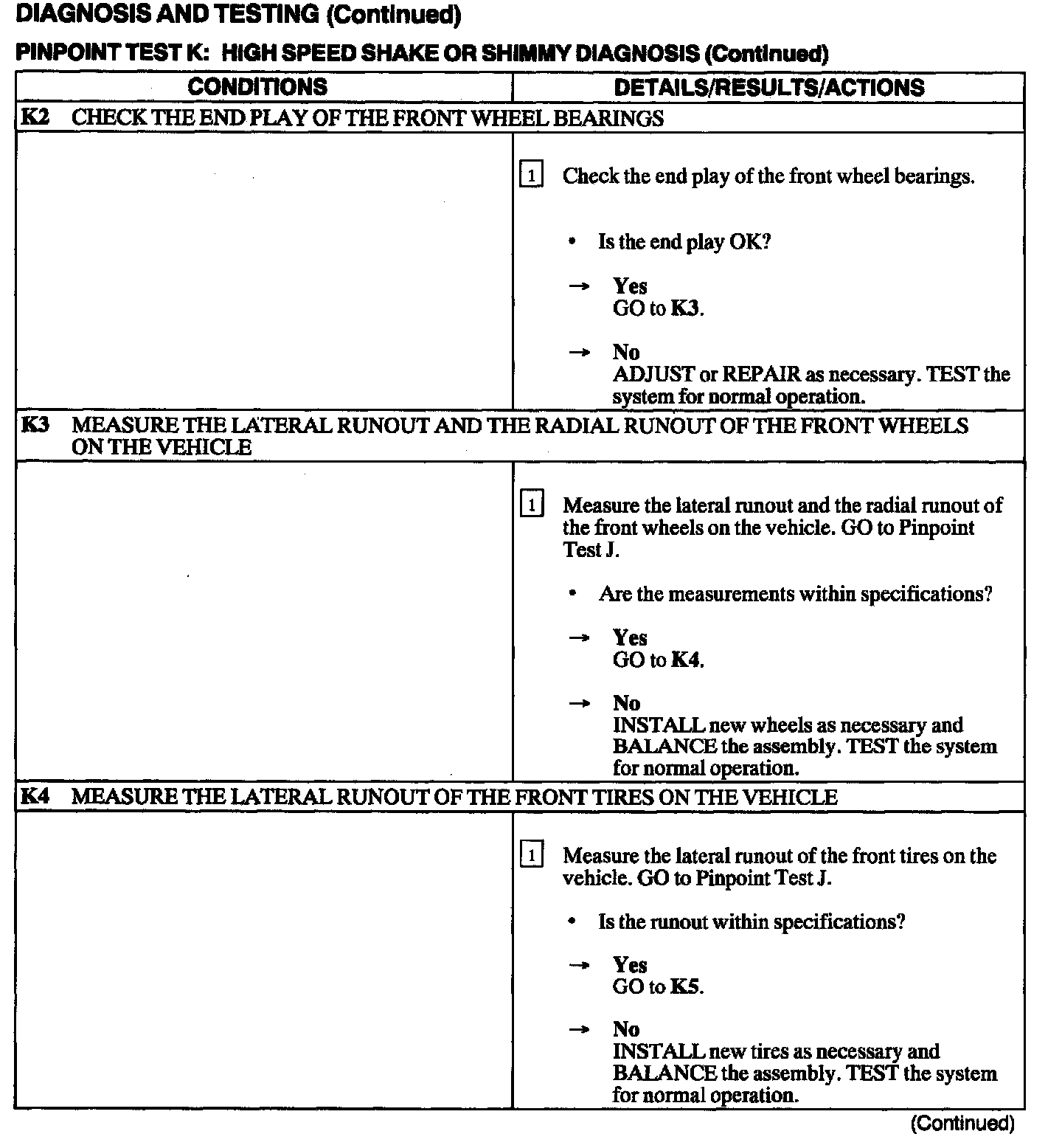

K2 - K4:

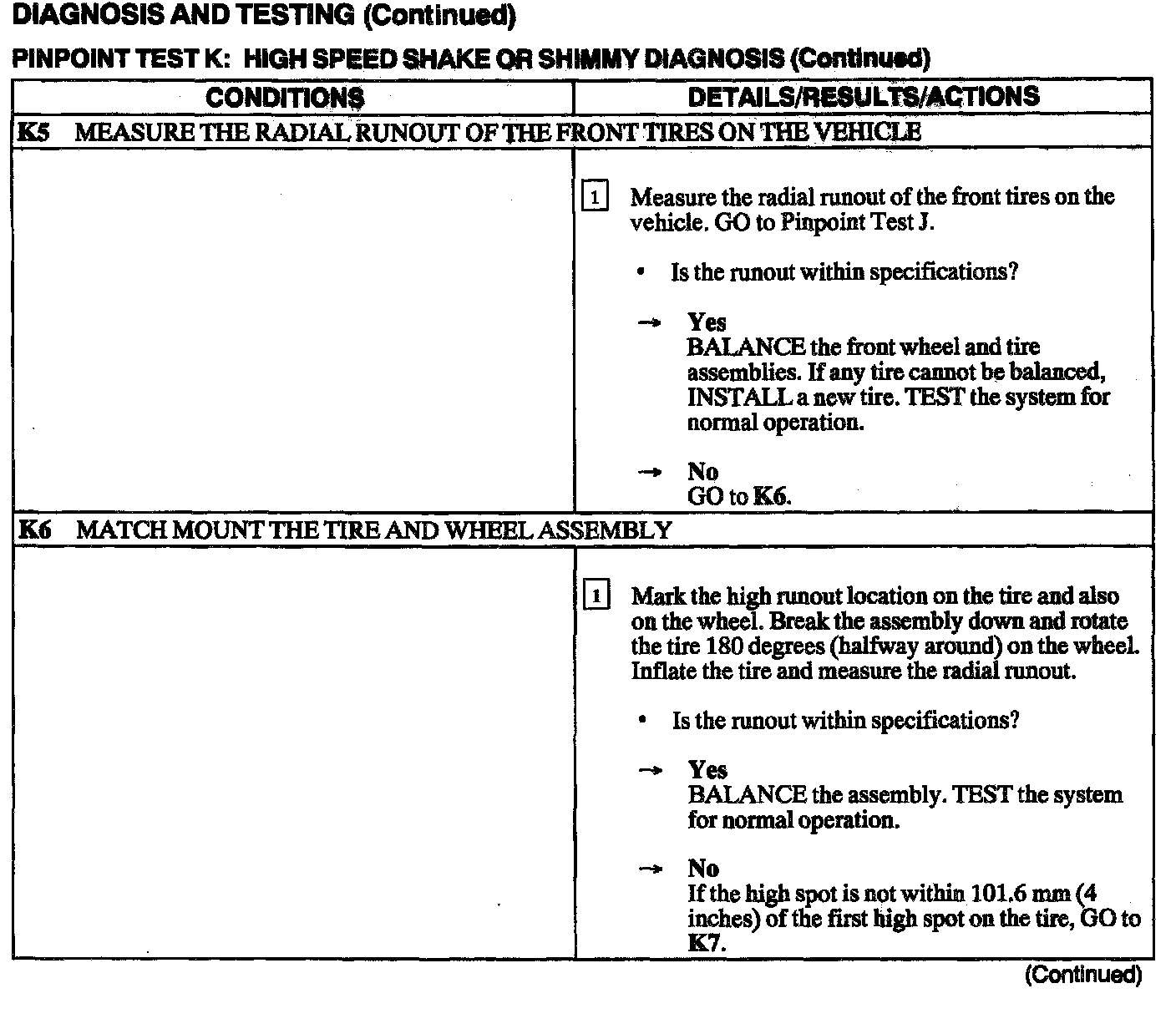

K5 - K6:

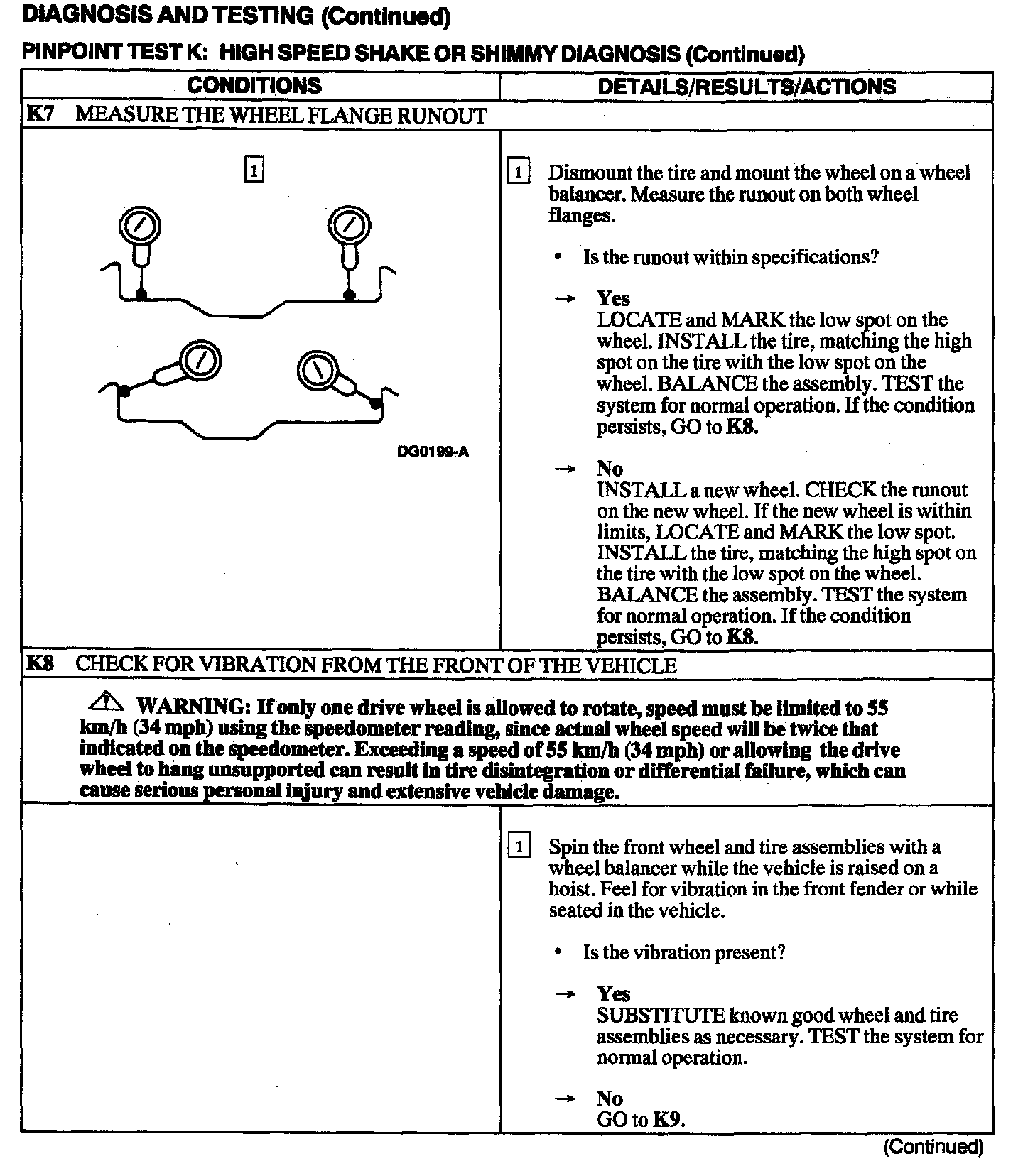

K7 - K8:

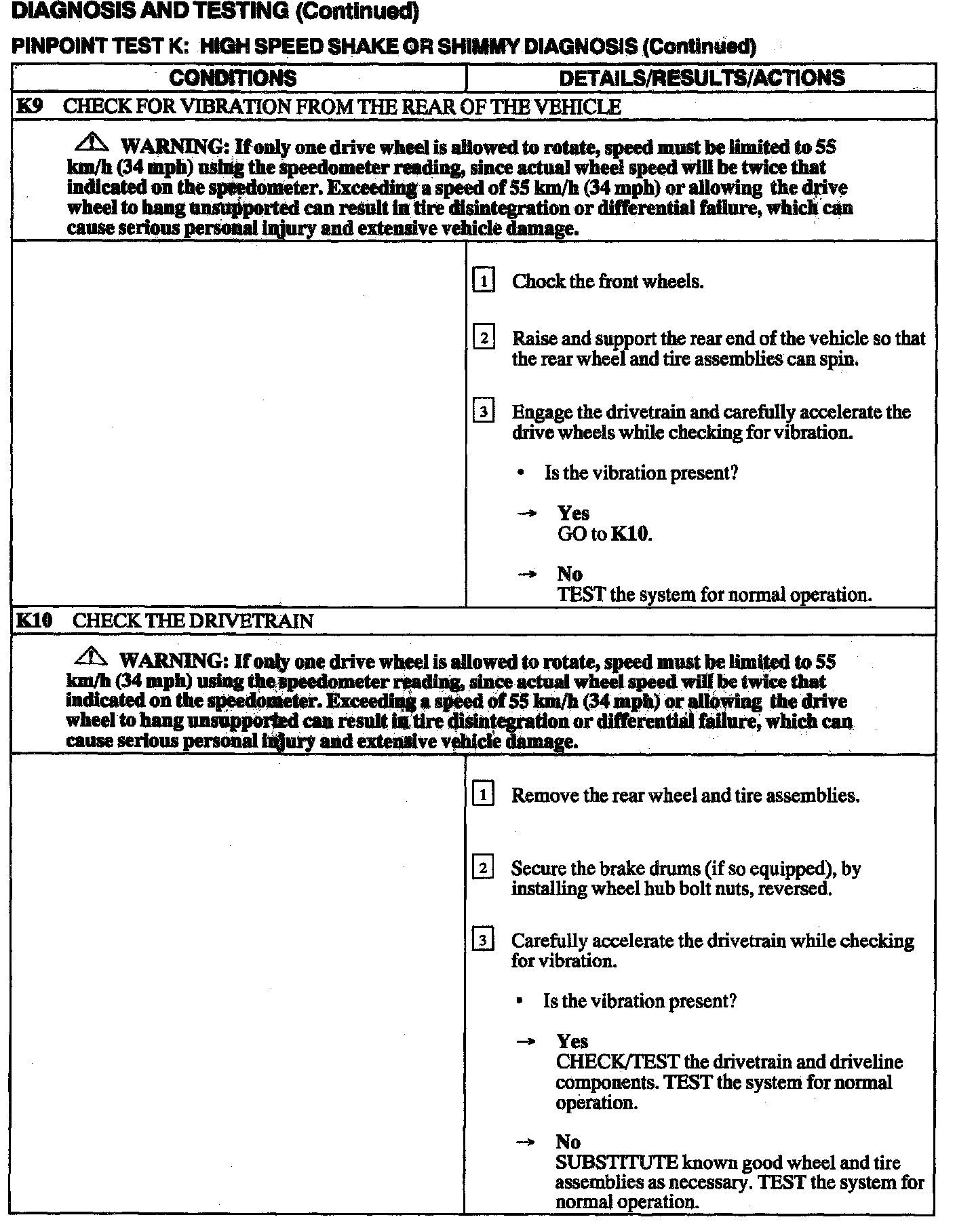

K9 - K10:
