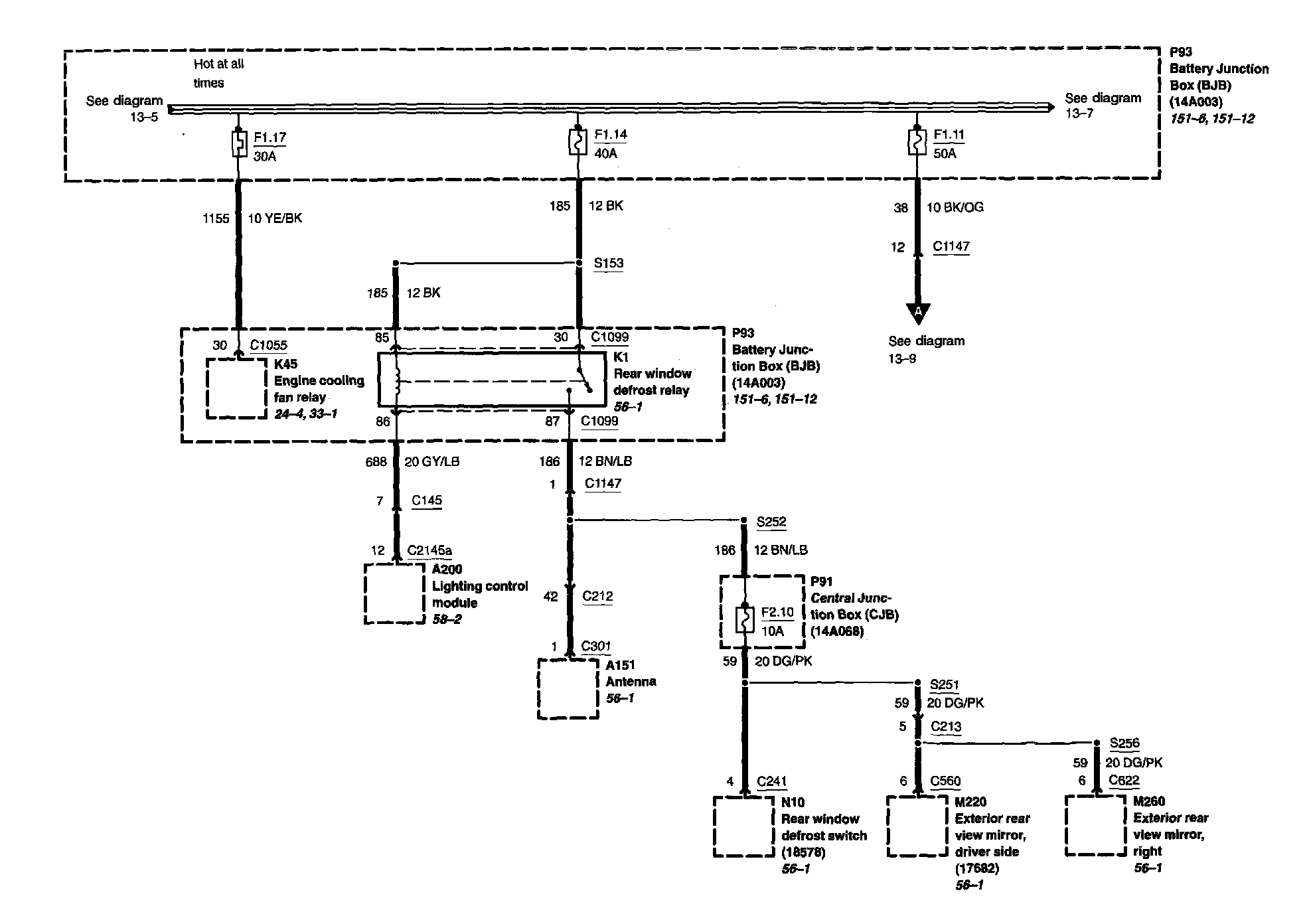

Power Distribution Diagrams

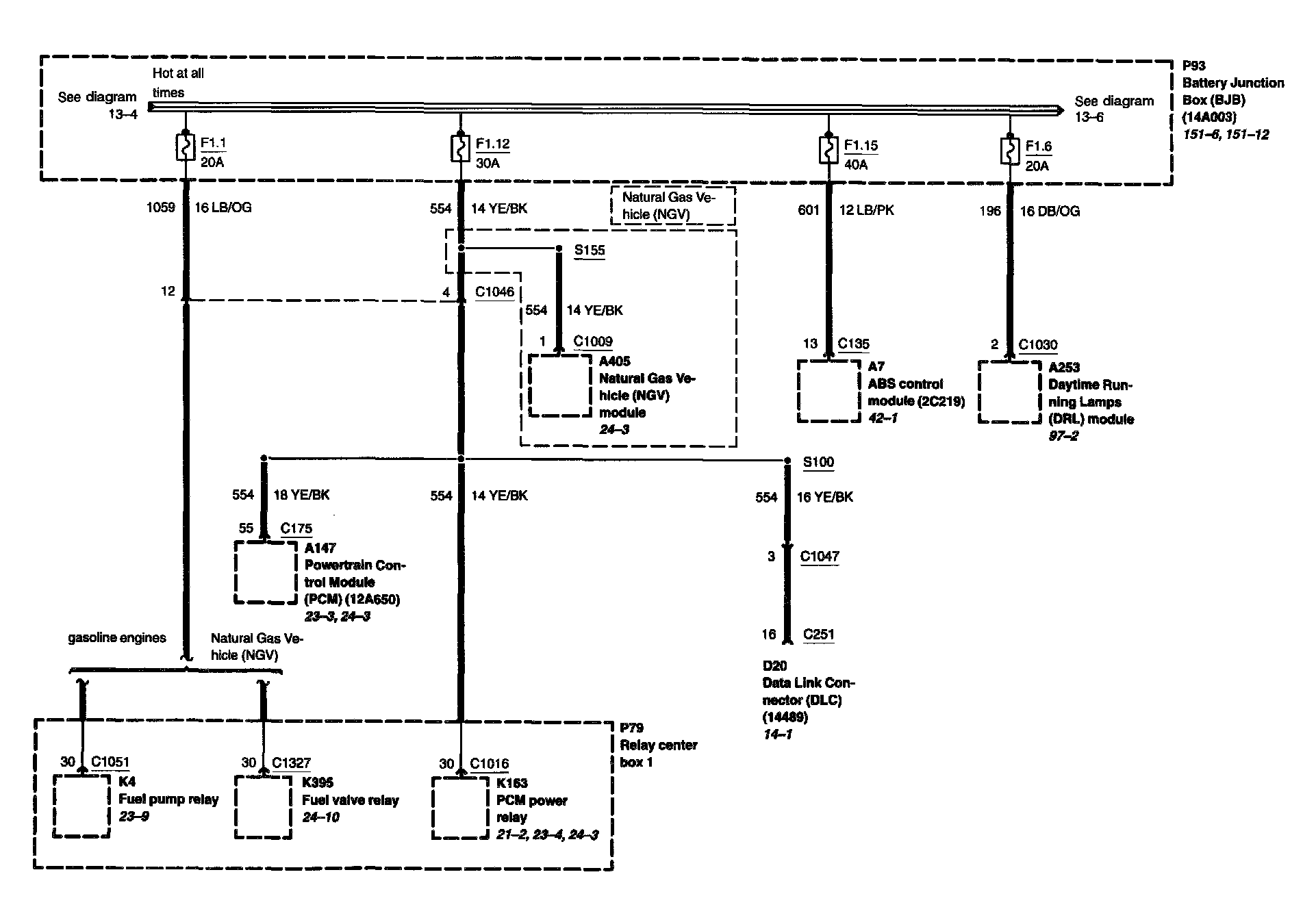

Diagram 13-1:

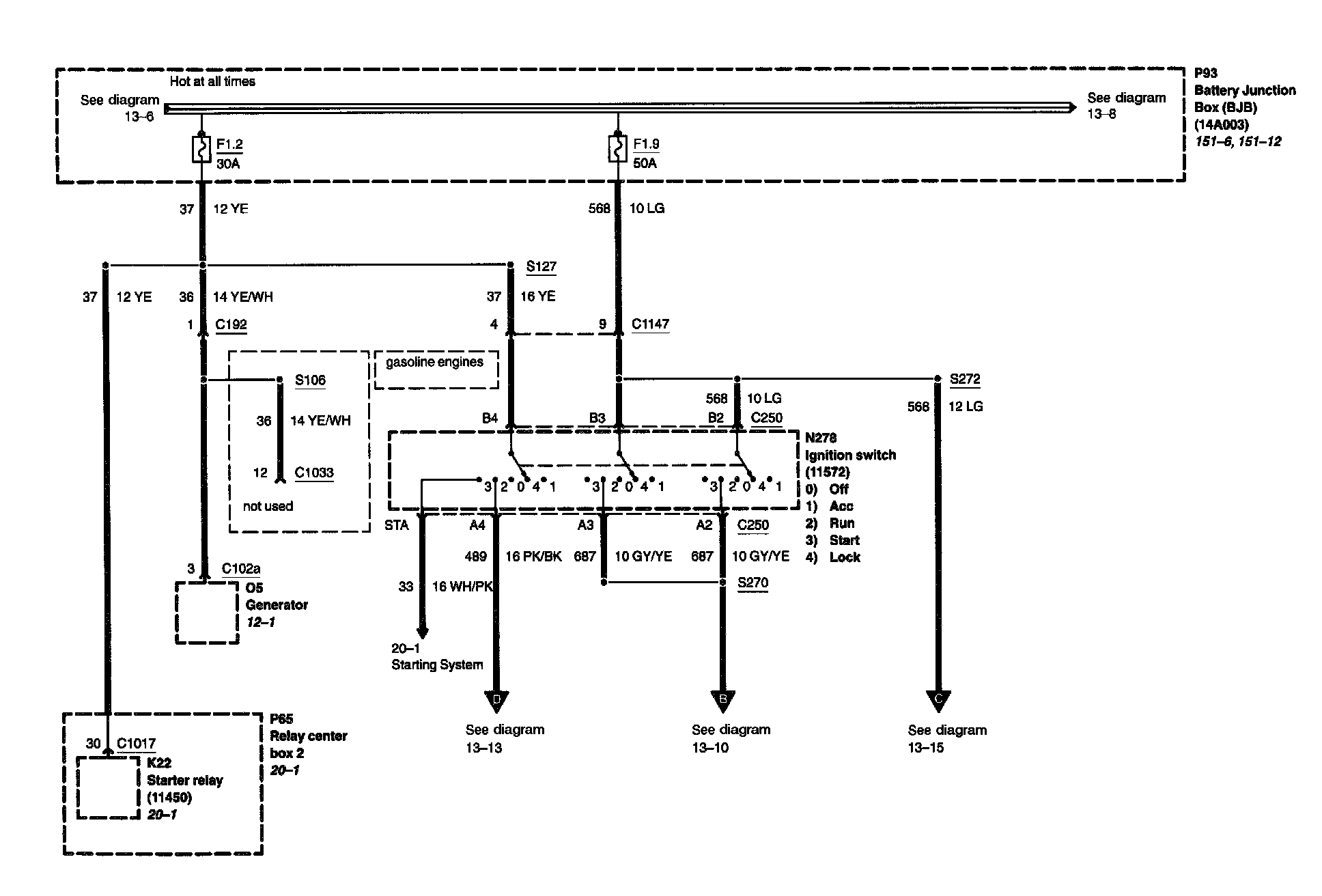

Diagram 13-2:

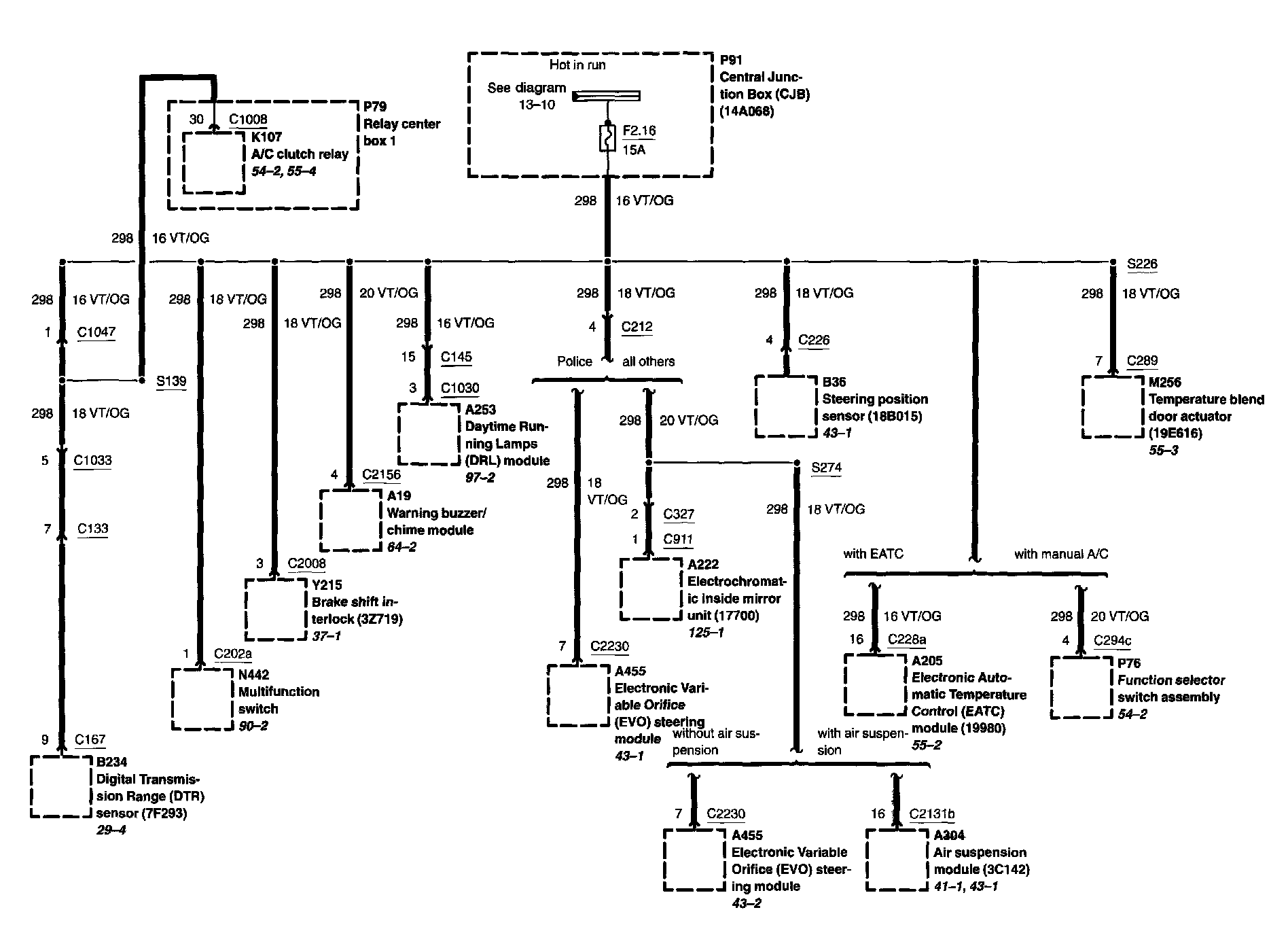

Diagram 13-3:

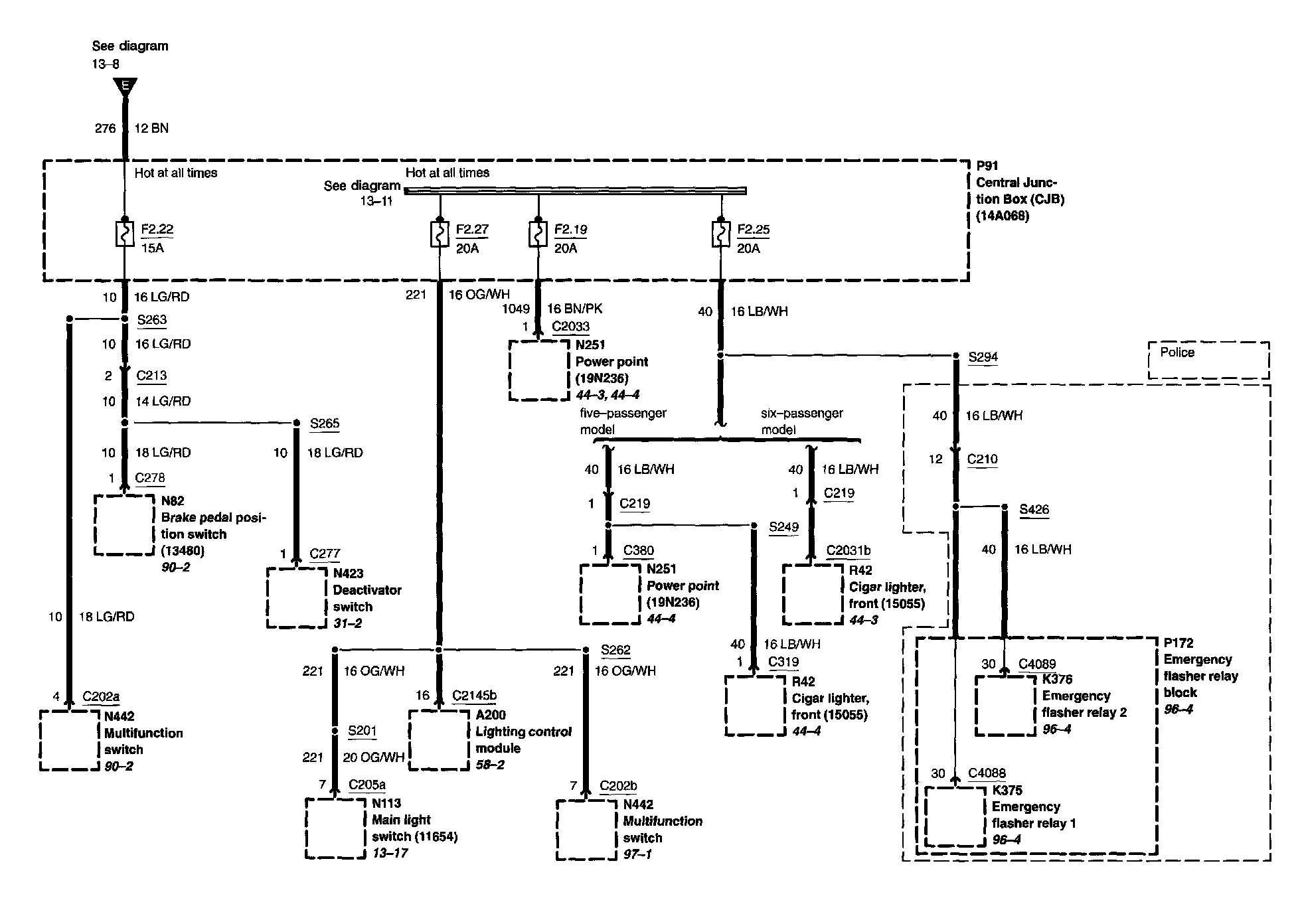

Diagram 13-4:

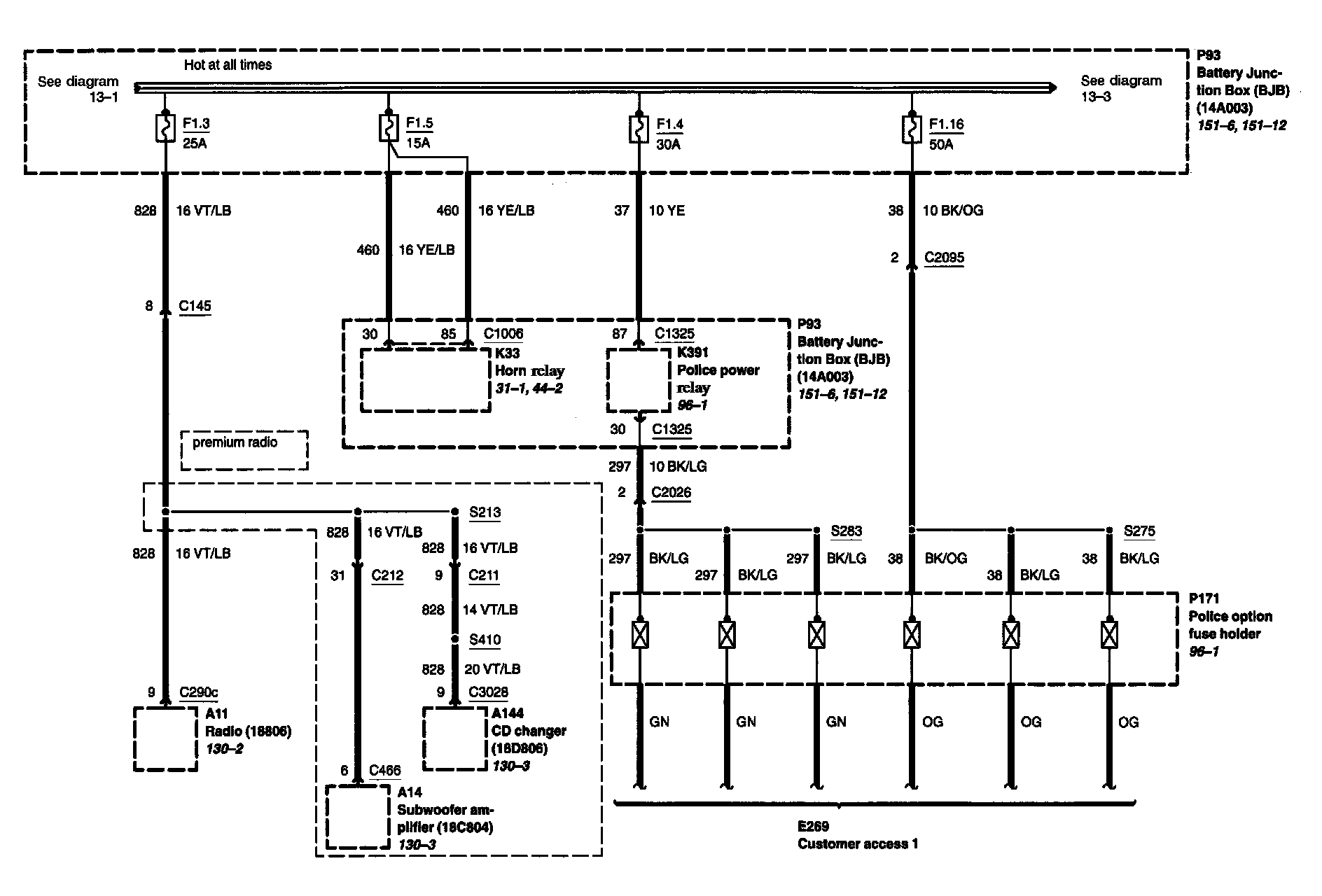

Diagram 13-5:

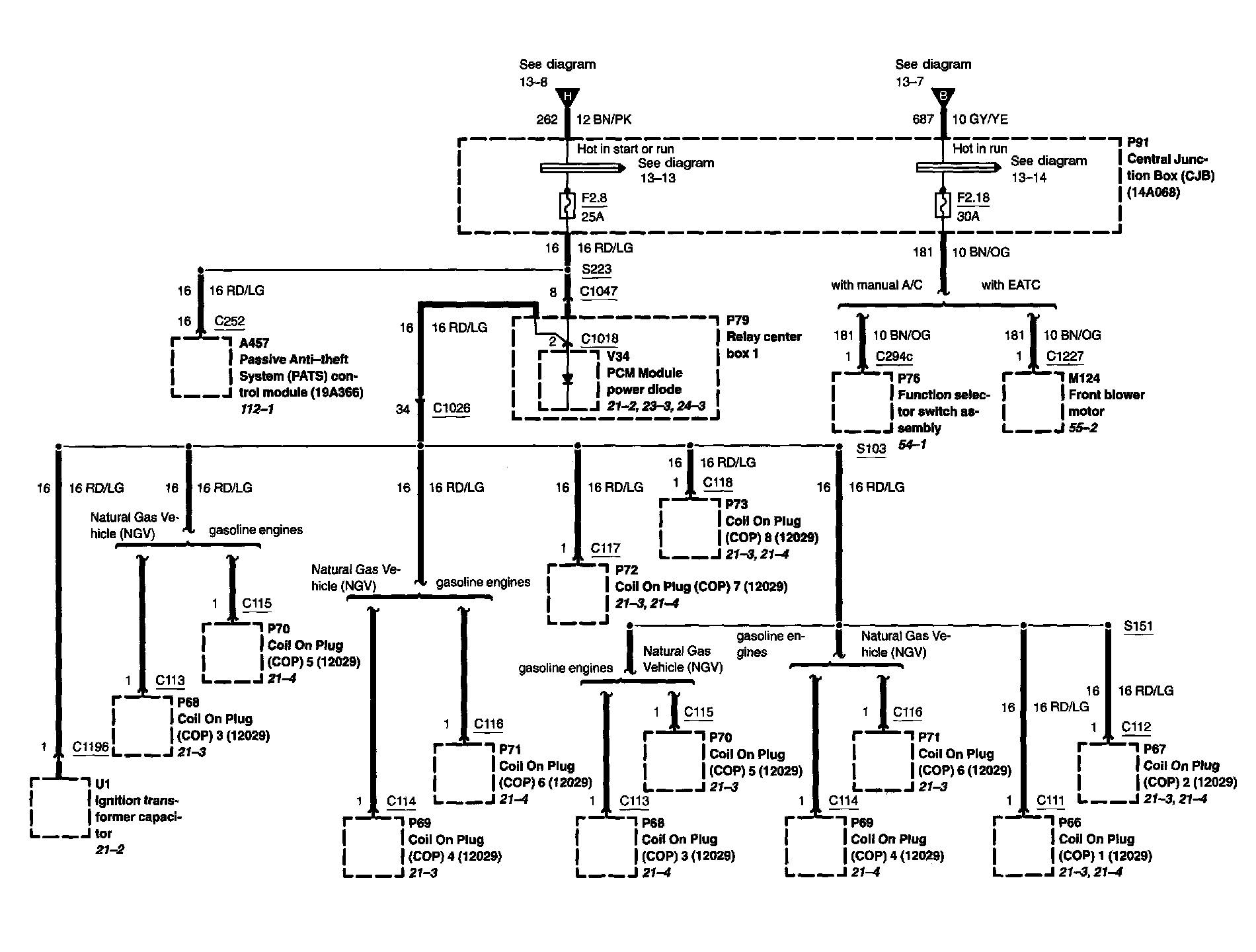

Diagram 13-6:

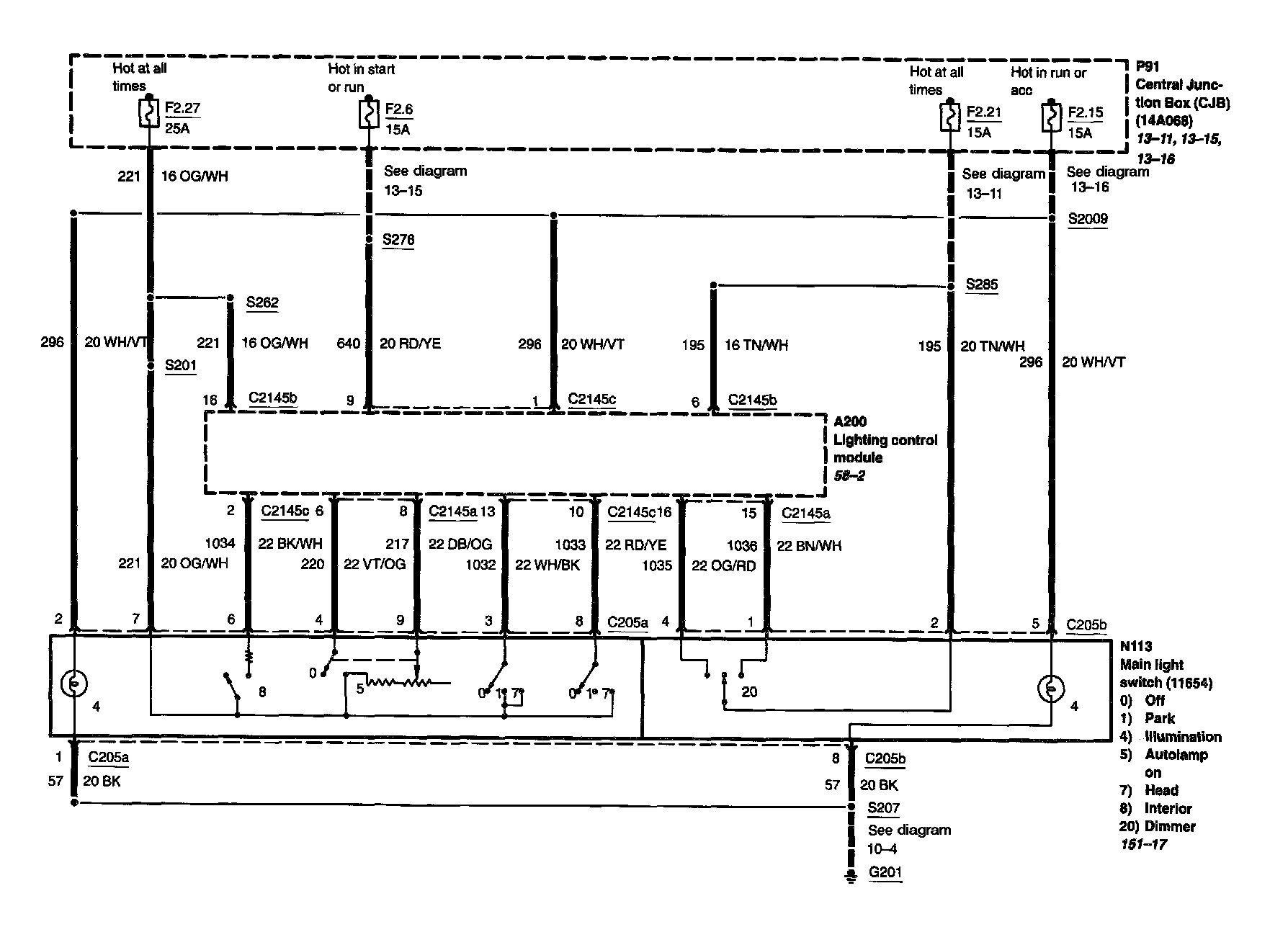

Diagram 13-7:

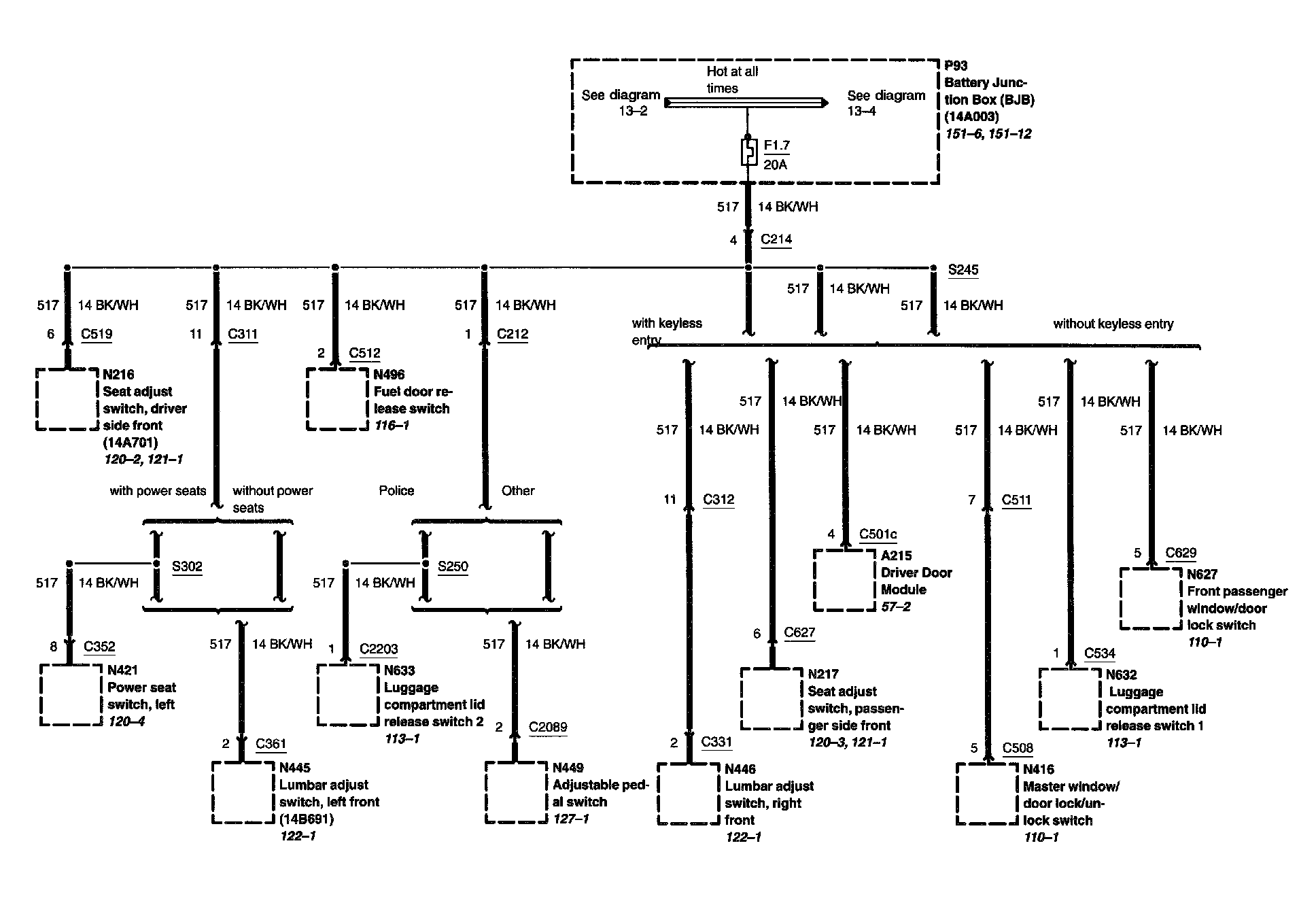

Diagram 13-8:

Diagram 13-9:

Diagram 13-10:

Diagram 13-11:

Diagram 13-12:

Diagram 13-13:

Diagram 13-14:

Diagram 13-15:

Diagram 13-16:

Diagram 13-17:
