Home >> Ford >> 2002 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc

Radio, Stereo, and Compact Disc

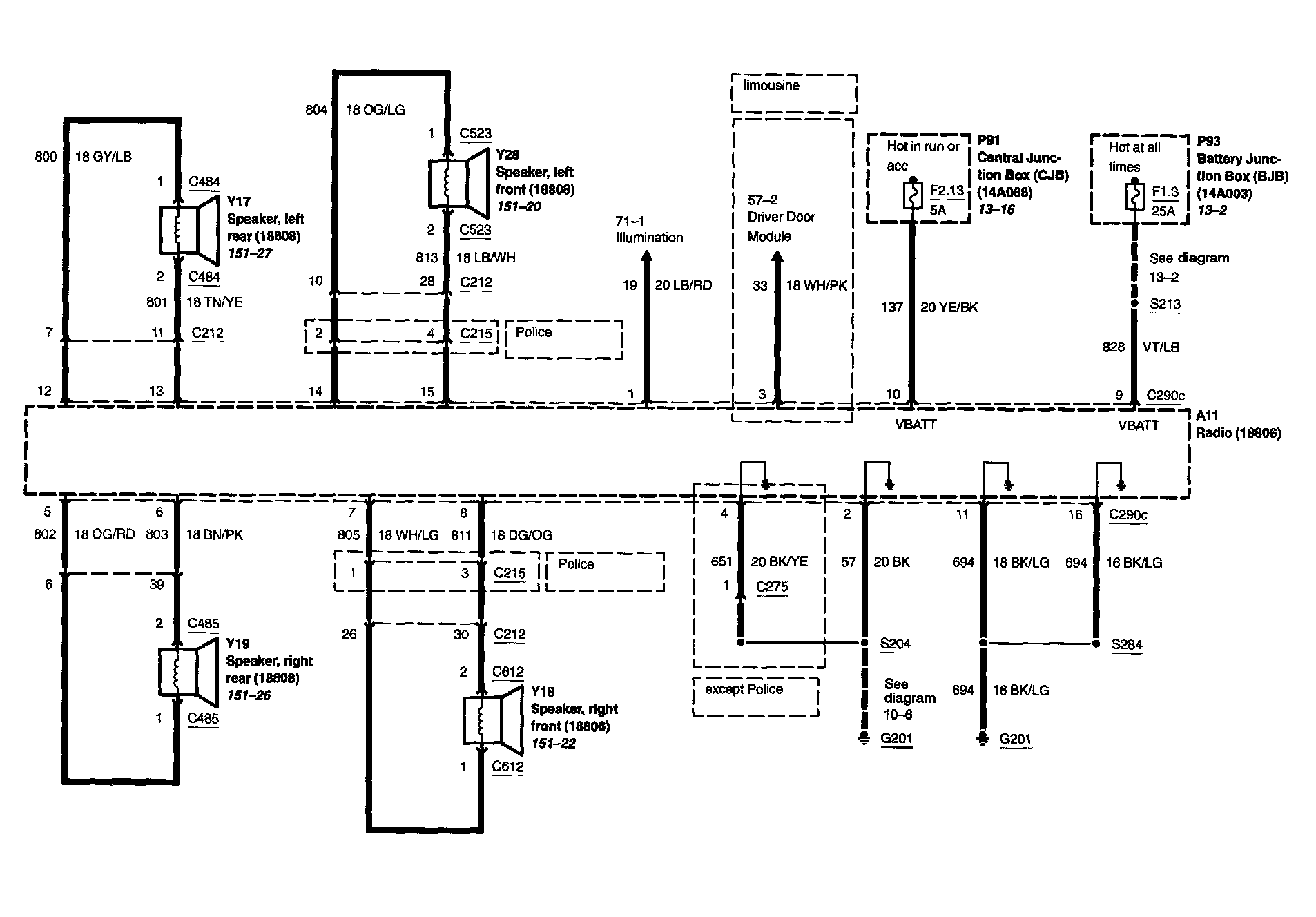

Diagram 130-1:

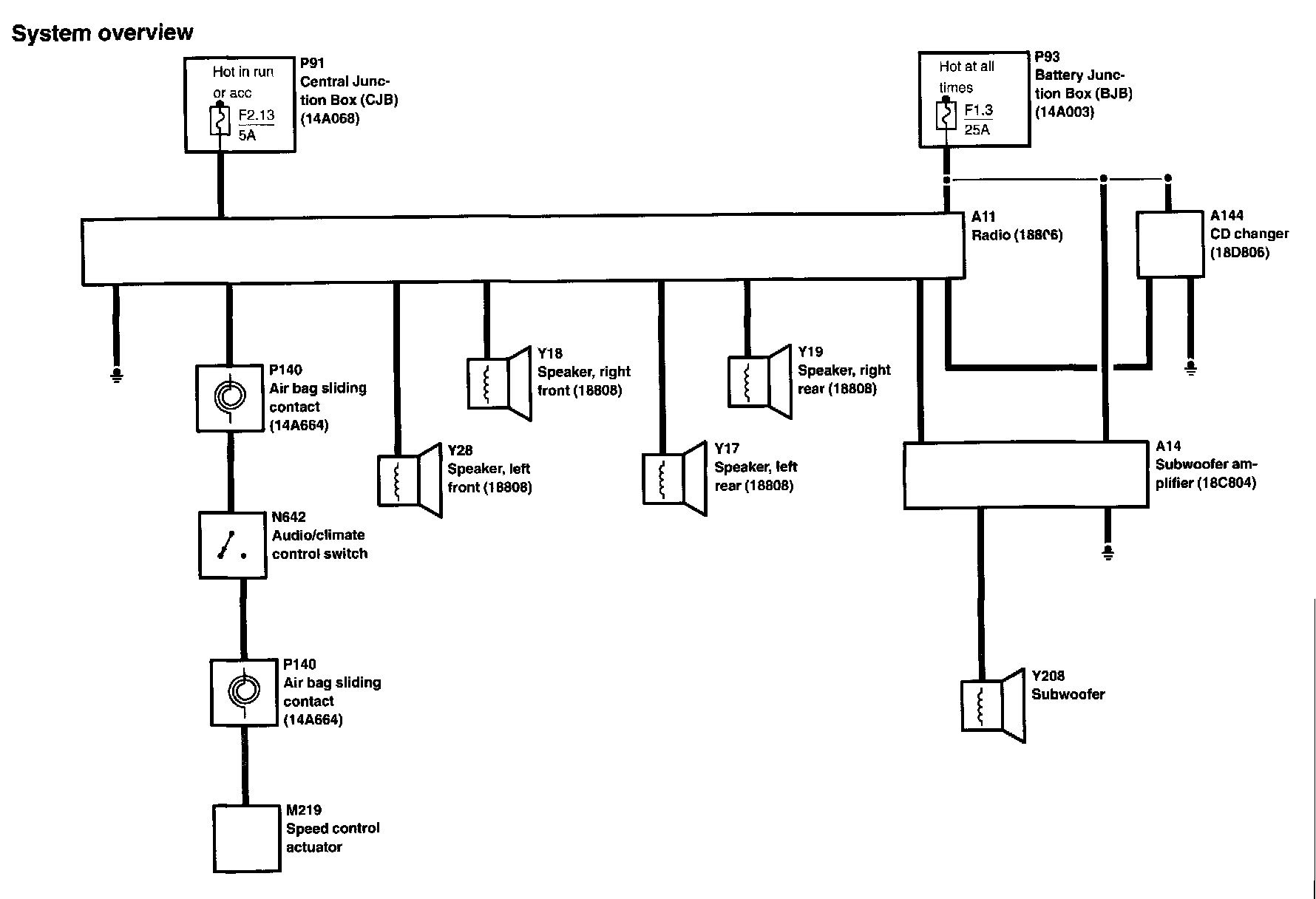

Diagram 130-2:

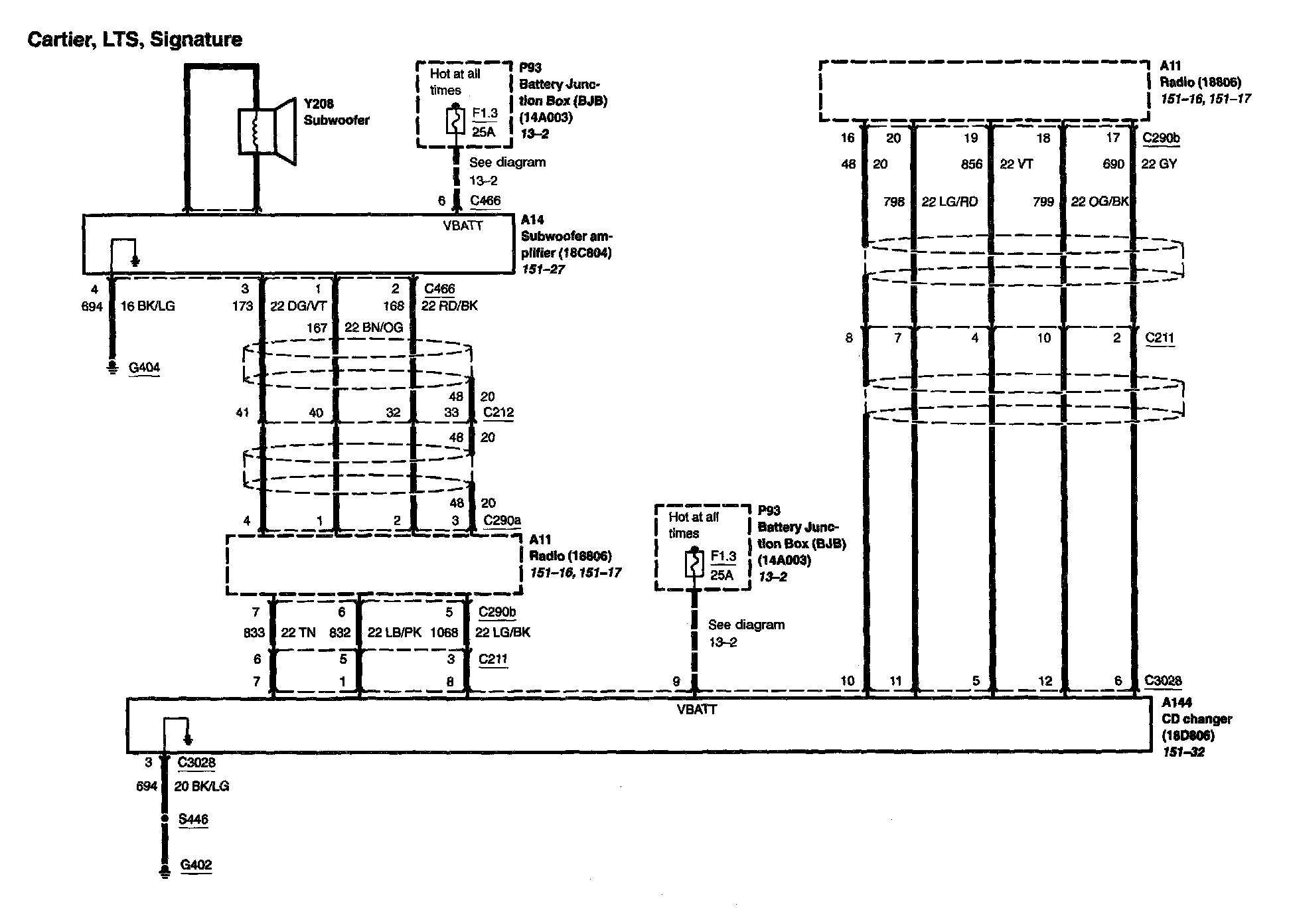

Diagram 130-3:

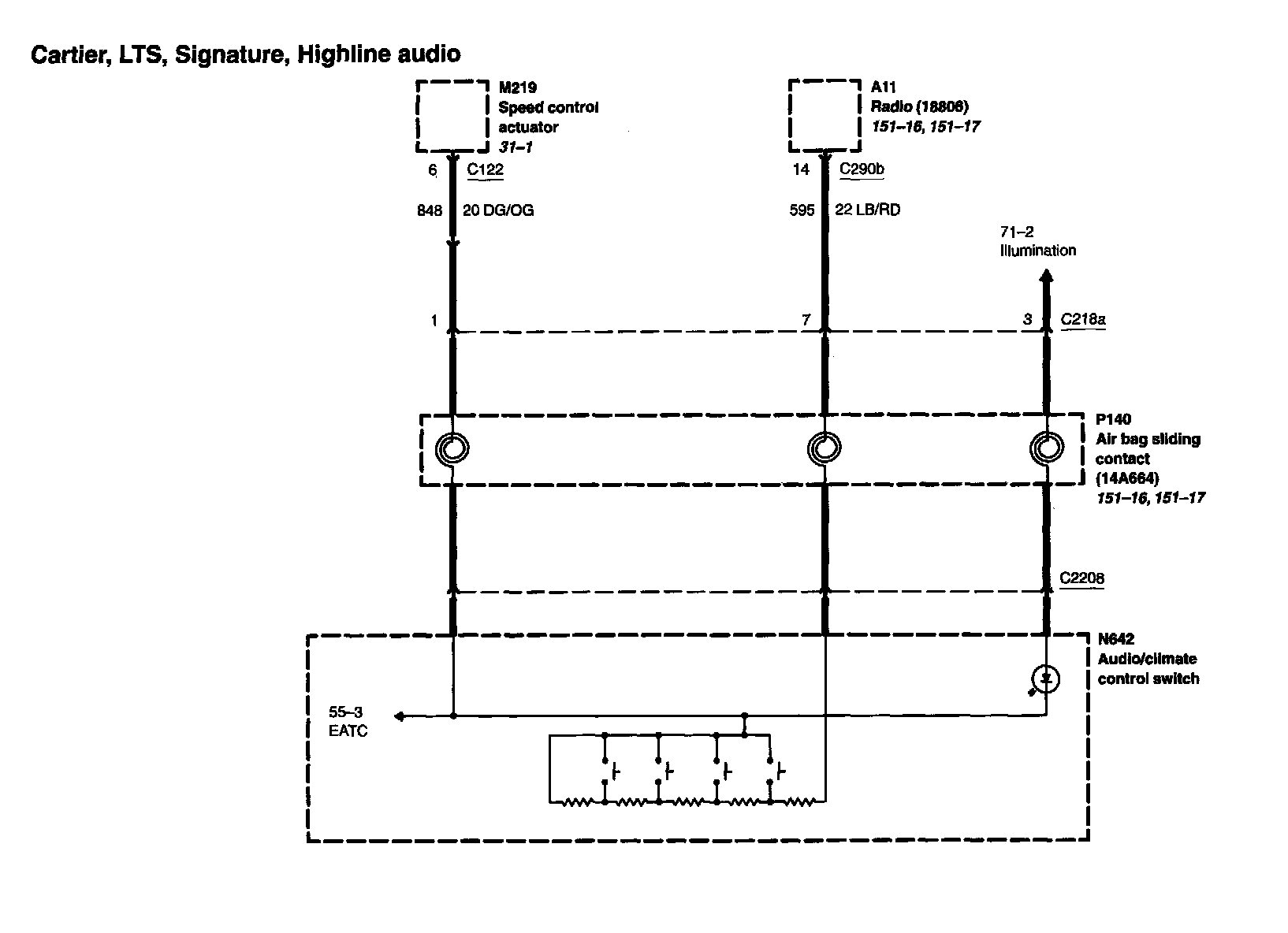

Diagram 130-4:
