Analog

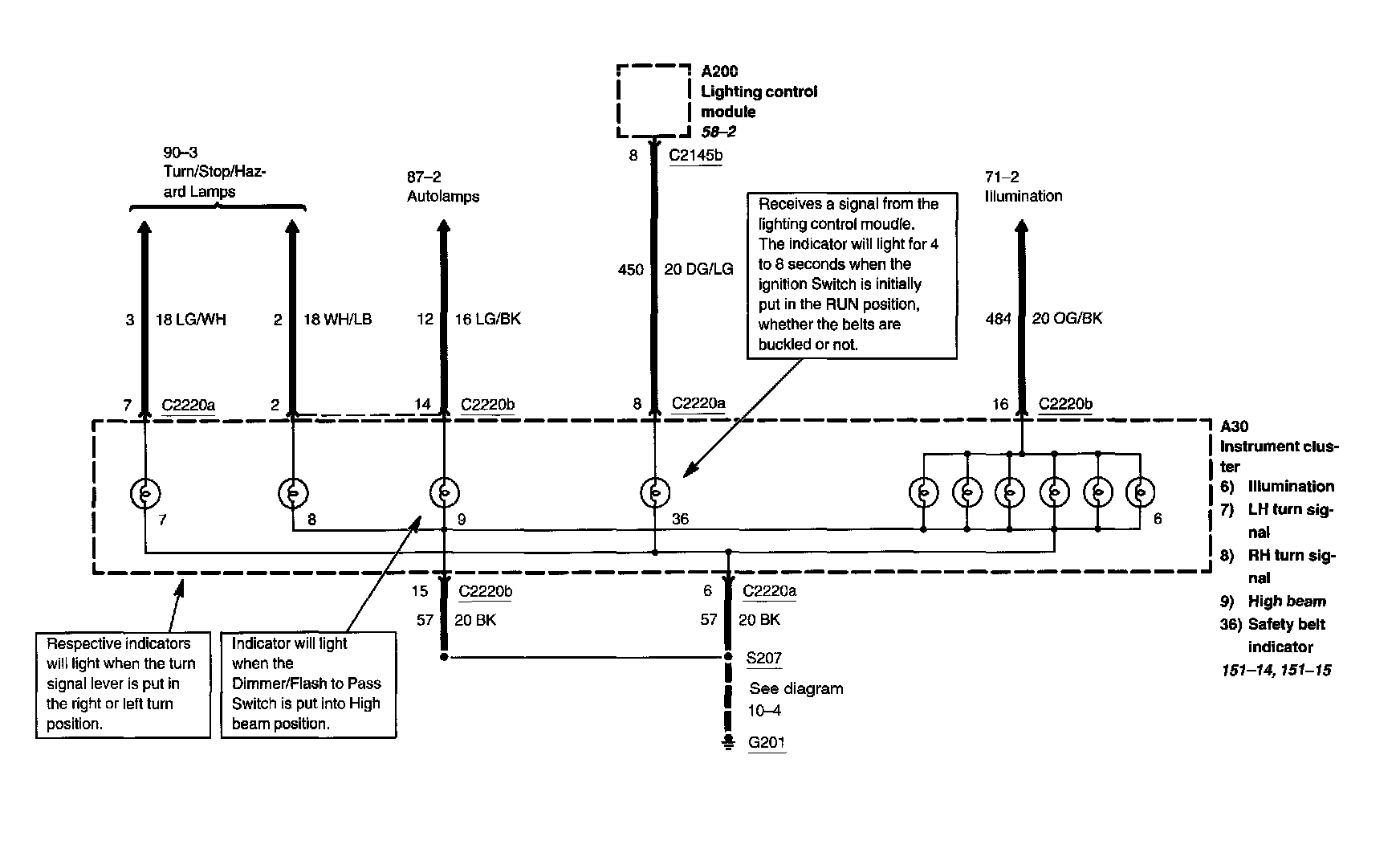

Diagram 60-1:

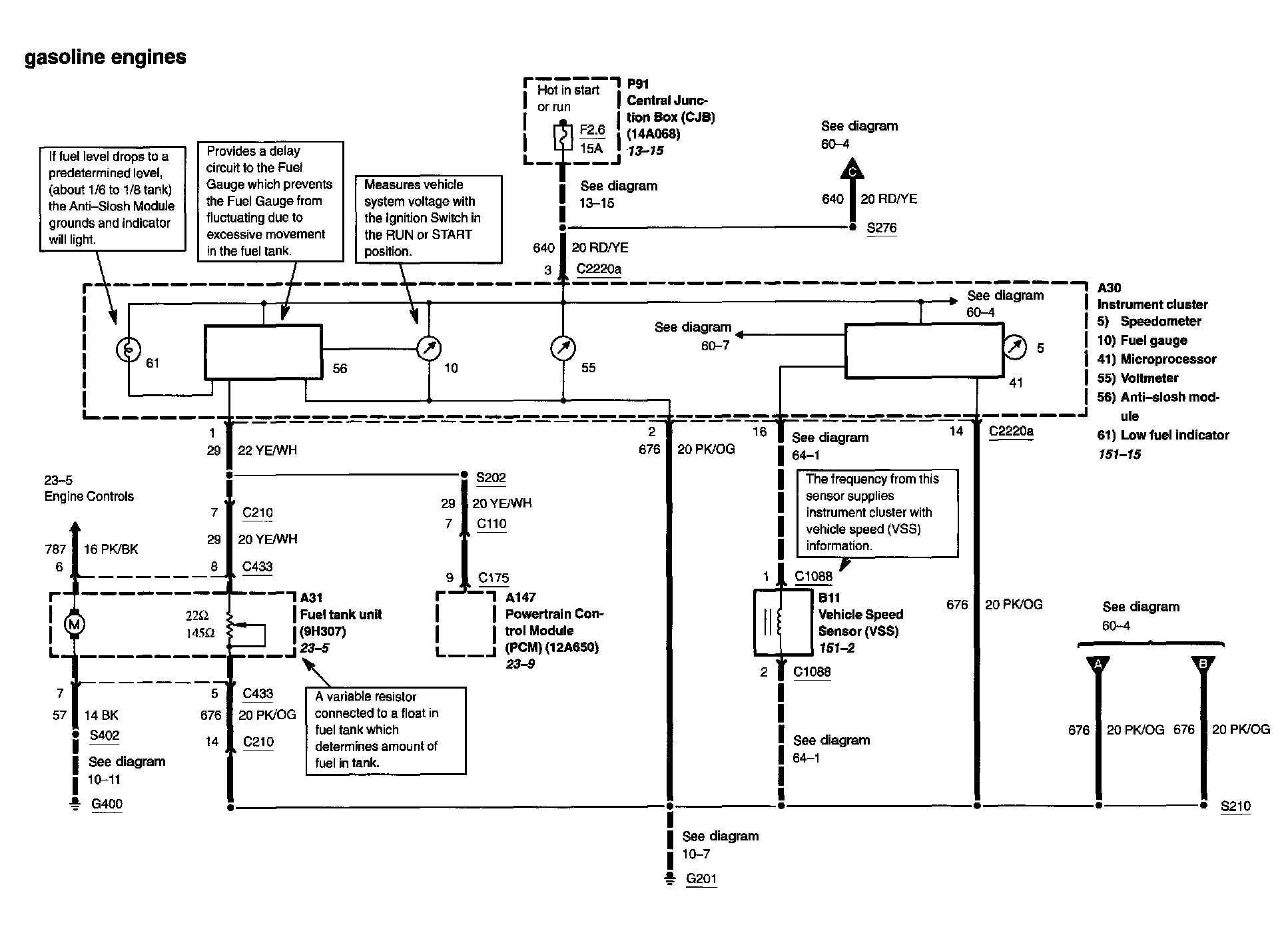

Diagram 60-2:

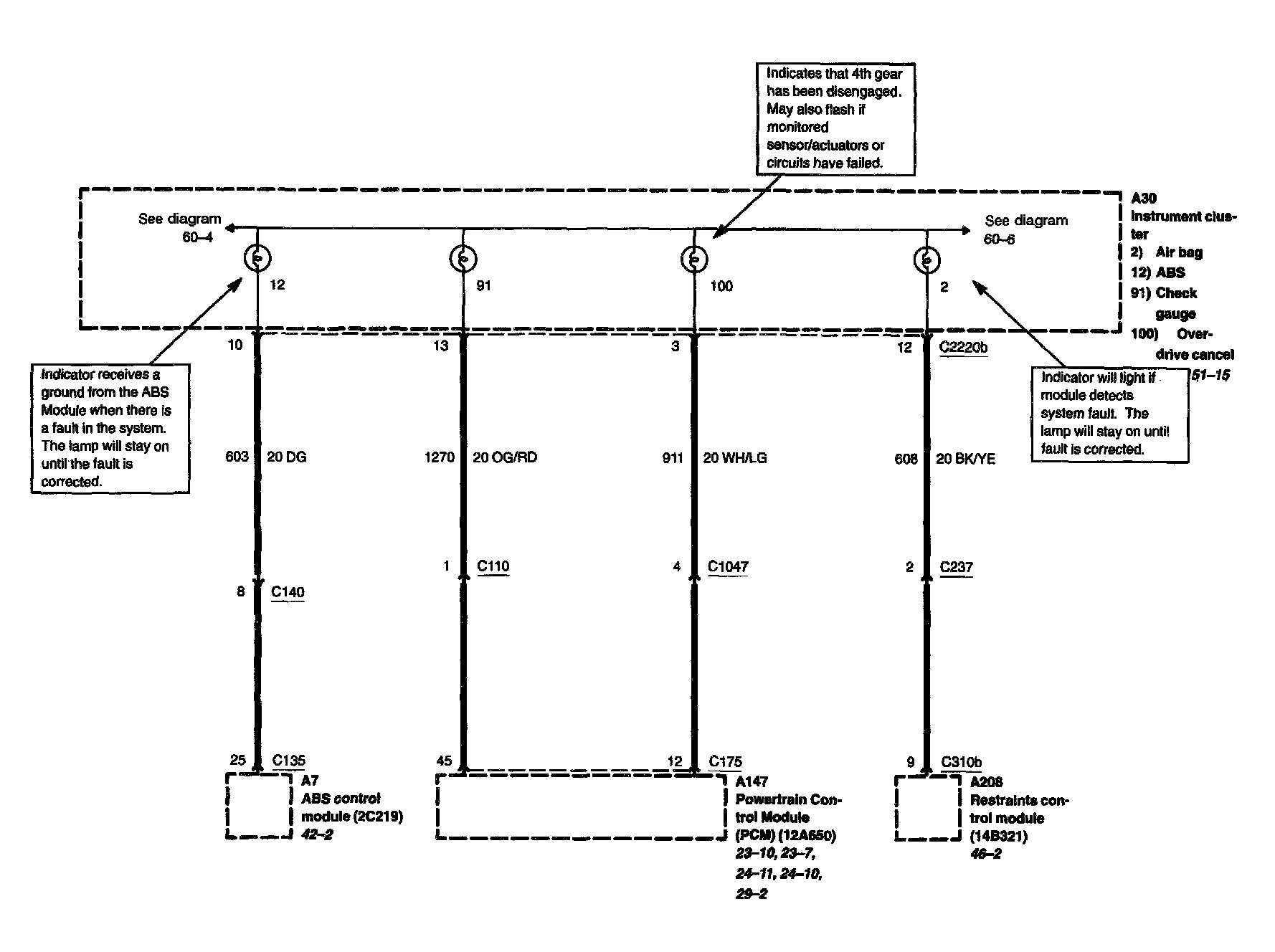

Diagram 60-3:

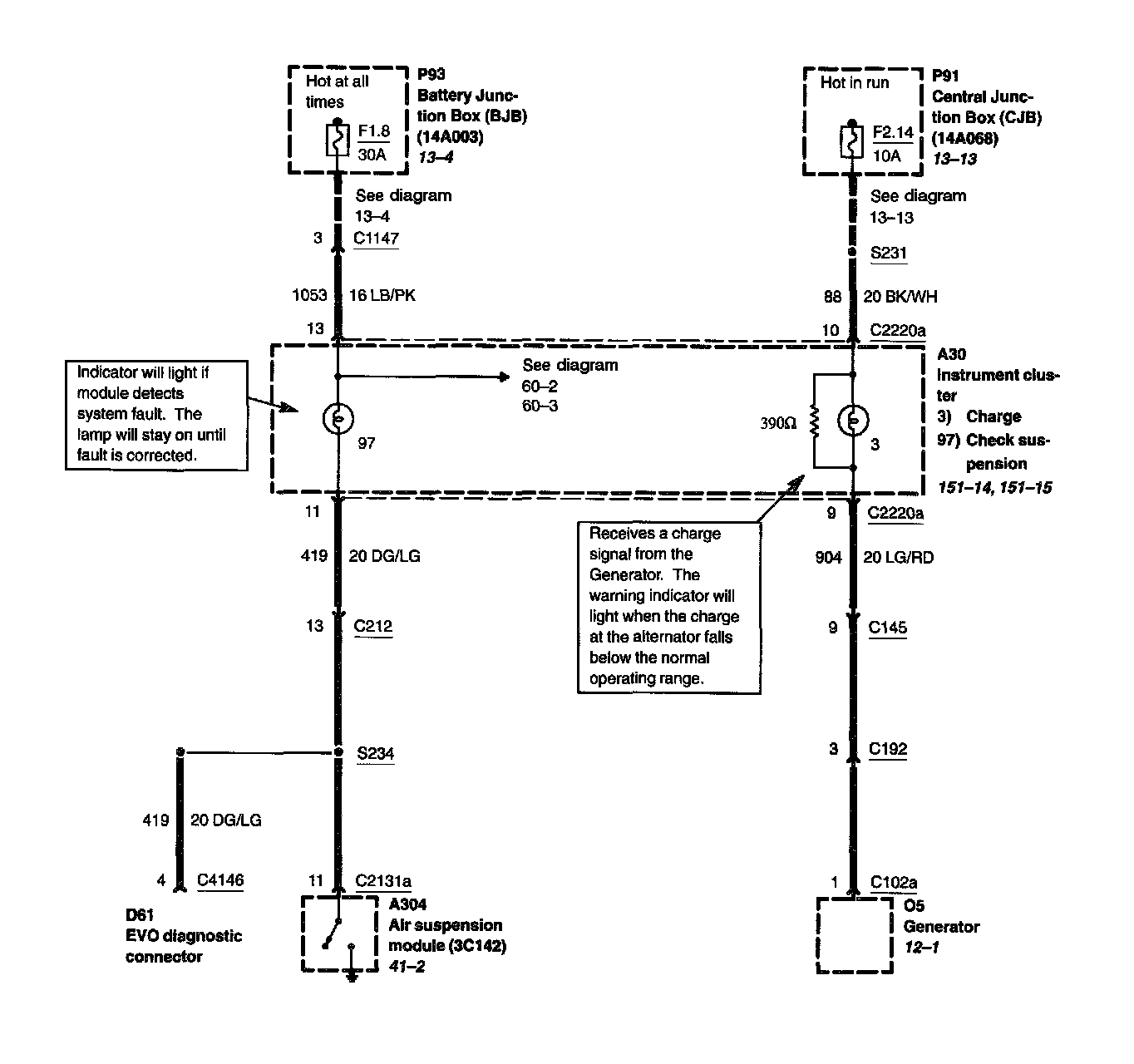

Diagram 60-4:

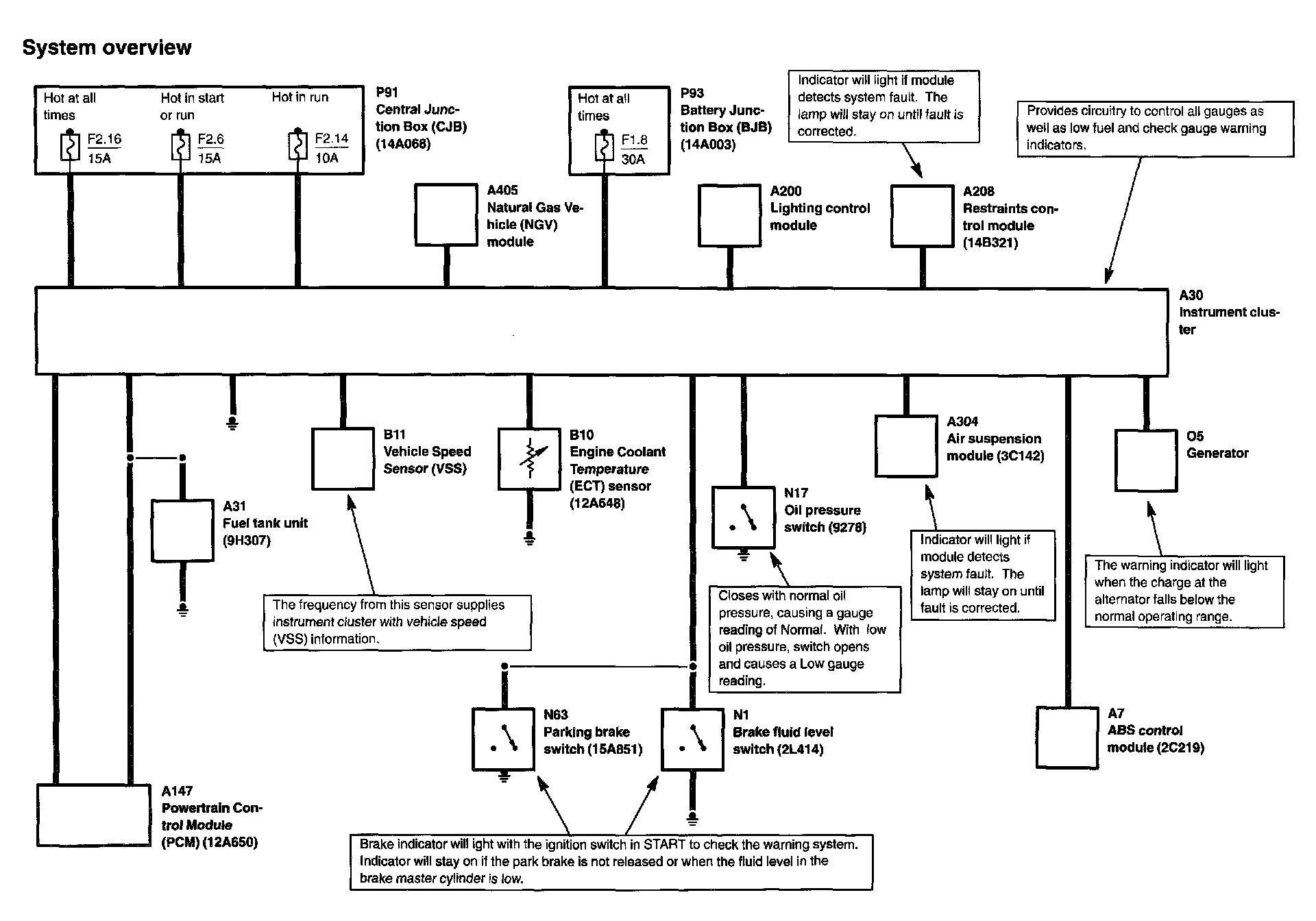

Diagram 60-5:

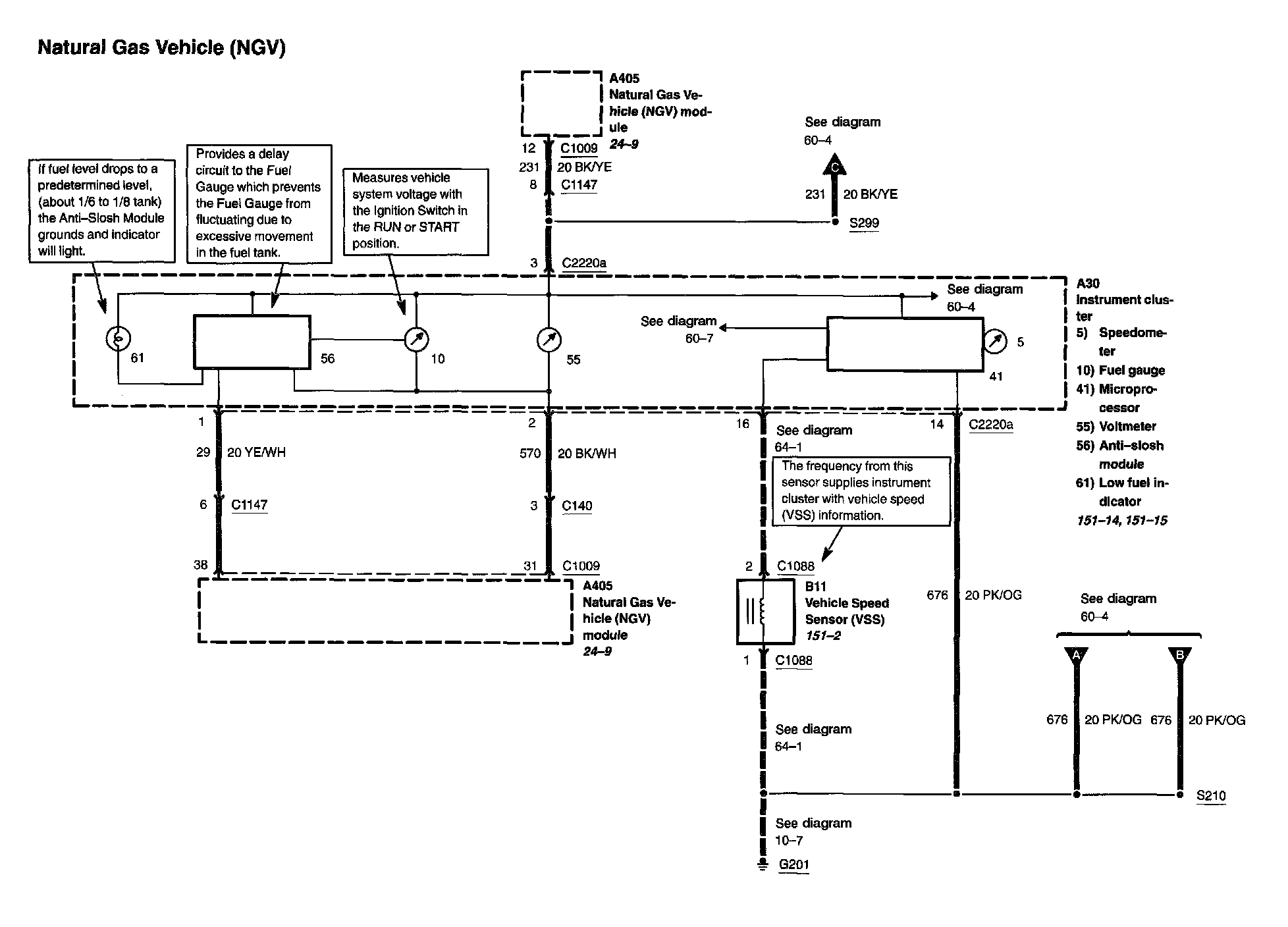

Diagram 60-6:

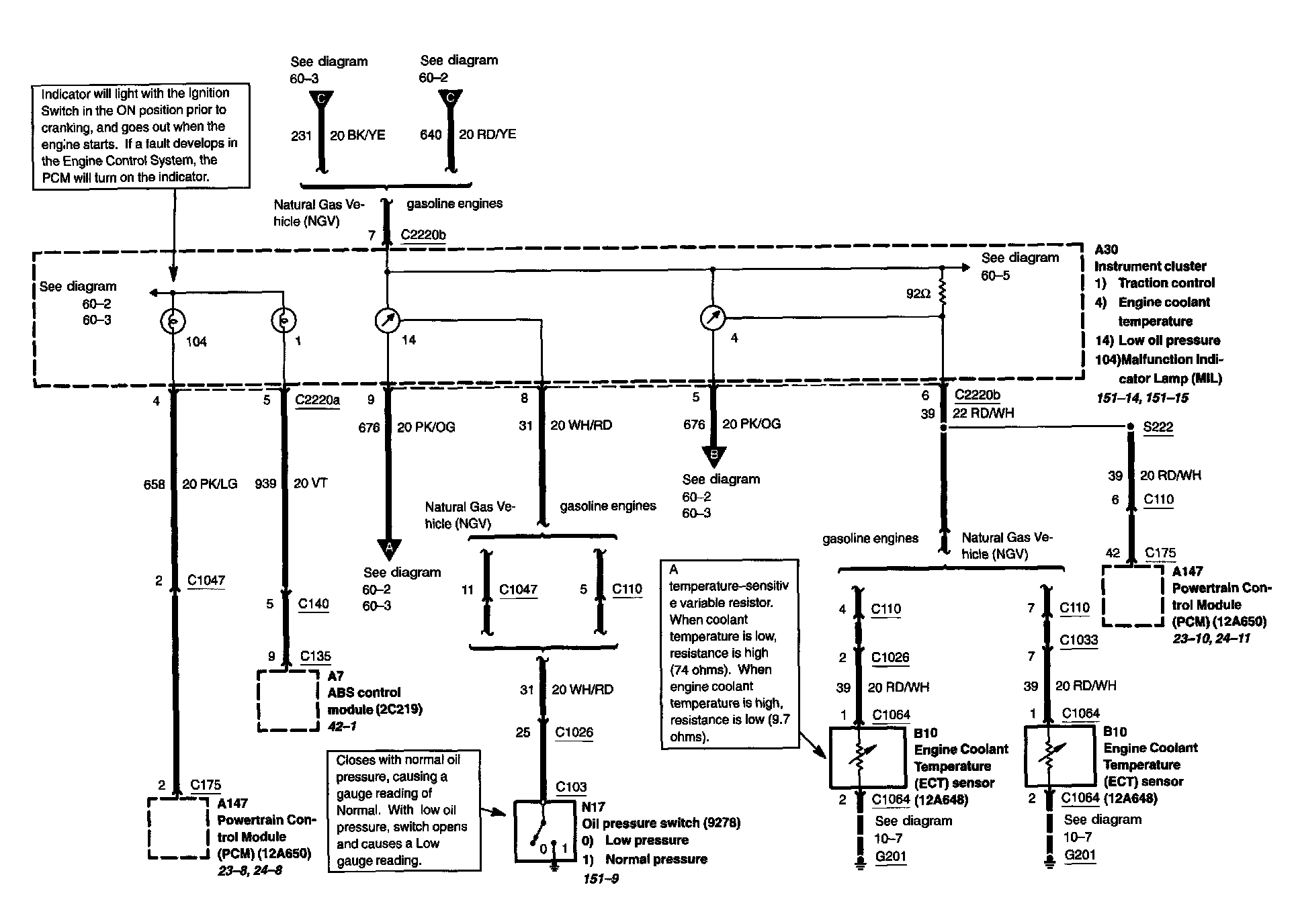

Diagram 60-7:

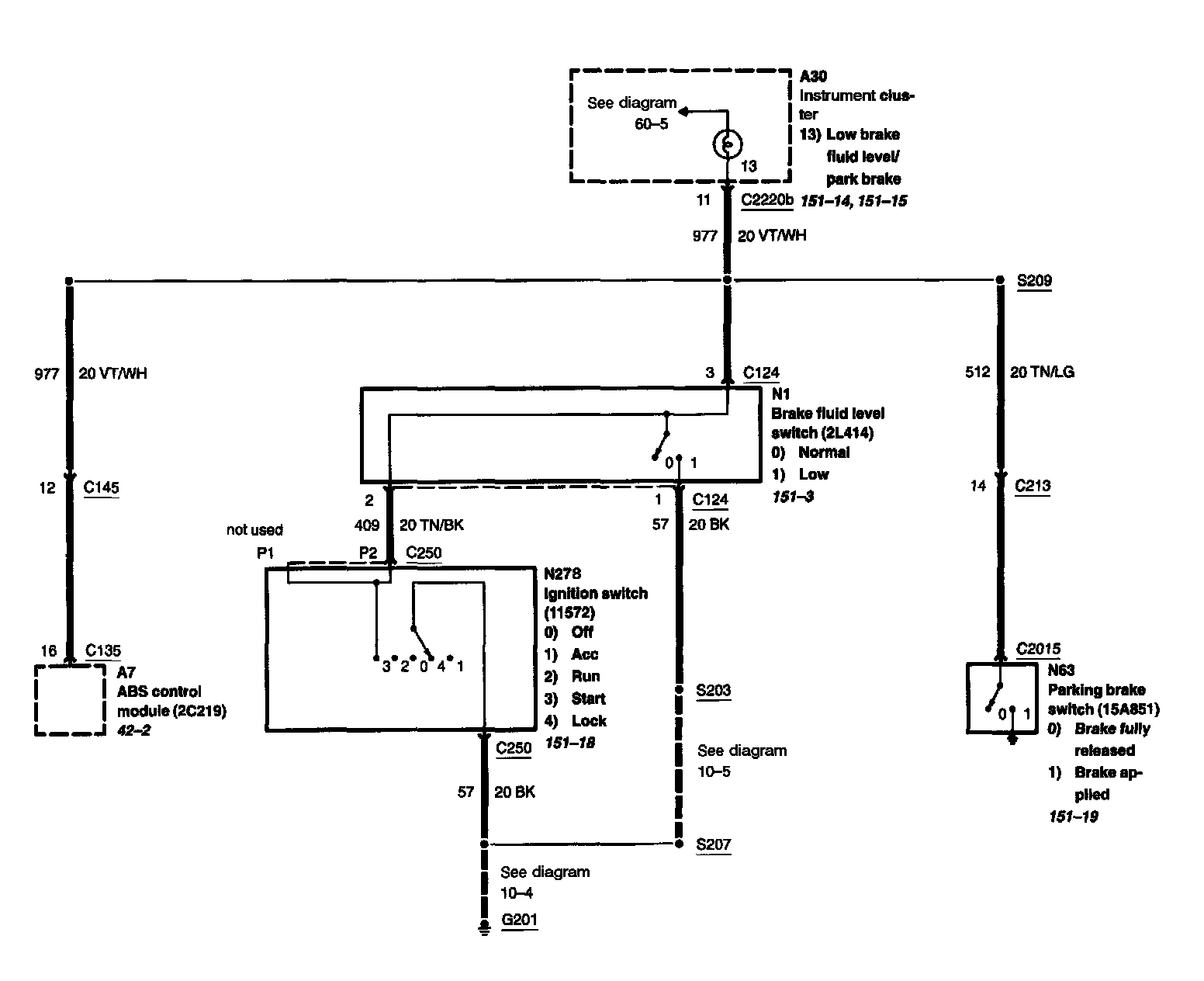

Diagram 60-8:
