Home >> Ford >> 2002 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Cigarette Lighter

Cigarette Lighter

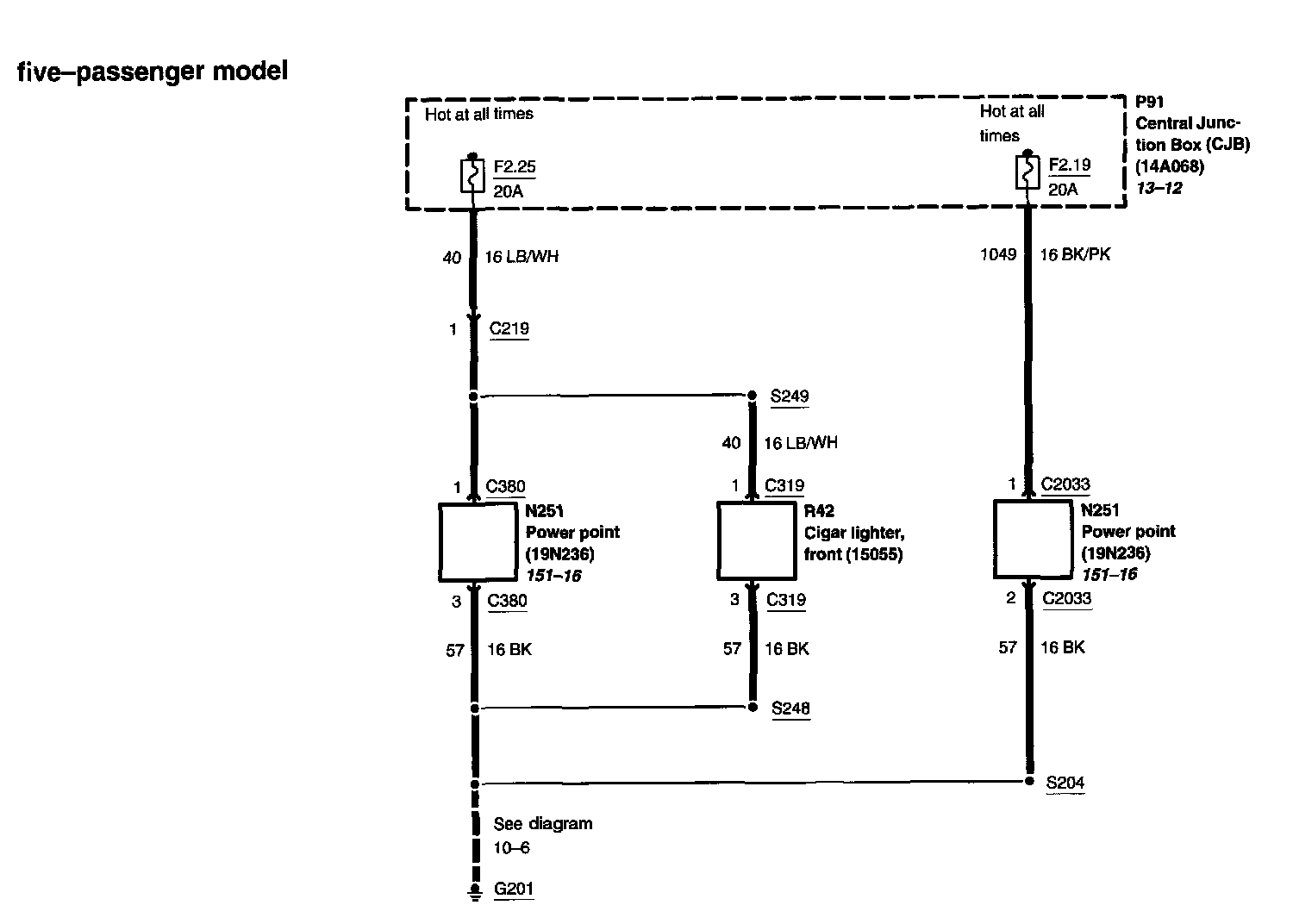

Diagram 44-1:

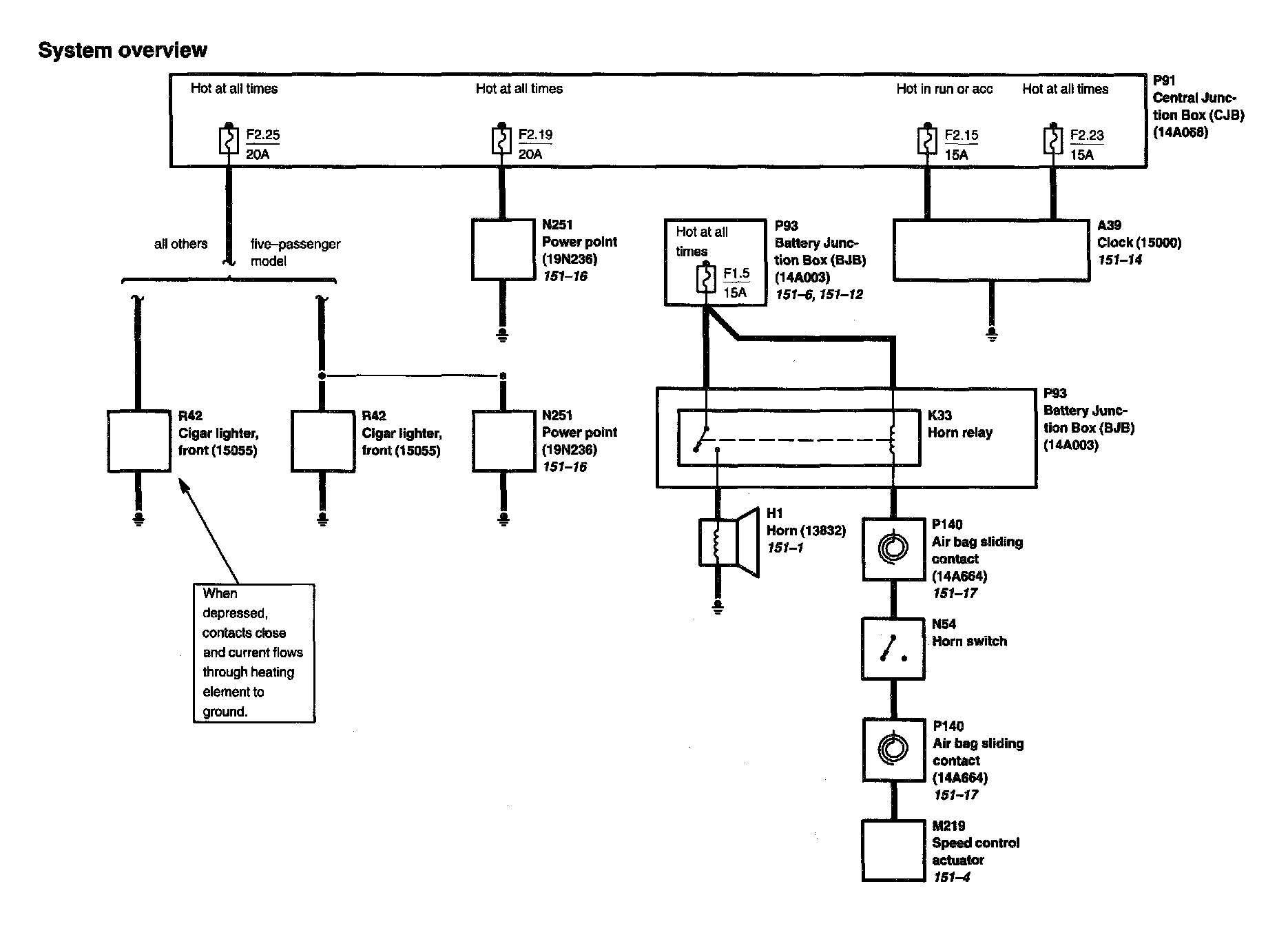

Diagram 44-2:

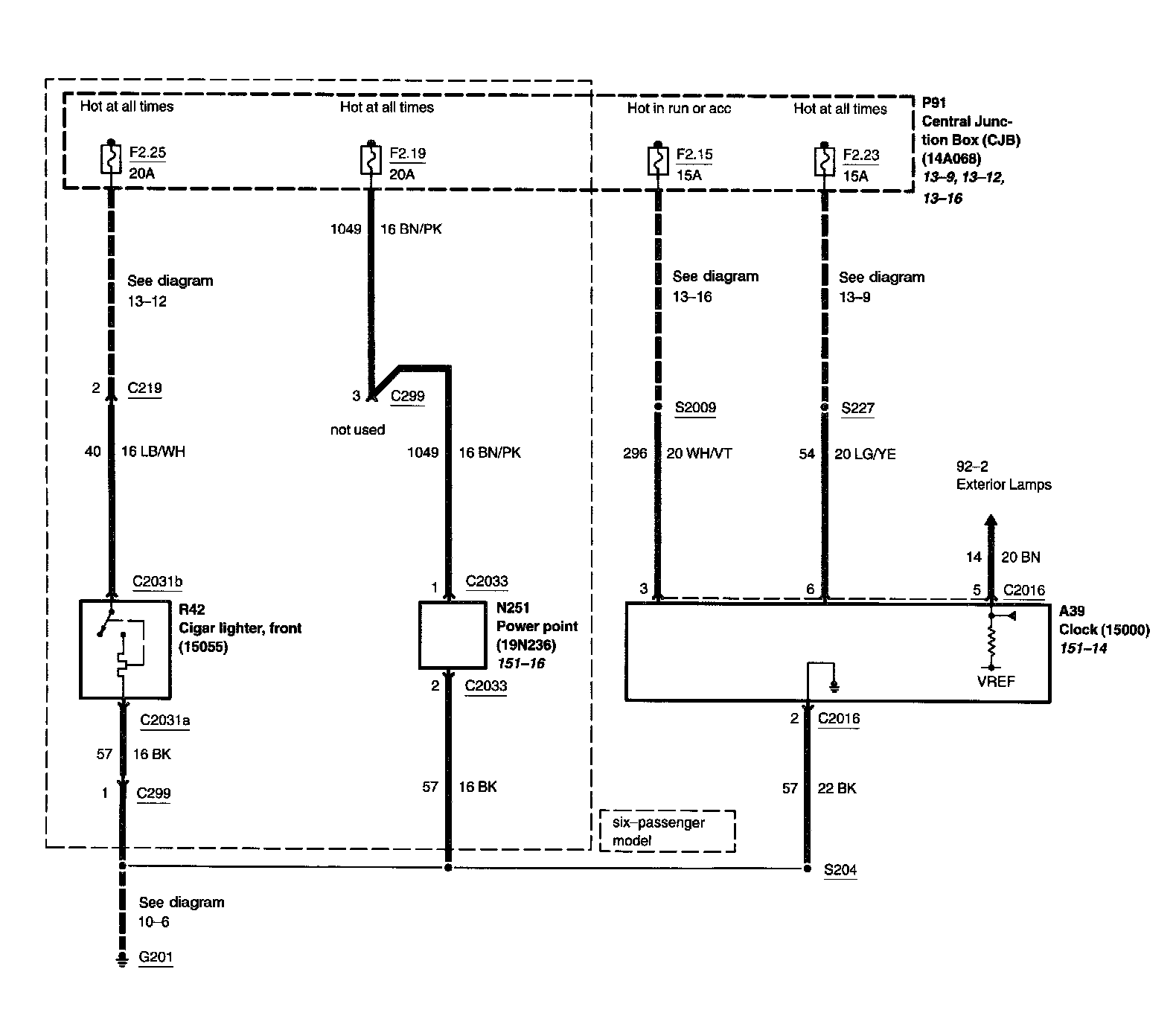

Diagram 44-3:

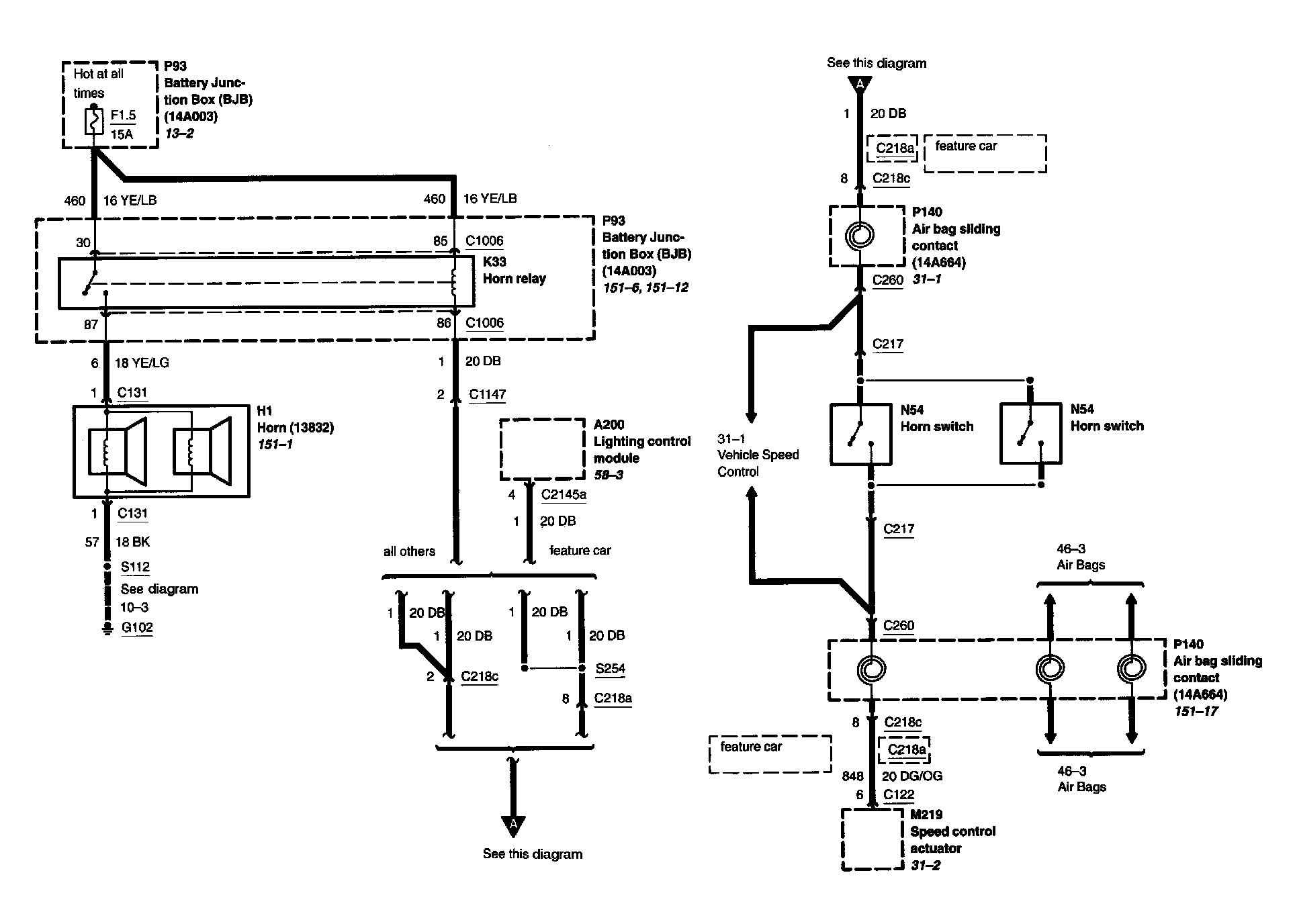

Diagram 44-4:
