Wiper Arm: Adjustments

NOTE: The windshield wiper pivot arm and windshield wiper blade assemblies are positioned using a key and keyway. If adjustment is necessary, use the following procedure:

1. Remove the pivot arm.
2. Remove the key from the pivot arm.
3. Cycle the wiper motor to the PARK position.

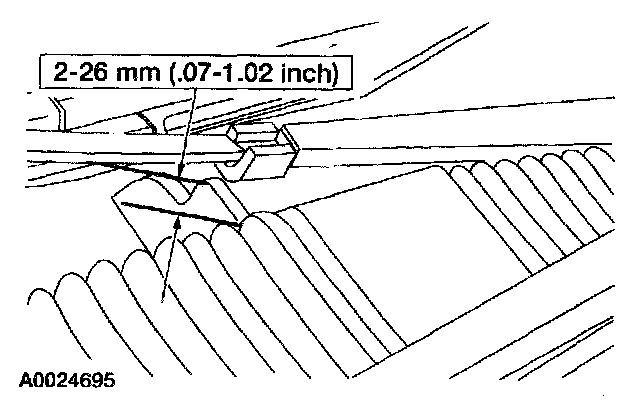

4. Install the LH pivot arm to the specified position above the ramp stop.

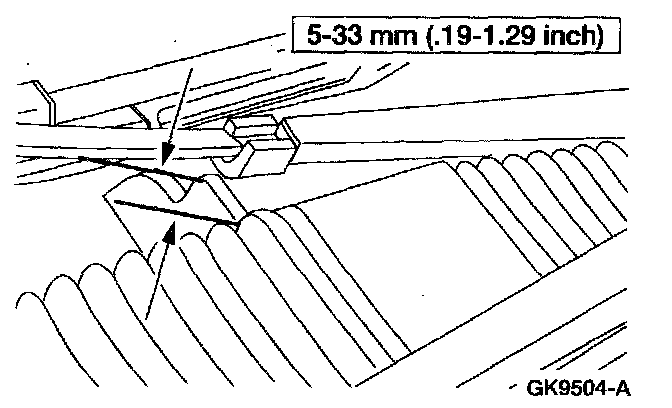

5. Install the RH pivot arm to the specified position above the ramp stop.
6. Lower the pivot arms to the ramp stops.
