Wiper Arm: Service and Repair

REMOVAL

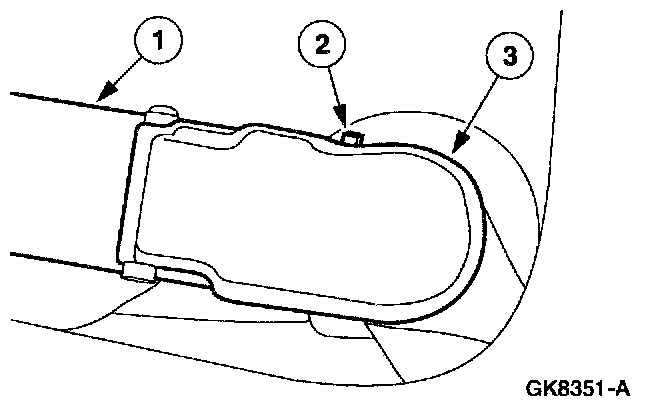

1. Remove the pivot arm.
1 Lift the pivot arm slightly off the glass.
2 Release the locking tab and rest the pivot arm on the locking tab.
3 Remove the pivot arm.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: When installing the pivot arm on the pivot shaft, it is necessary to align the key on the pivot arm with the key on the pivot shaft.
