Front Door Window Regulator: Service and Repair

Heavy Duty Riveter:

SPECIAL TOOL(S)

REMOVAL
1. Remove the front door window glass.

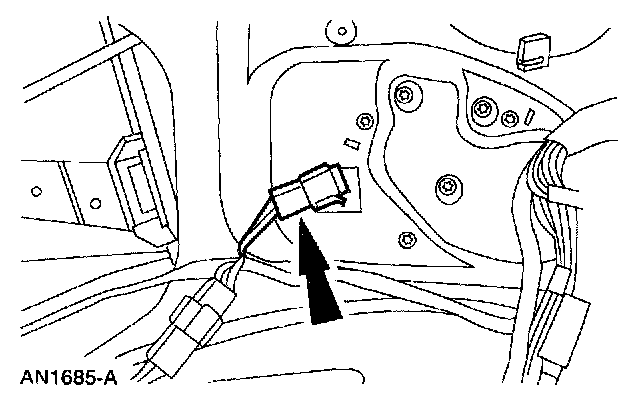

2. Disconnect the connector.

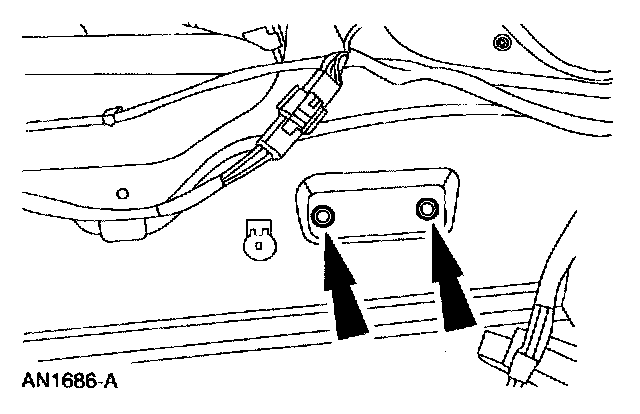

3. Remove the rivets.







4. Remove the Torx(R) screws.

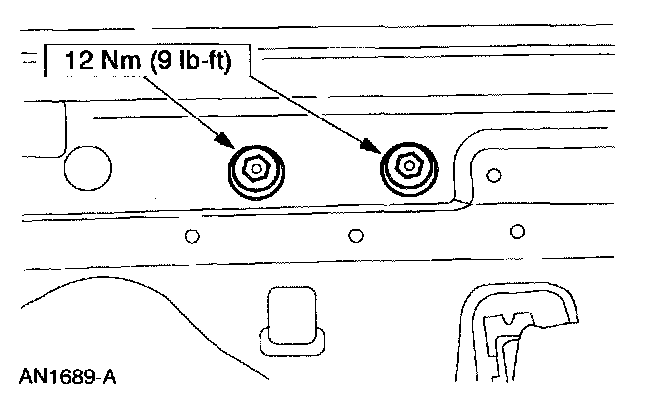

5. Remove the nuts.
6. Remove the regulator.

INSTALLATION
1. To install, reverse the removal procedure.
^ Use the special tool to install the new rivets.
