Tail Lamp: Service and Repair

REMOVAL

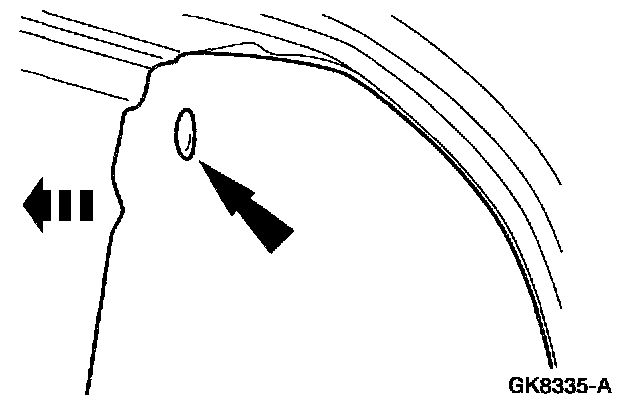

1. Position the luggage compartment trim aside.
^ Remove the pin-type retainer.

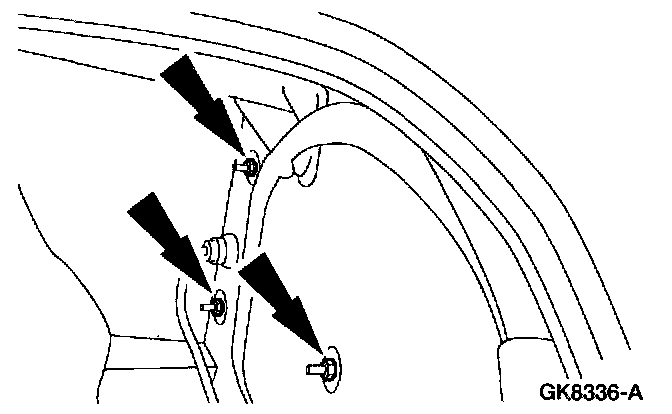

2. Remove the rear lamp nuts.







3. Remove the rear lamp assembly and disconnect the electrical connectors.

INSTALLATION

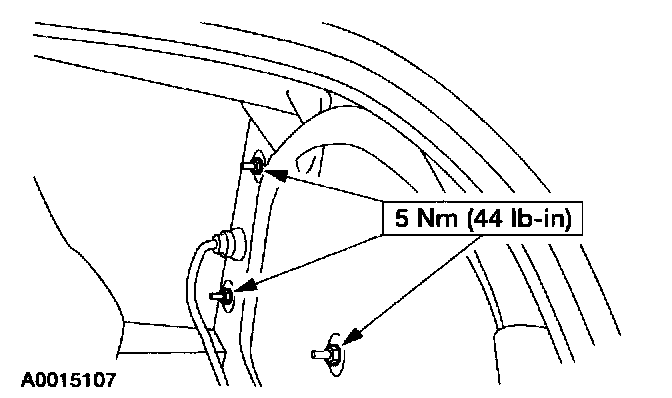

1. To install, reverse the removal procedure.
