Ambient Light Sensor: Service and Repair

REMOVAL

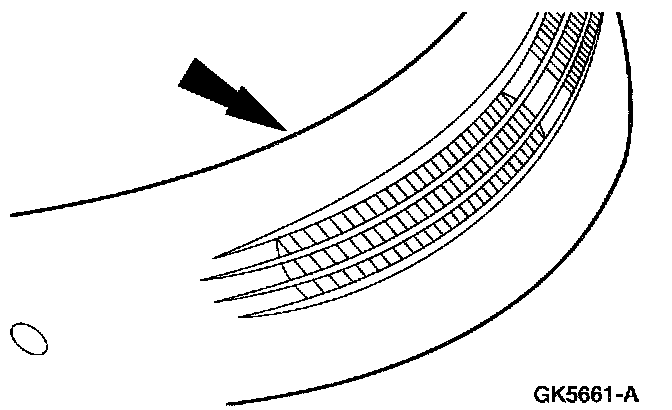

1. Unclip the instrument panel upper finish panel.

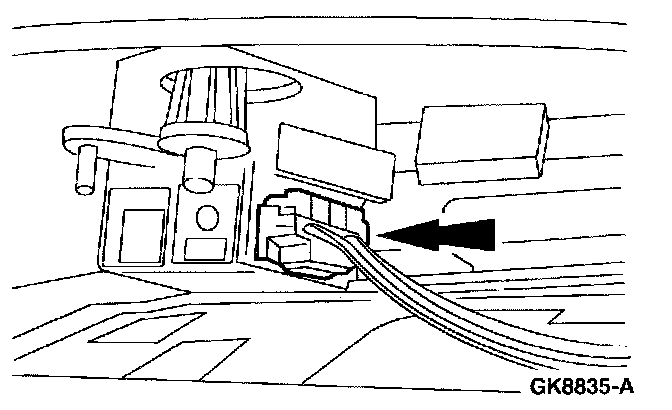

2. Disconnect the light sensor amplifier electrical connector.

CAUTION: To avoid damaging the light sensor amplifier electrical connector, carefully tilt the panel to expose the connector without stretching the wiring.

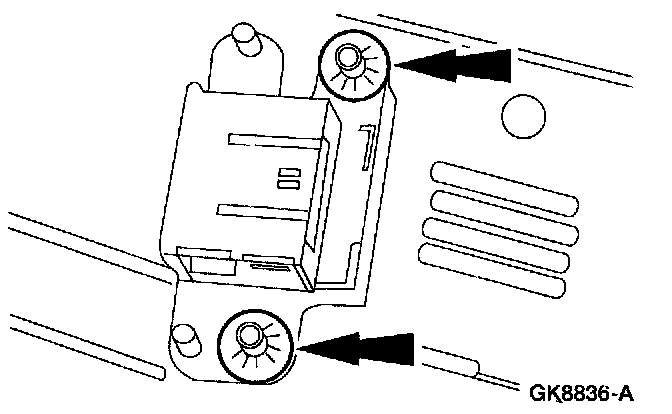

3. Unclip the light sensor amplifier.

INSTALLATION
1. To install, reverse the removal procedure.
