Marker Lamp: Service and Repair

REMOVAL







1. Remove the sight shield.
^ Twist the clips.

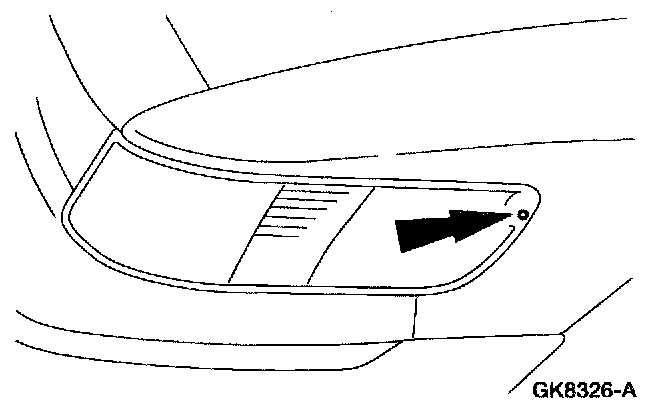

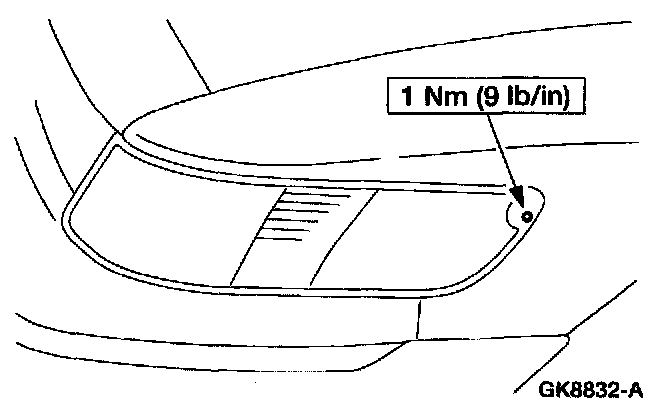

2. Remove the screw.

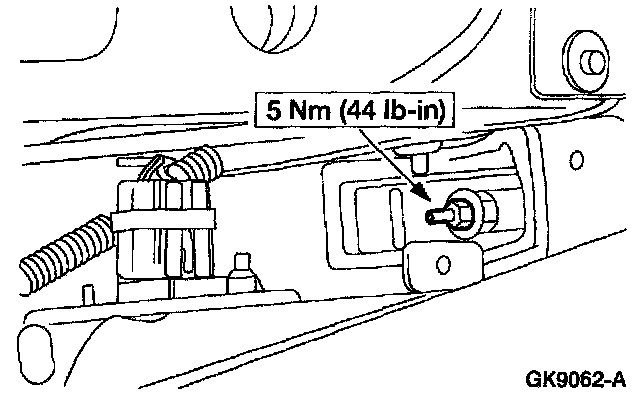

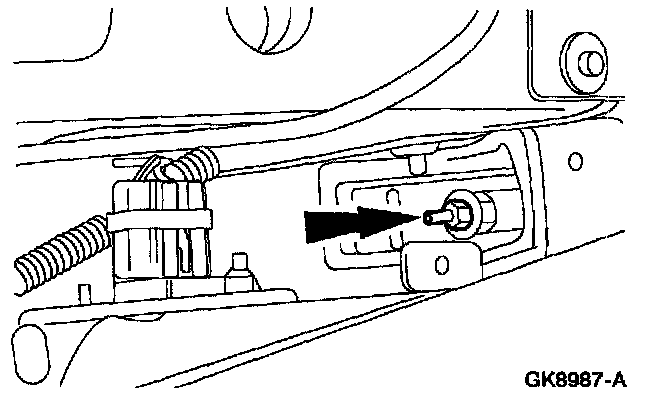

3. From inside the engine compartment, remove the nut.

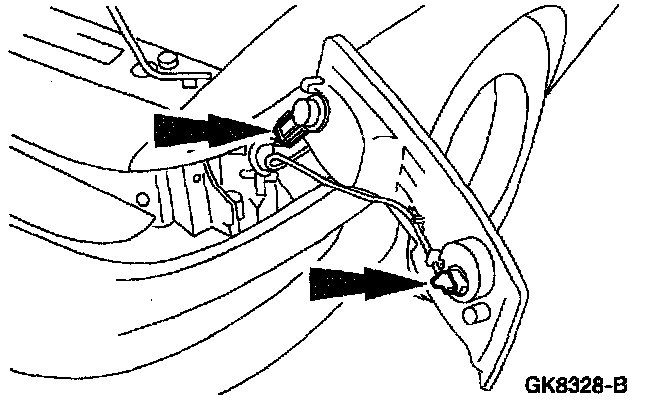

4. Remove the side marker lamp assembly (Grand Marquis shown, Crown Victoria similar).
^ Disconnect the electrical connector(s).
^ If necessary, install new bulb(s).

INSTALLATION












1. To install, reverse the removal procedure.
