Front Dome/MAP Lamp Assembly
REMOVAL

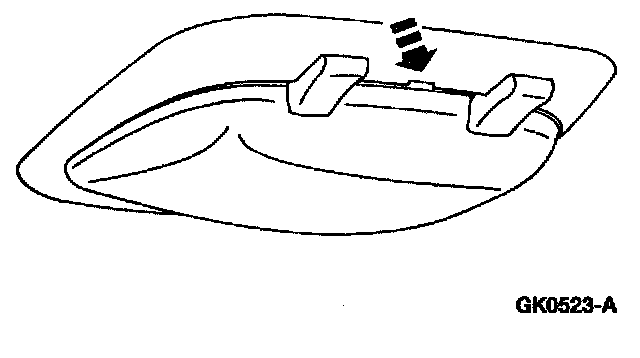

1. Carefully release the dome lamp lens.

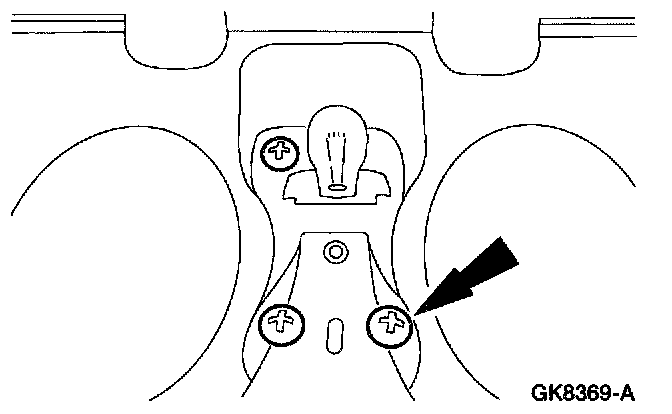

2. Remove the three screws.
3. Remove the dome/map lamp assembly.

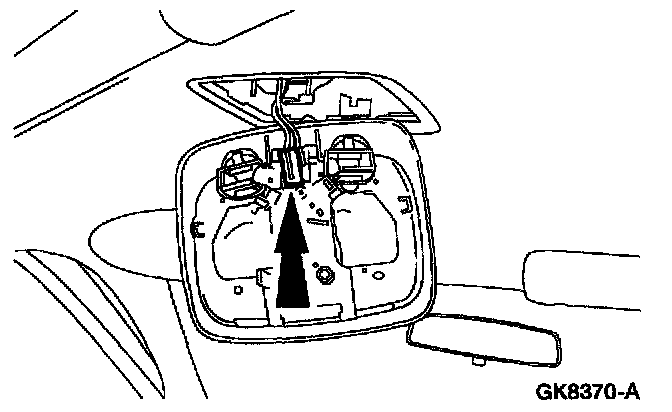

^ Disconnect the electrical connector.
INSTALLATION
1. To install, reverse the removal procedure.
1. Carefully release the dome lamp lens.
2. Remove the three screws.
3. Remove the dome/map lamp assembly.
^ Disconnect the electrical connector.
INSTALLATION
1. To install, reverse the removal procedure.
