Rear Reading Lamp Assembly

REMOVAL

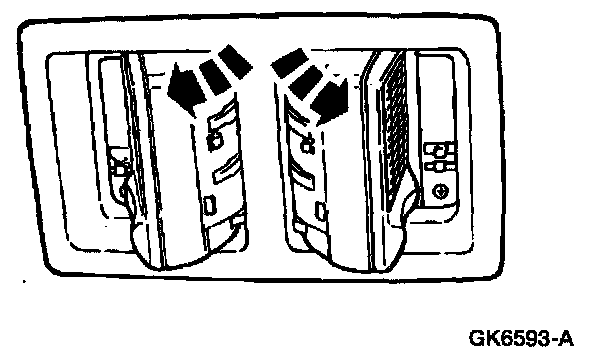

1. Rotate both reading lamps to the stop position, then continue until both reading lamps are in the vertical position.

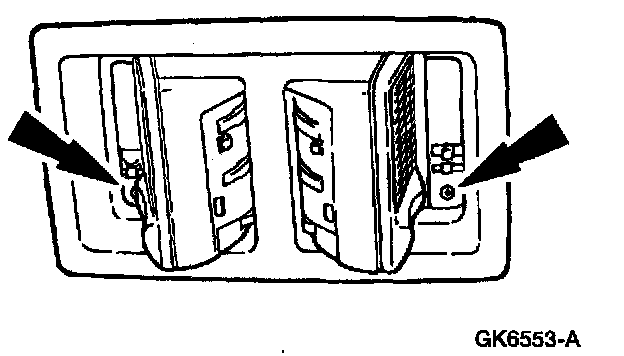

2. Remove the screws.







3. Remove the reading lamp assembly.

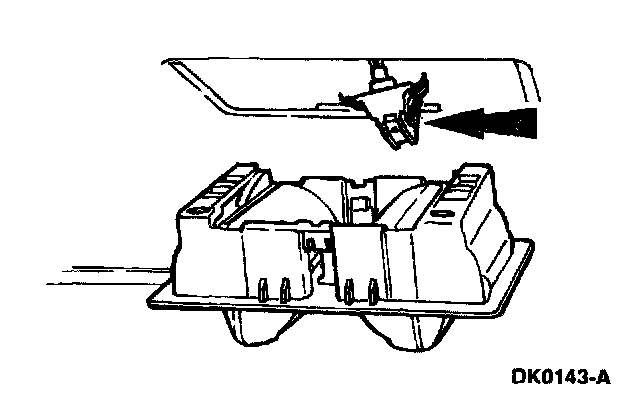

^ Disconnect the electrical connector.

INSTALLATION
1. To install, reverse the removal procedure.
