Center Mounted Brake Lamp: Service and Repair

REMOVAL

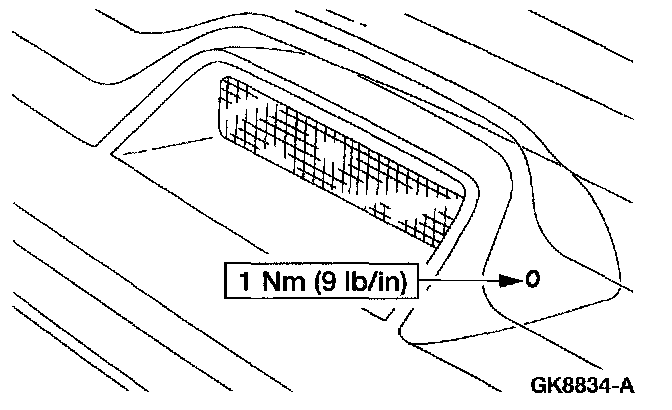

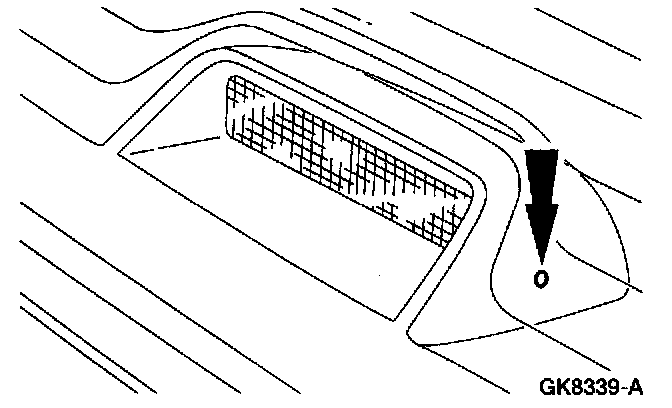

1. Remove the two high mounted stoplamp screws.







2. Remove the high mounted stoplamp assembly.

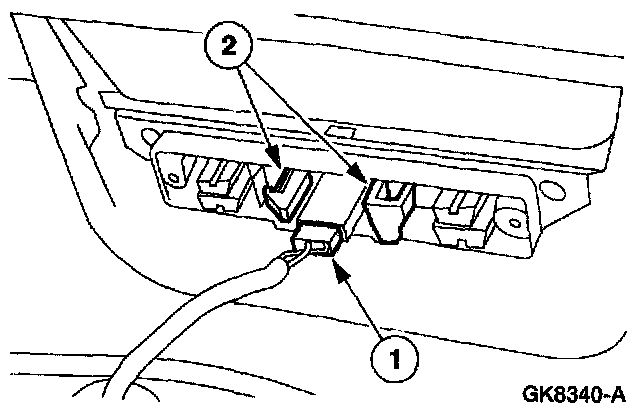

1 Disconnect the electrical connector.
2 Depress the clips and remove the high mounted stoplamp assembly.

INSTALLATION







1. To install, reverse the removal procedure.
