Power Seat Motor: Service and Repair

REMOVAL
1. Remove the front seat.
2. Remove the front seat backrest.
3. Disassemble the front seat backrest.

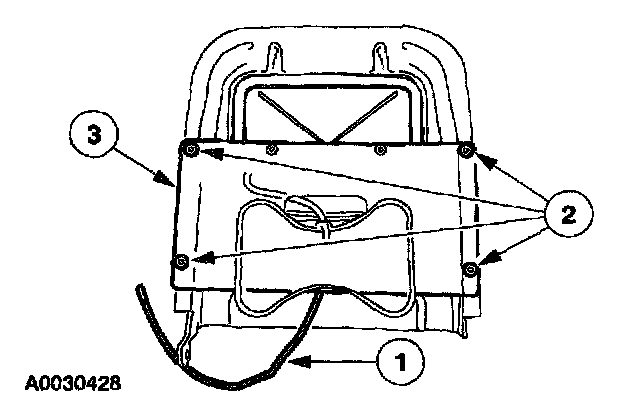

4. Remove the lumbar motor.
1 Remove the lumbar motor wire harness pin-type retainer.
2 Remove the rivets.
3 Remove the lumbar motor and assembly.

NOTE: The lumbar motor, bladder, hose and backing board are serviced as an assembly.

INSTALLATION
1. To install, reverse the removal procedure.
2. Check the active restraint system for correct operation.
