Rear Shelf: Service and Repair

REMOVAL
1. Remove the rear quarter trim panels.

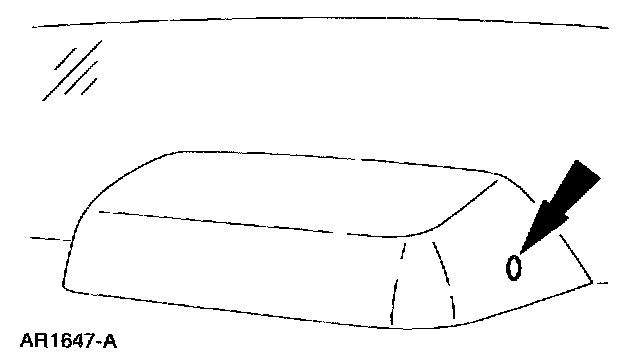

2. Remove the two high-mount stoplamp screws.

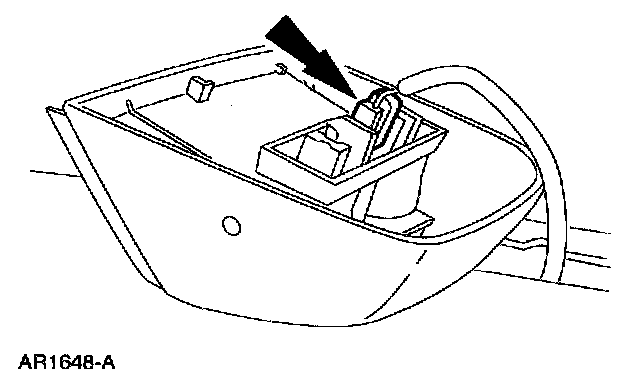

3. Disconnect and remove the high-mount stoplamp.

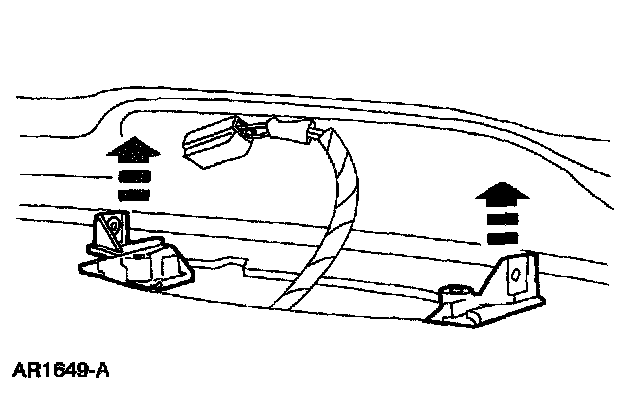

4. Remove the high-mount stoplamp brackets.

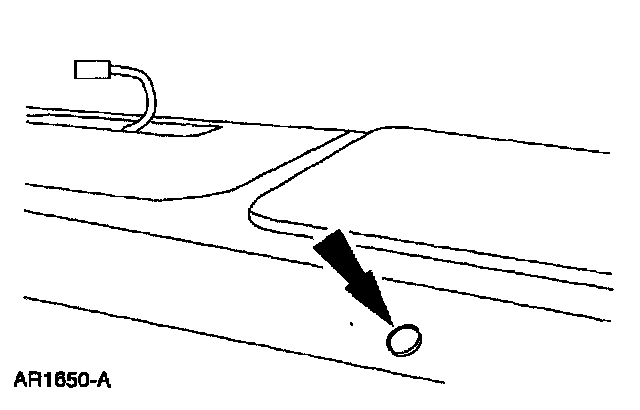

5. Remove the two pin-type retainers.
6. Remove the parcel shelf.

INSTALLATION
1. To install, reverse the removal procedure.
- Check the restraint system for correct operation.
