Floor Console - Finish Panel Assembly

REMOVAL
1. Apply the parking brake.
2. Place the transmission selector lever in the first gear position.

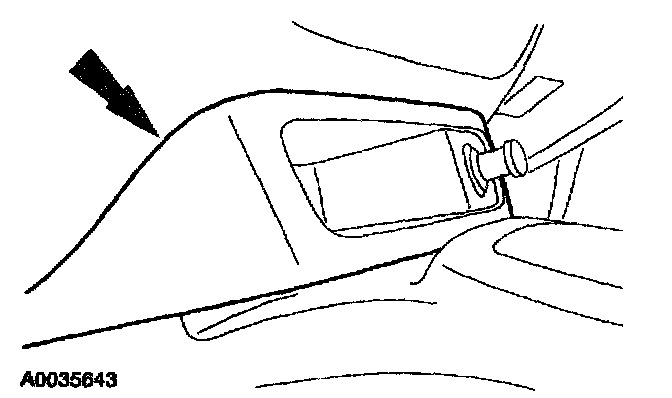

3. Remove the instrument panel center finish panel.
- Disconnect the electrical connector.

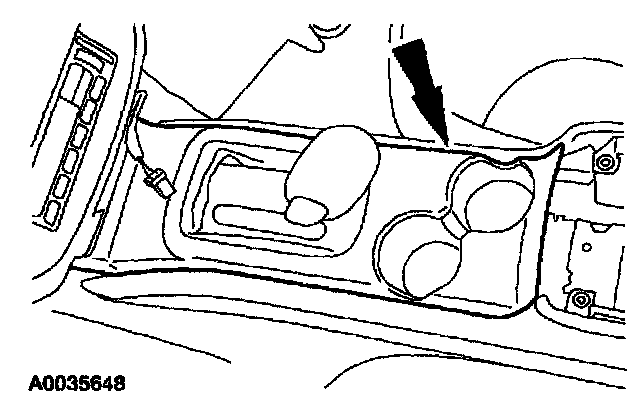

4. Release the floor console finish panel.

INSTALLATION
1. To install, reverse the removal procedure.
