Front Door Exterior Handle: Service and Repair
REMOVAL1. Remove the front door trim panel.

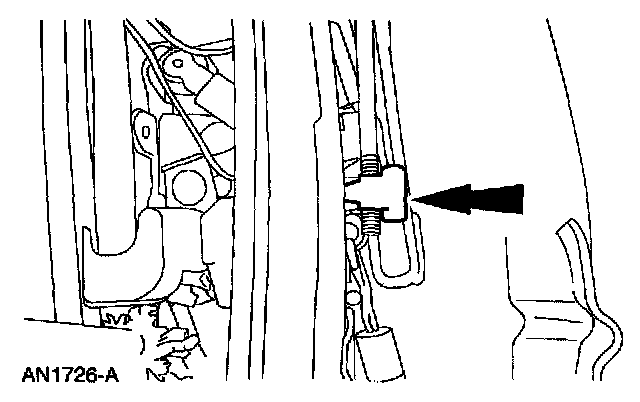

2. Open the clip and release the actuating rod.

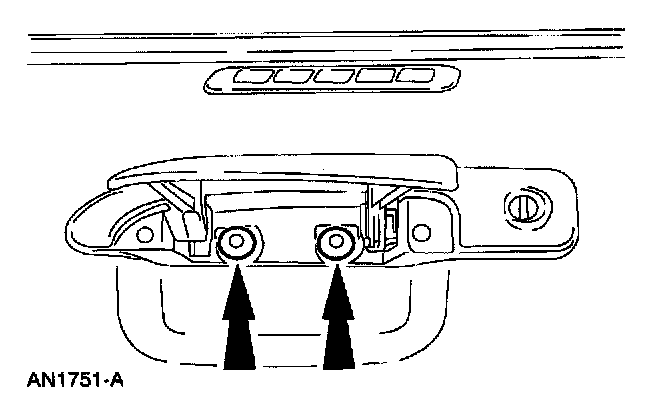

3. Remove the rivets.
4. Remove the door handle.
INSTALLATION
1. To install, reverse the removal procedure.
1. Remove the front door trim panel.
2. Open the clip and release the actuating rod.
3. Remove the rivets.
4. Remove the door handle.
INSTALLATION
1. To install, reverse the removal procedure.
