Bumper-Rear Isolator
BUMPER - REAR ISOLATORRemoval
1. Removal Remove the rear bumper cover (17K835).

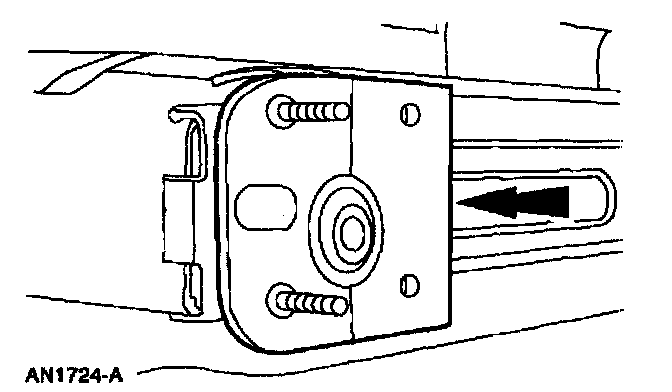

2. Remove the rear bumper (17906).

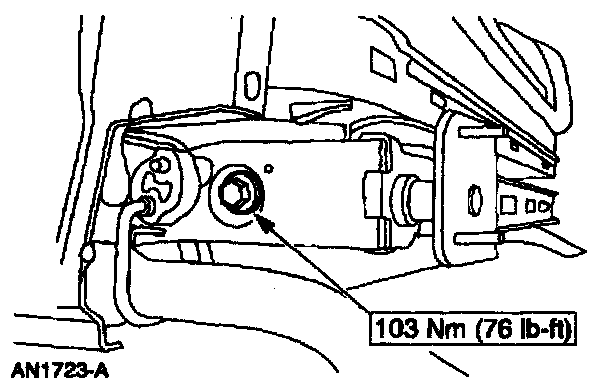

3. Remove the bolt.

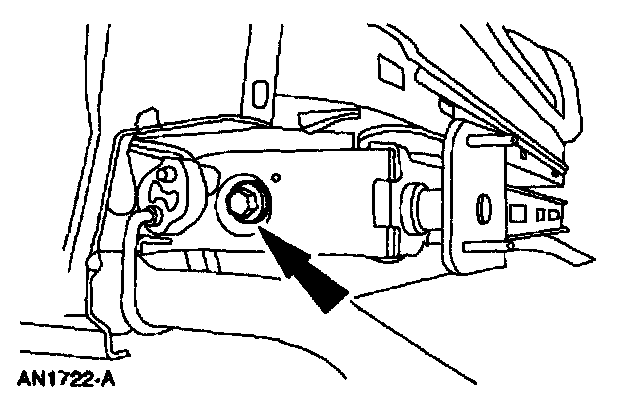

4. Remove the isolator (17787).
Installation
1. To install, reverse the removal procedure.
Removal
1. Removal Remove the rear bumper cover (17K835).
2. Remove the rear bumper (17906).
3. Remove the bolt.
4. Remove the isolator (17787).
Installation
1. To install, reverse the removal procedure.
