Rear Bumper

BUMPER - REAR

Removal
1. Remove the rear bumper cover (17K835).

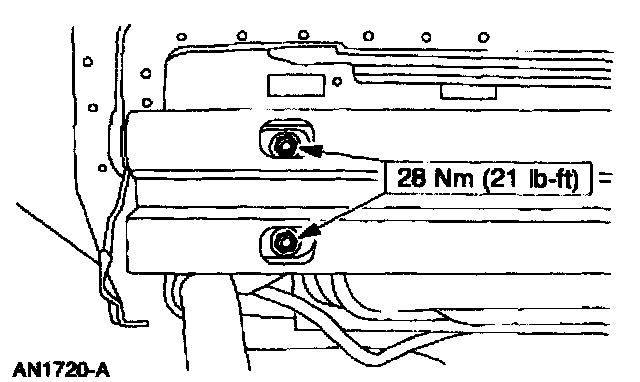

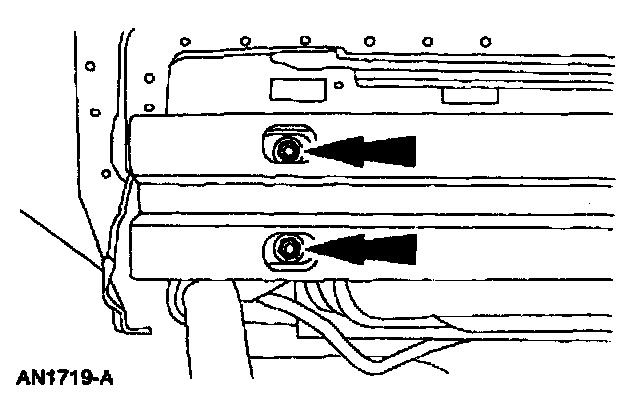

2. Remove the nuts from each side.

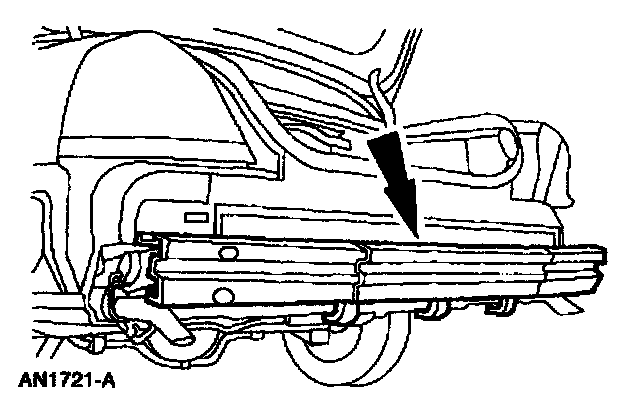

3. Remove the rear bumper (17906).

Installation







1. To install, reverse the removal procedure.
