Rear Bumper Cover / Fascia: Service and Repair

BUMPER COVER - REAR

Removal

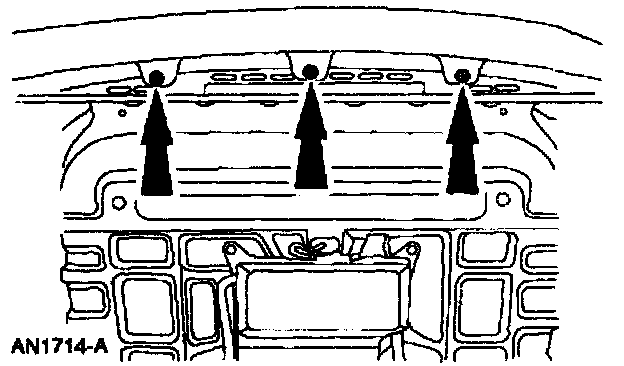

1. Remove the bolts.

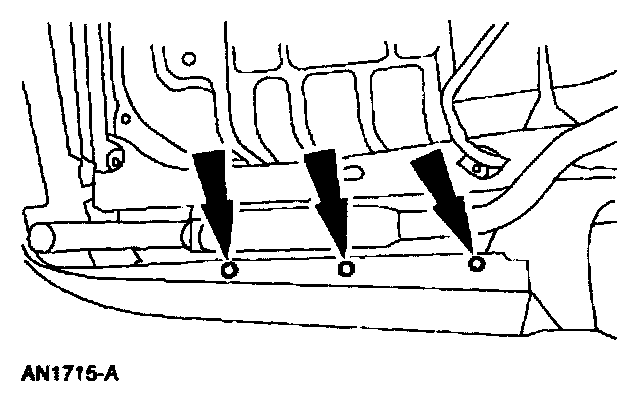

2. Remove the three pin-type retainers on each side.

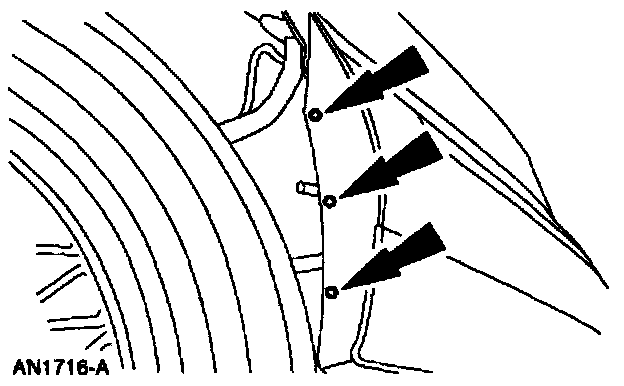

3. Remove the screws on each side.
4. Remove the luggage compartment trim.

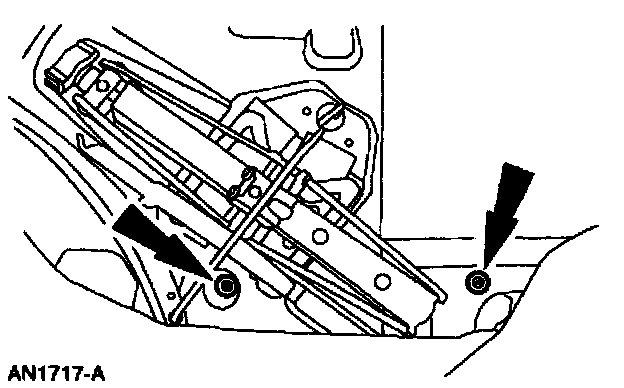

5. Remove the nuts from each side.

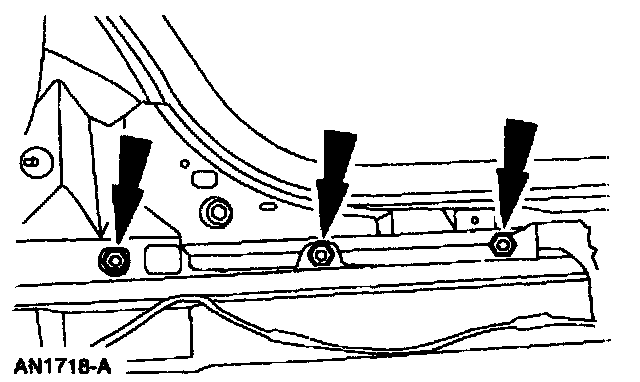

6. Remove the nuts from each side.

Installation

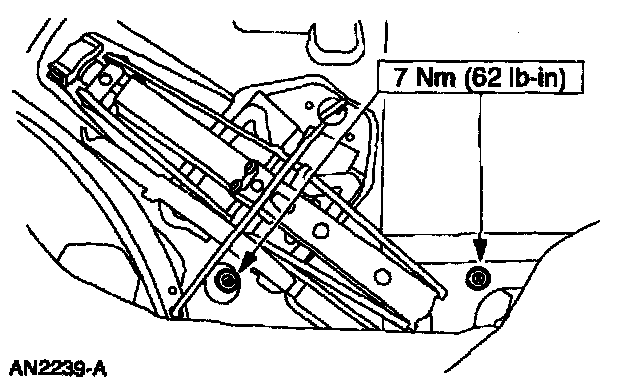

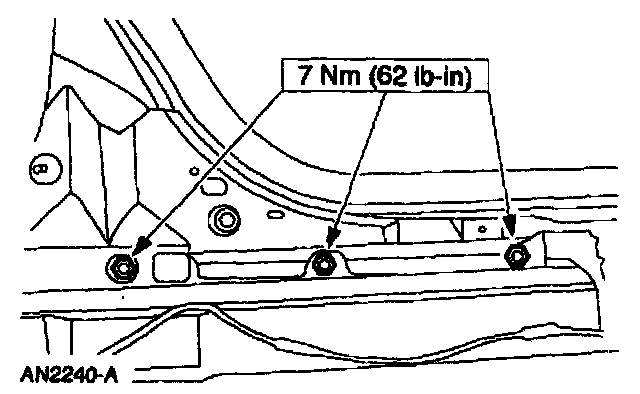

1. To install, reverse the removal procedure.
