Bumper Isolator - Front

BUMPER - FRONT ISOLATOR

Removal
1. Removal Remove the front bumper cover (17D957).
2. Remove the front bumper (17757).

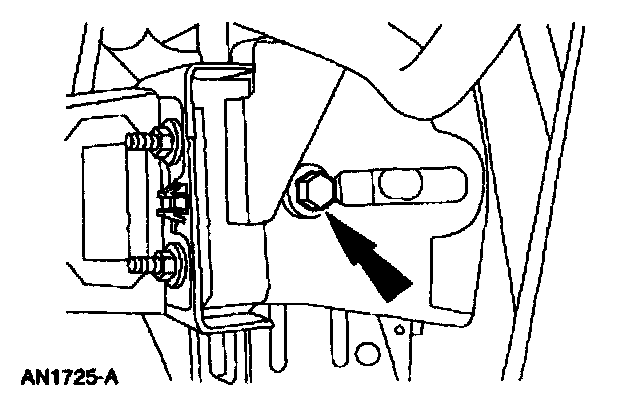

3. Remove the bolt.

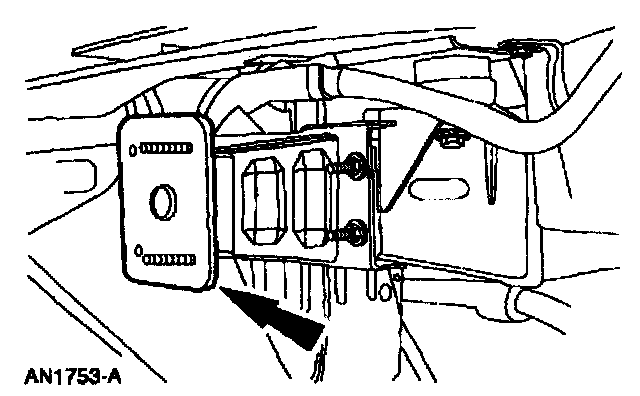

4. Remove the isolator (17754).

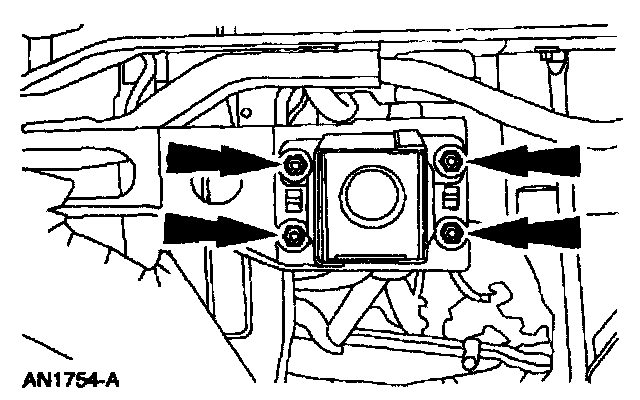

5. Remove the nuts.

Installation

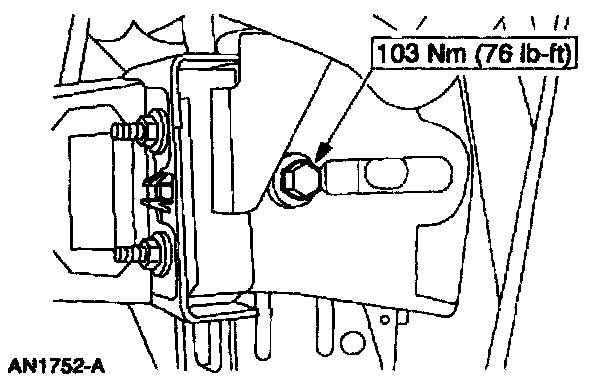

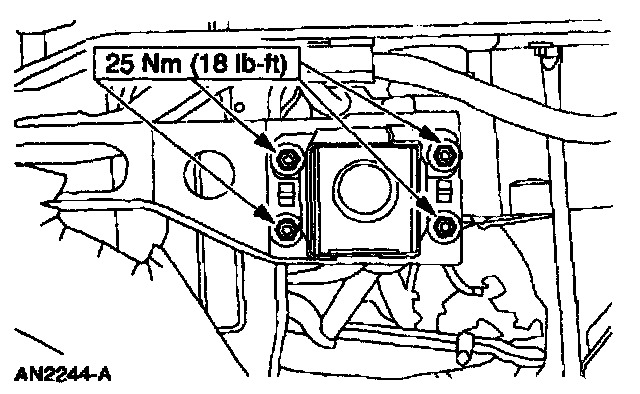

1. To install, reverse the removal procedure.
