Front Bumper

BUMPER - FRONT

Removal
1. Remove the front bumper cover (17D957).

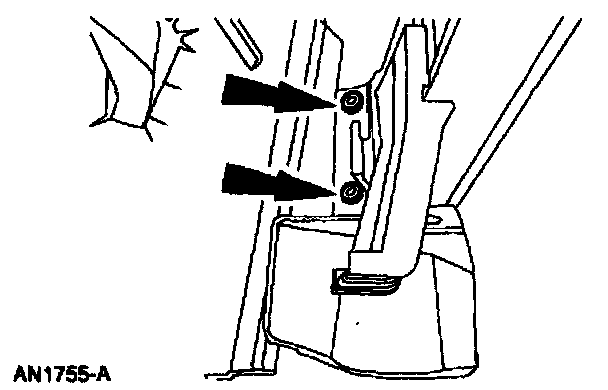

2. Remove the pin-type retainers.

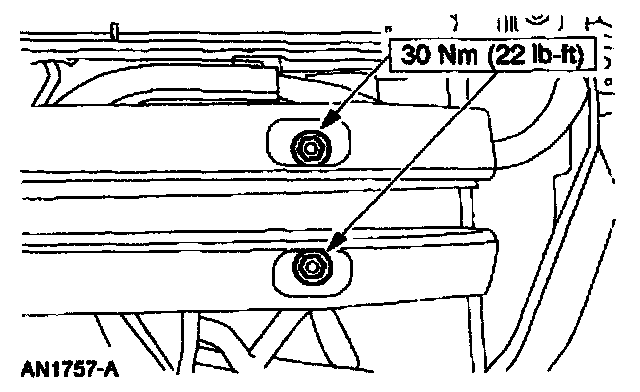

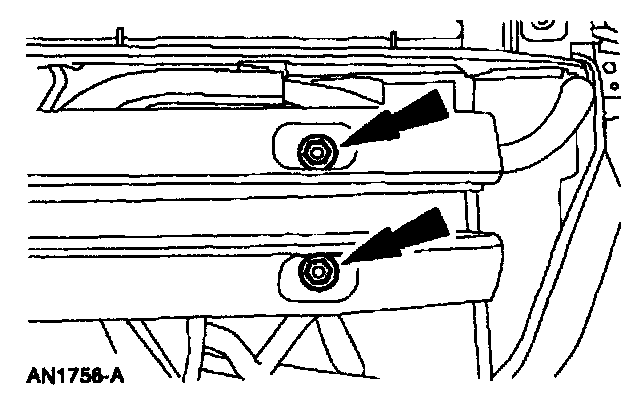

3. Remove the nuts from each side.

Installation







1. To install, reverse the removal procedure.
