Front Bumper Cover / Fascia: Service and Repair

BUMPER COVER - FRONT

Removal

All Vehicles

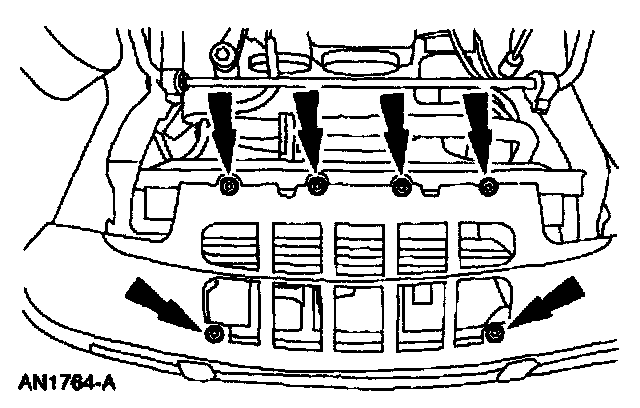

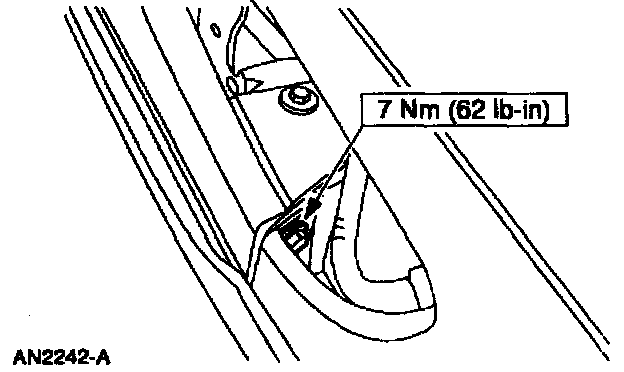

1. Remove the bolts.







2. Remove the bolt from each side.

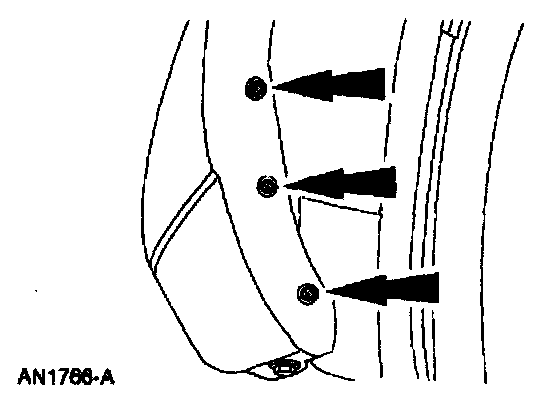

3. Remove the screws from each side.
4. Remove the cornering lamp assemblies.

Grand Marquis

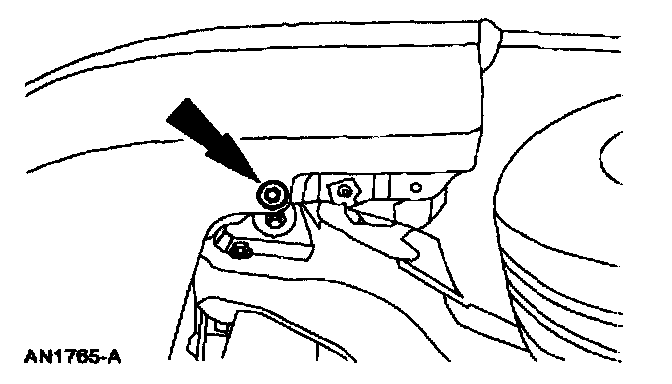

5. Remove the bolt from each side.

Crown Victoria

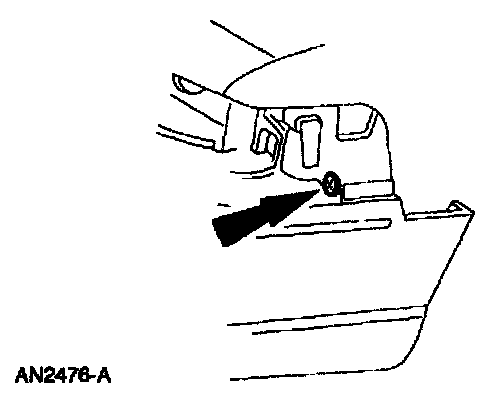

6. Remove the screw from each side.

All Vehicles

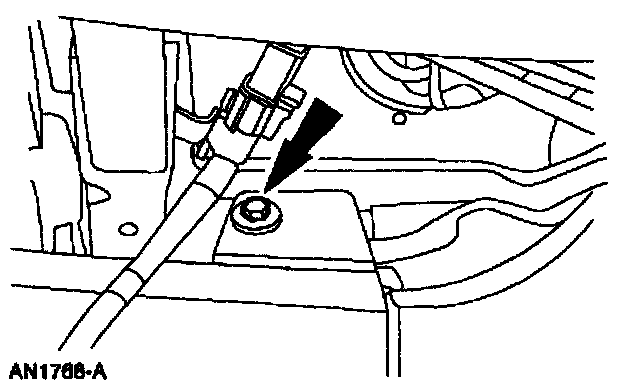

7. Remove the bolt from each side.

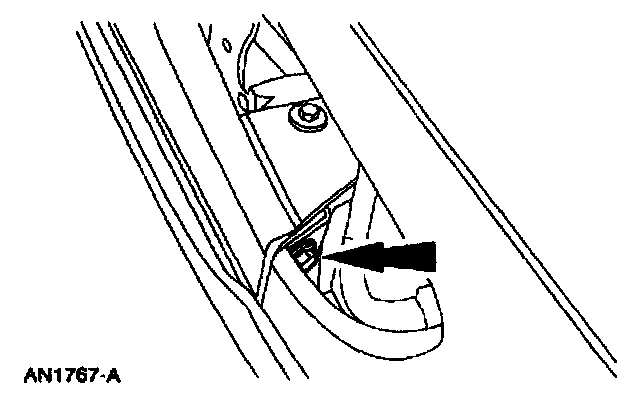

8. Release the four tabs to remove the front bumper cover (17D957).

Installation

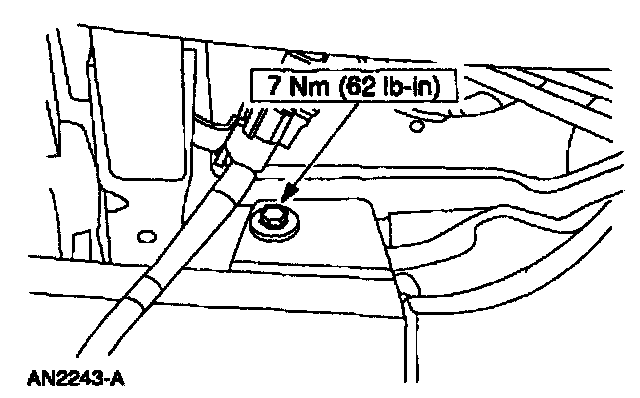

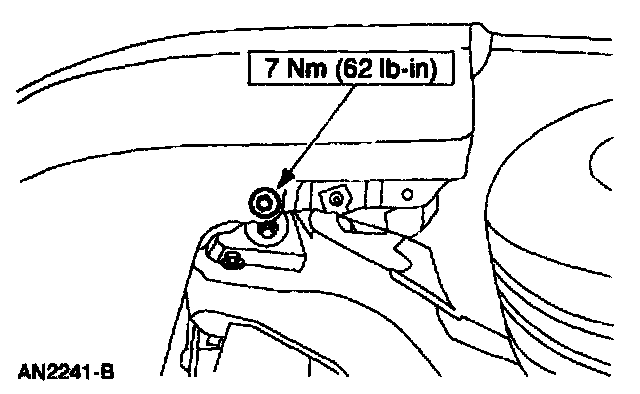

1. To install, reverse the removal procedure.
