Door Mounted Speakers
REMOVAL1. Remove the front door trim panels.
2. Remove the radio speakers.

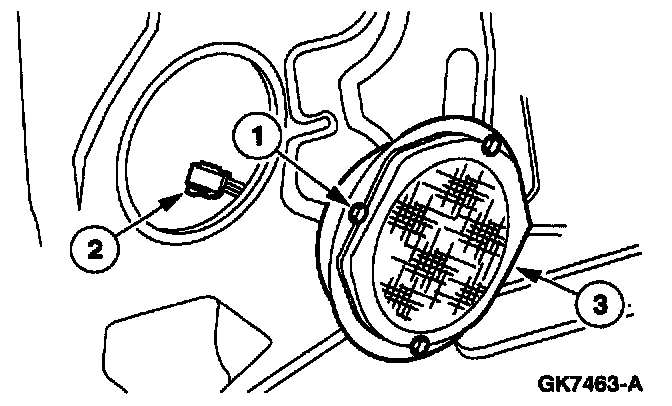

1 Remove the screws.
2 Disconnect the electrical connectors.
3 Remove the radio speakers.
INSTALLATION
1. To install, reverse the removal procedure.
1. Remove the front door trim panels.
2. Remove the radio speakers.
1 Remove the screws.
2 Disconnect the electrical connectors.
3 Remove the radio speakers.
INSTALLATION
1. To install, reverse the removal procedure.
