Package Tray Speaker

REMOVAL
1. Remove the package tray trim panel.







2. Remove the radio speaker.

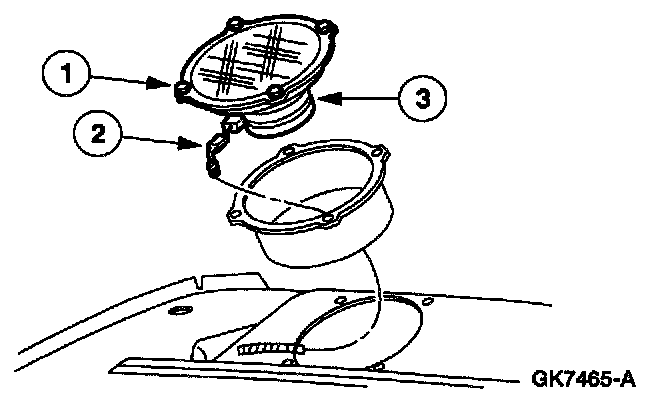

1 Remove the screws.
2 Disconnect the electrical connector.
3 Remove the radio speaker from the speaker cover.

INSTALLATION
1. To install, reverse the removal procedure.
