Front

REMOVAL
1. Remove the audio unit.

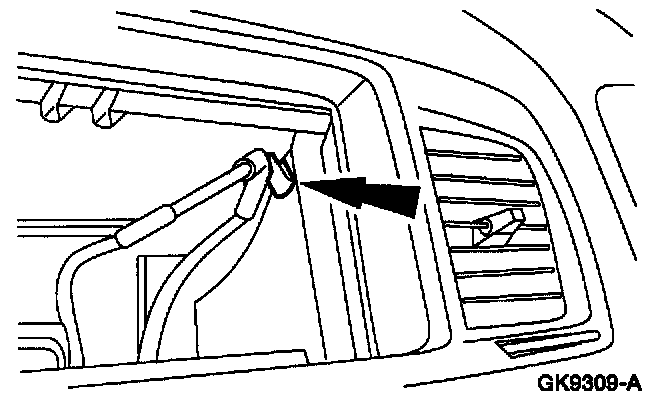

2. Disengage the antenna cable guide.

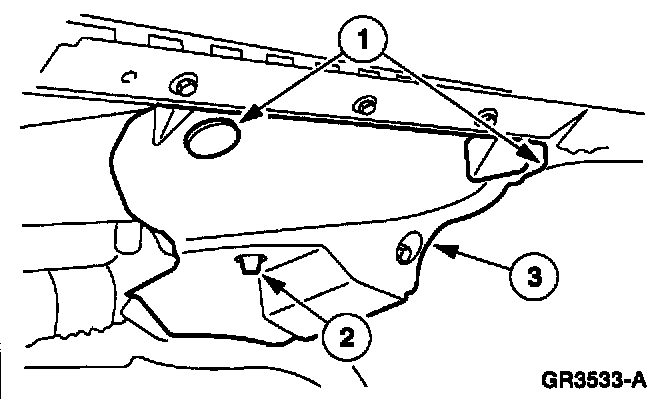

3. Position the RH lower instrument panel insulator aside.
1 Remove the pin-type retainers.
2 Release the locking tab.
3 Remove the instrument panel lower insulator.
^ Disconnect the courtesy lamp.

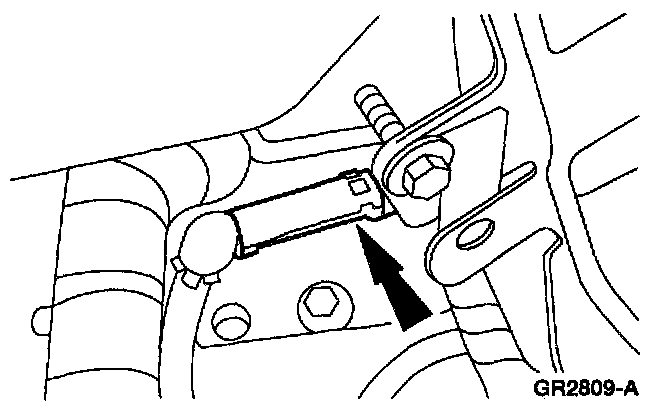

4. Disconnect the radio antenna lead in-cable.

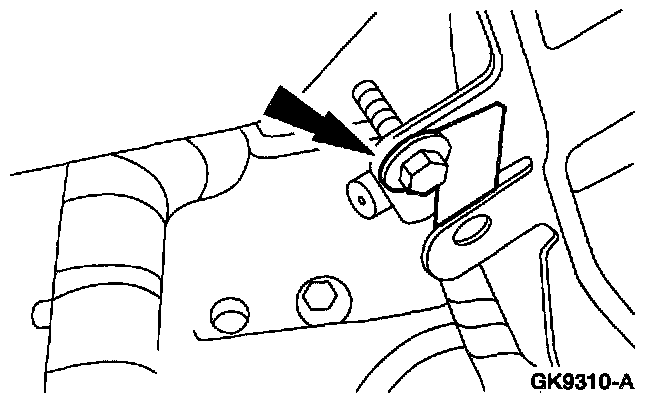

5. Remove the antenna cable bracket screw.







6. Remove the center carpet insert.
1 Remove the two pin-type retainers.
2 Remove the center carpet insert.

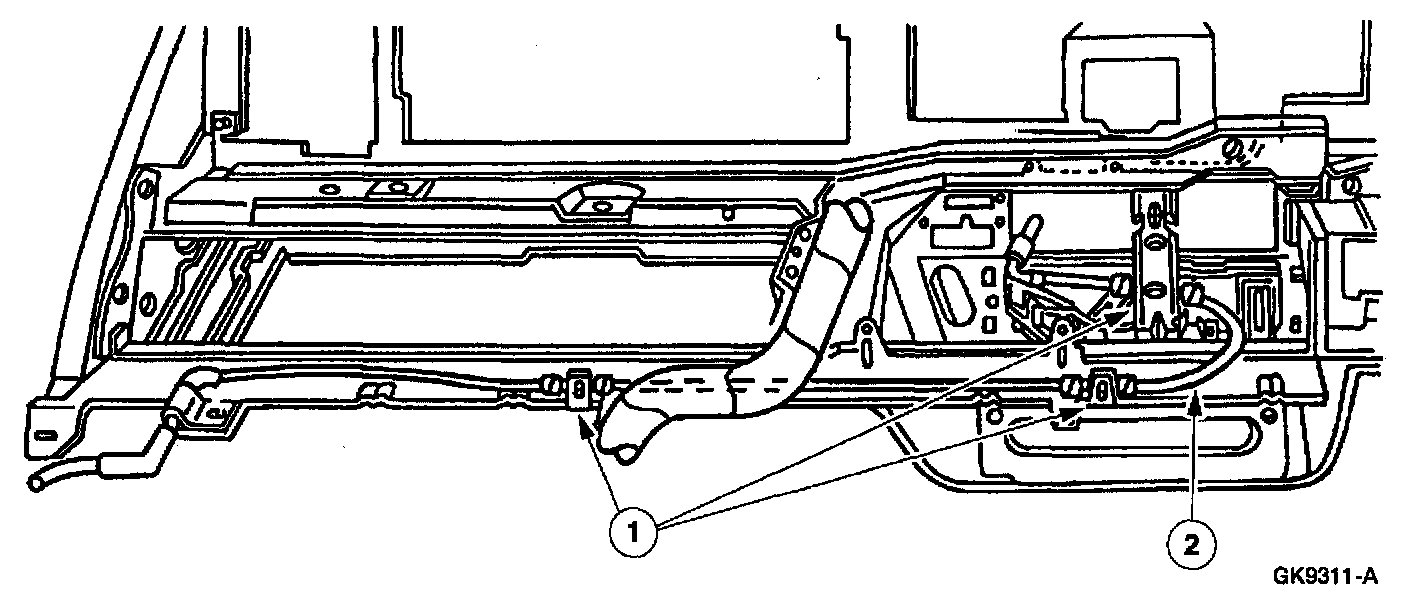

7. Remove the antenna lead-in cable.
1 Remove the three clips.
2 Remove the antenna lead-in cable.

INSTALLATION
1. To install, reverse the removal procedure.
