High Pressure Safety Valve HVAC: Service and Repair

REMOVAL
1. Recover the refrigerant.

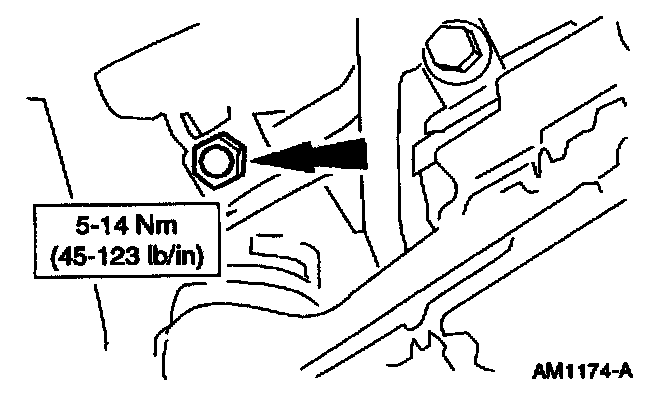

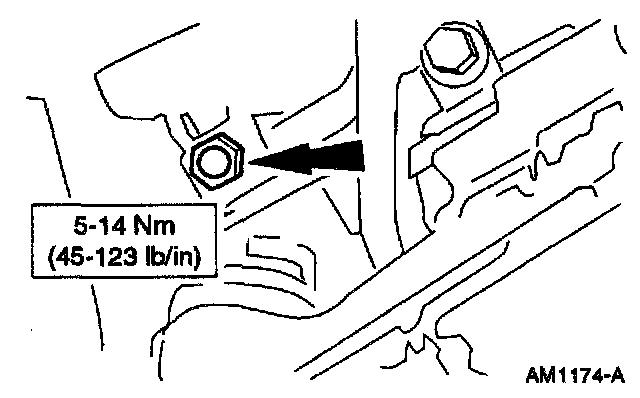

2. Remove the A/C compressor pressure relief valve.

INSTALLATION







1. To install, reverse the removal procedure.
- Lubricate the O-ring seal with PAG compressor oil YN-12-C F7AZ-19589-DA or equivalent meeting Ford specification WSH-M1C231-B.
