Manual Climate Control

REMOVAL







1. Remove the finish panel.







2. Disconnect the connector.

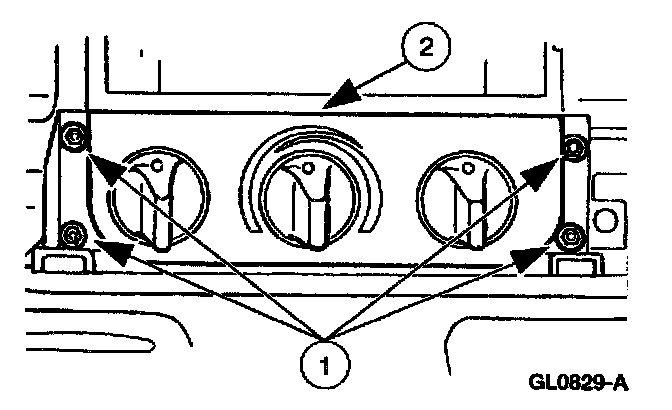

3. Remove the climate control head.
1 Remove the screws.
2 Remove the climate control head.

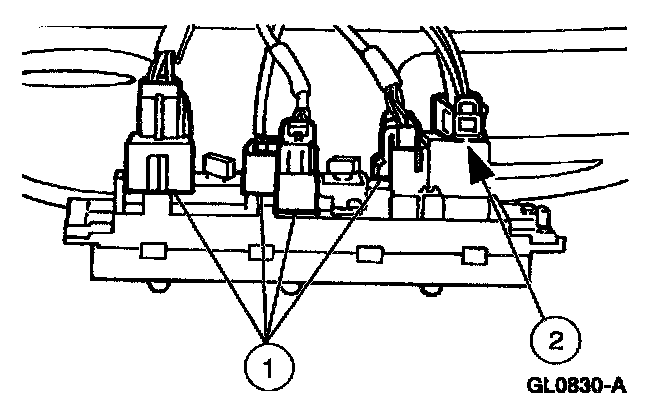

4. Disconnect the climate control head.
- Disconnect the electrical connectors.
- Disconnect the vacuum line connector.

INSTALLATION
1. To install, reverse the removal procedure.
