RH Register
REMOVAL1. Remove the passenger side airbag.

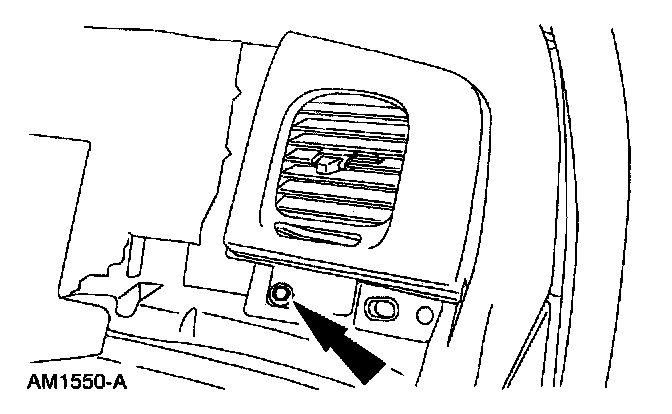

2. Remove the screw and the RH instrument panel register.

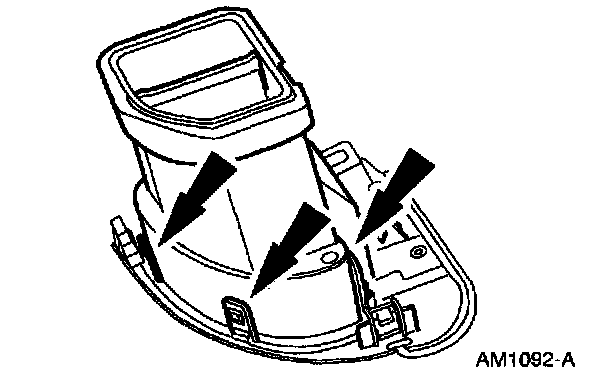

3. Disengage the lock tabs and remove the register assembly.
INSTALLATION
1. To install, reverse the removal procedure.
1. Remove the passenger side airbag.
2. Remove the screw and the RH instrument panel register.
3. Disengage the lock tabs and remove the register assembly.
INSTALLATION
1. To install, reverse the removal procedure.
