Air Recirculating Duct

REMOVAL
1. Remove the instrument panel. For additional information, refer to: Dashboard/Instrument Panel. Service and Repair

2. Remove the plenum chamber.
3. Remove the RH front wheel and tire.

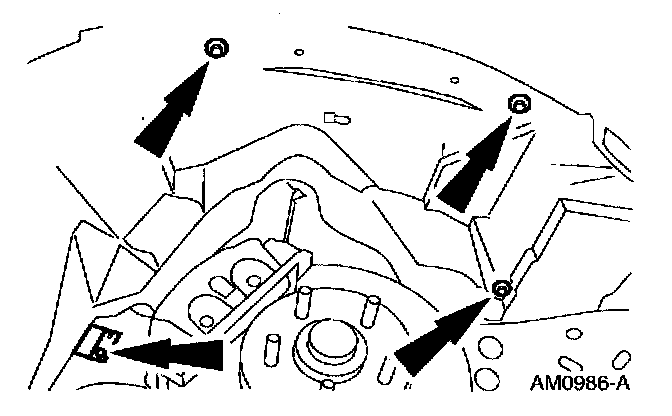

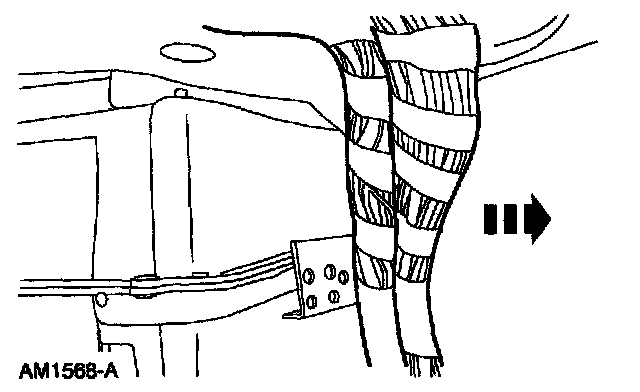

4. Remove the bolts and reposition the fender apron.

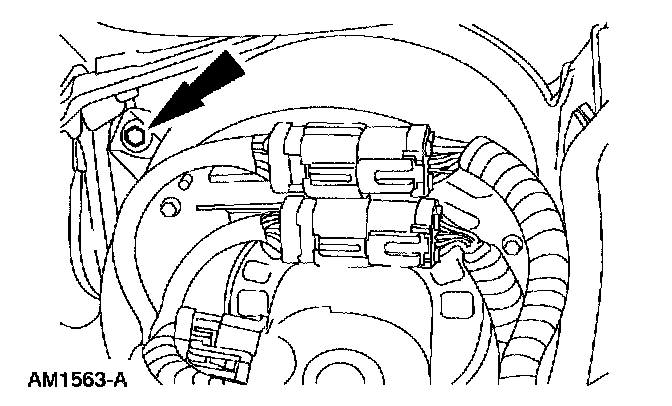

5. Remove the bolt.

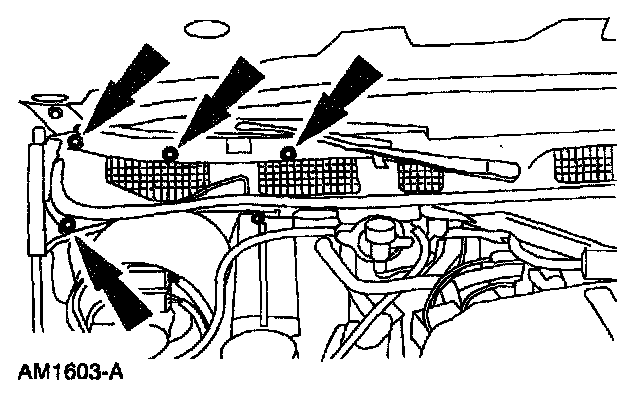

6. Remove the screws and the pin-type retainer and reposition the cowl top cover to access the duct nut.

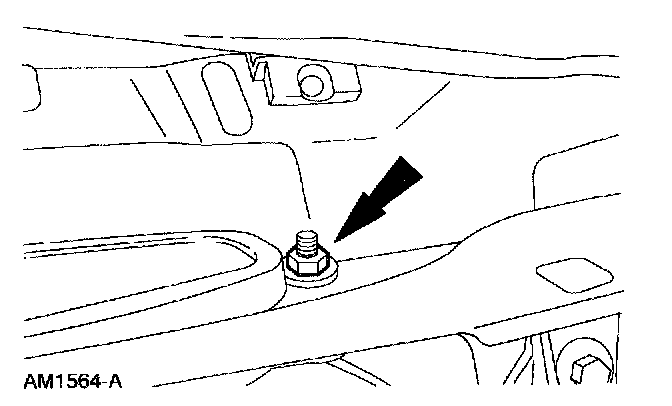

7. Remove the nut.

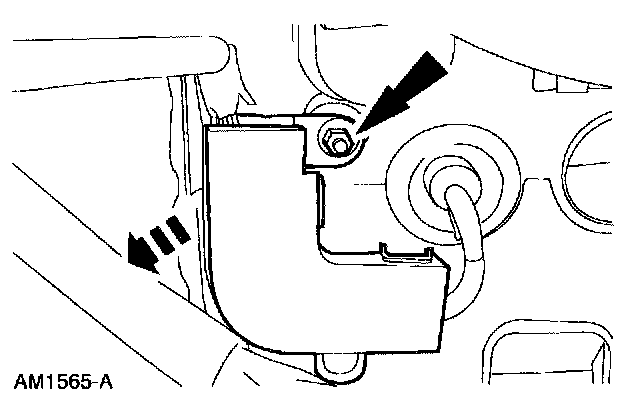

8. Remove the nut and position the harness cover aside.

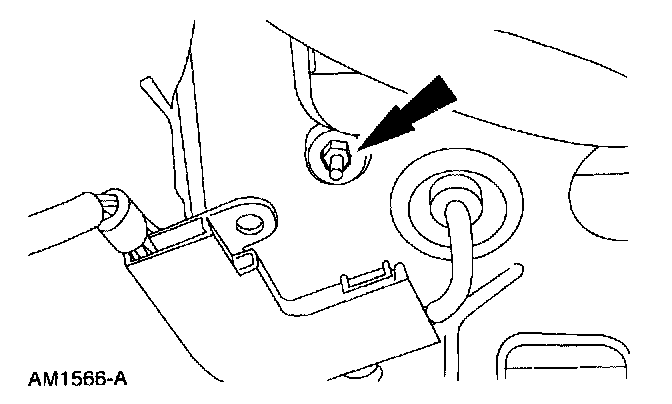

9. Remove the nut.

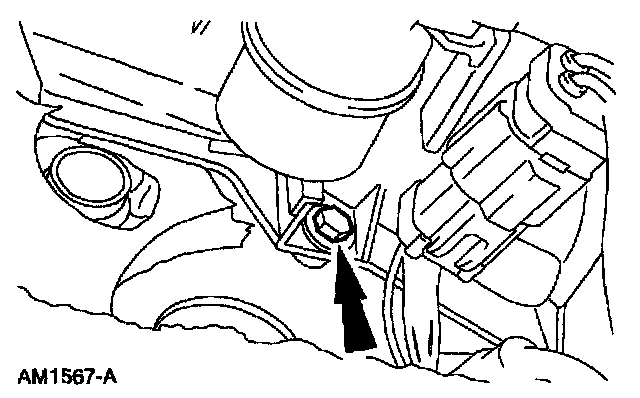

10. Remove the bolt.







11. Remove the wiring harness.

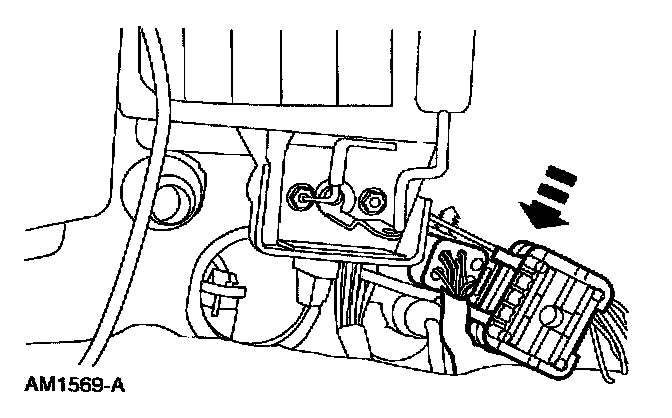

12. Disengage the connectors and remove the air recirculating duct.

INSTALLATION
1. To install, reverse the removal procedure.
