Rear Seat Airflow Duct

REMOVAL
1. Remove the seats.
2. Remove the carpet.

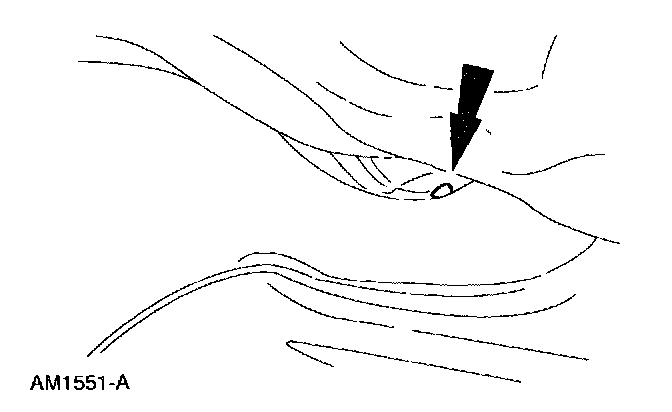

3. Remove the pin-type retainer on each side of the duct and remove the duct.

INSTALLATION
1. Follow the removal procedure in reverse order.
