Electronic Blend Door Actuator

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the instrument panel. For additional information, refer to: Dashboard/Instrument Panel. Service and Repair

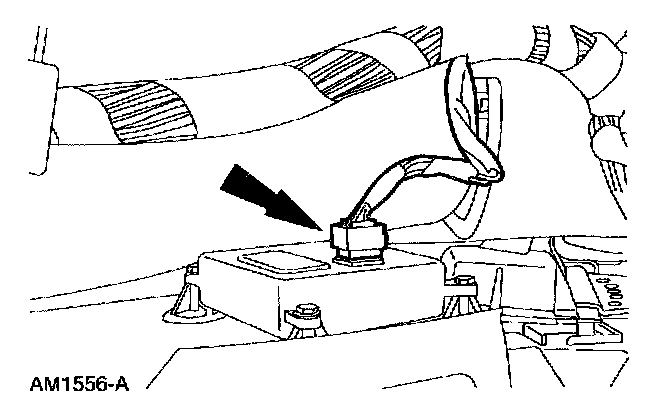

3. Disconnect the connector.

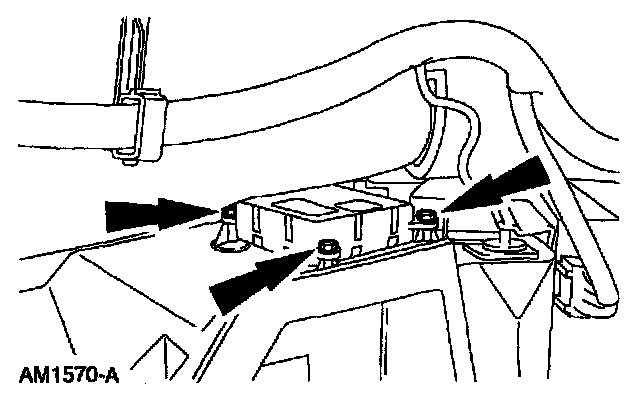

4. Remove the four screws.

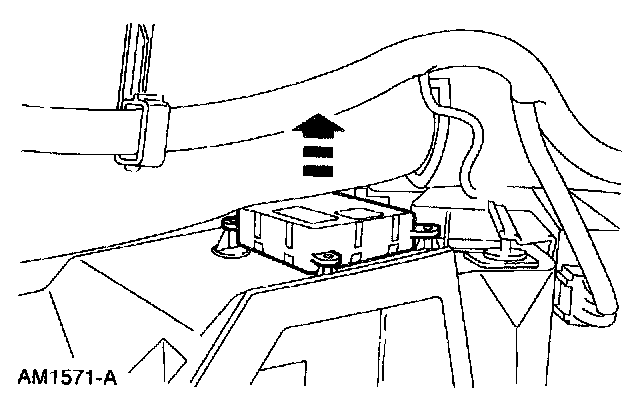

5. Remove the electronic blend door actuator.

INSTALLATION
1. To install, reverse the removal procedure.
