Air Recirculation Door

REMOVAL

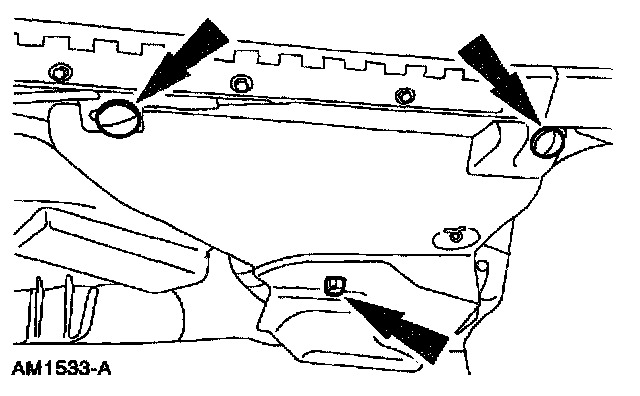

1. Remove the pin-type connectors and retainer and remove the instrument panel lower insulator.

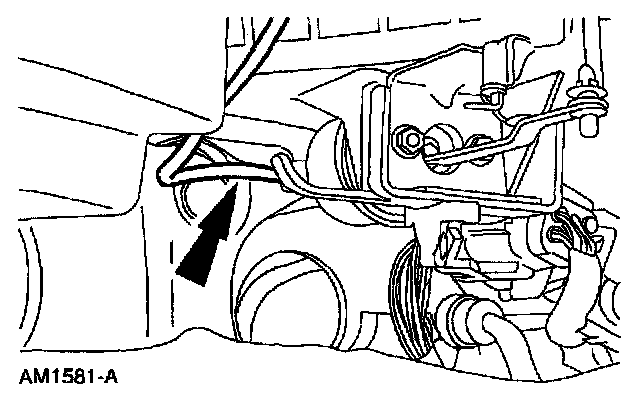

2. Disconnect the vacuum connector.

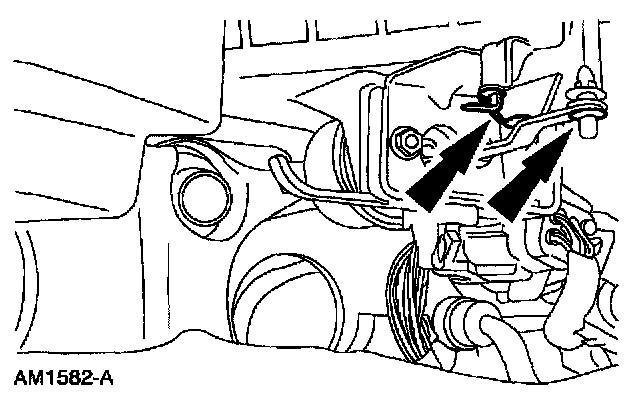

3. Remove the control arm clip and the spring.

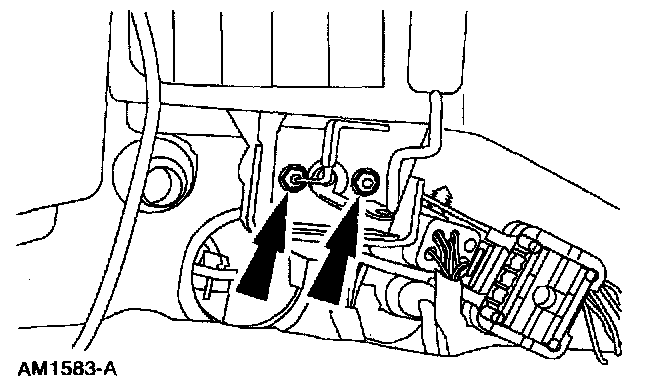

4. Remove the nuts and remove the vacuum control motor.

INSTALLATION
1. To install, reverse the removal procedure.
