Windshield Defrost Door

REMOVAL
1. Disconnect the battery ground cable.

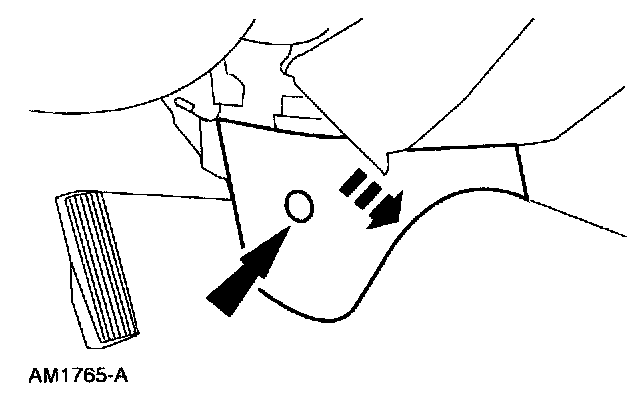

2. Remove the LH lower dash insulator panel and disconnect the lamp.

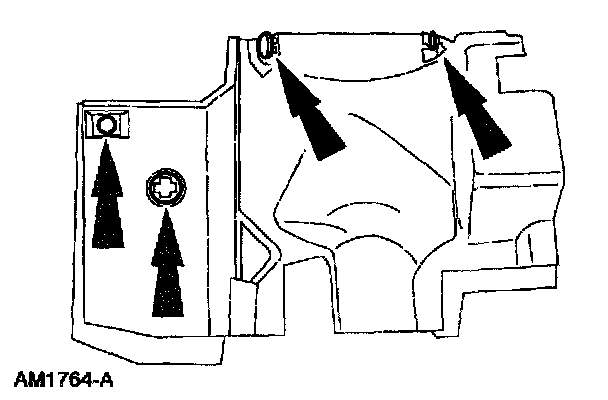

3. Remove the two pin-type connectors and remove the fill panel.

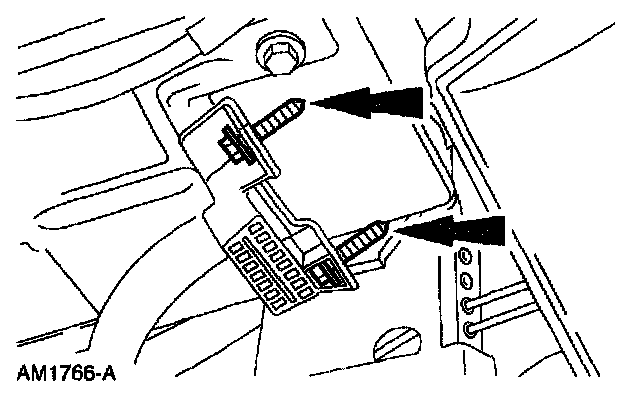

4. Remove the screws.

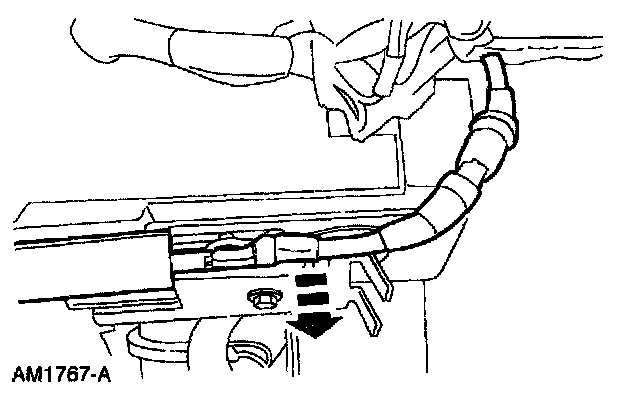

5. Disengage the vacuum line.

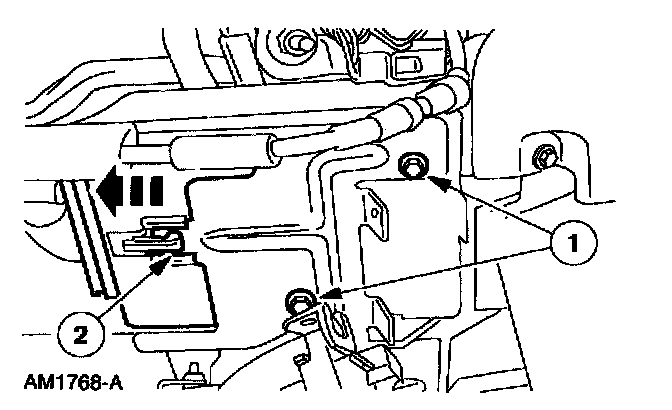

6. Remove the lighting module.
1 Remove the screws.
2 Disengage the clip.
- Remove the lighting module.

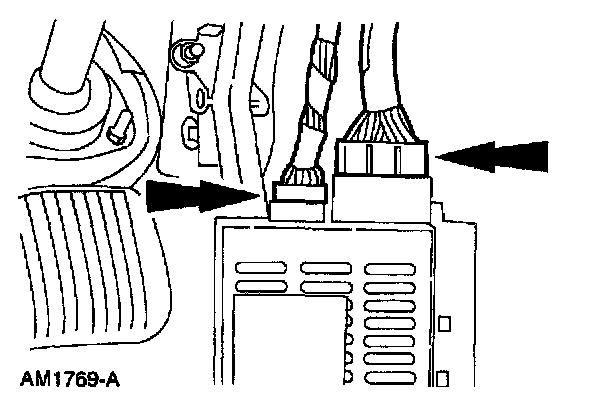

7. Remove the connectors.







8. Remove the screws and remove the bracket.

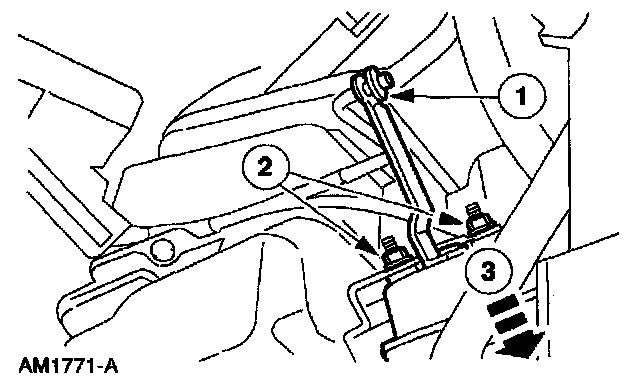

9. Remove the vacuum motor.
1 Remove the clip.
2 Remove the nuts.
3 Remove the vacuum motor.

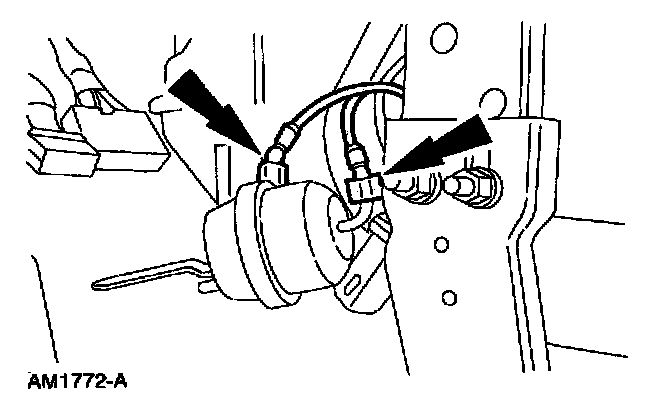

10. Disconnect the vacuum lines and remove the vacuum motor.

INSTALLATION
1. To install, reverse the removal procedure.
