Floor Duct Door

REMOVAL
1. Remove the instrument panel. For additional information, refer to: Dashboard/Instrument Panel. Service and Repair

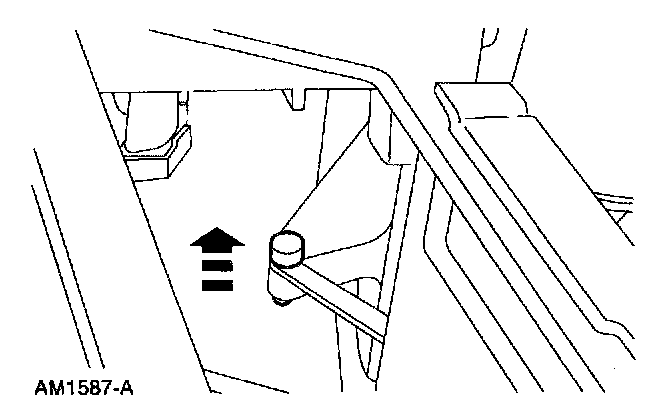

2. Reach through the door opening and remove the pin.

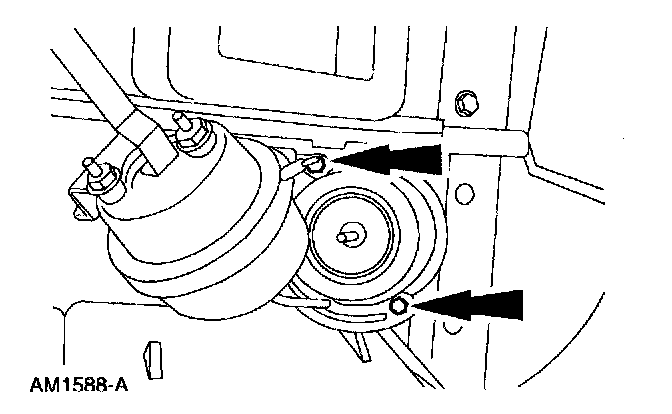

3. Disconnect the vacuum control motor vacuum line.







4. Remove the screws and remove the vacuum control motor.

INSTALLATION
1. To install, reverse the removal procedure.
