Front

Wheel Studs

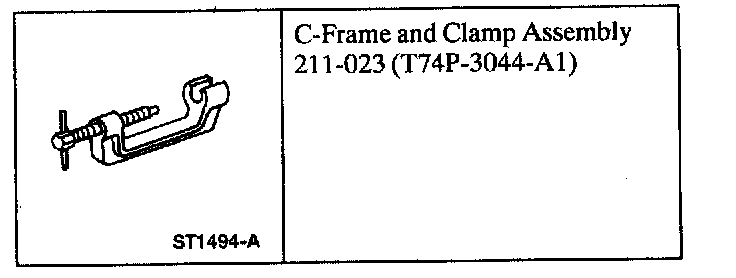

Special Tools:

Special Tool(s)

Removal
1. Raise and support the vehicle.
2. Remove the wheel and tire assembly.
3. Remove the brake disc.





4. CAUTION: When removing and installing the wheel studs, we extreme caution not to damage the ABS sensor lead or the ABS sensor ring.

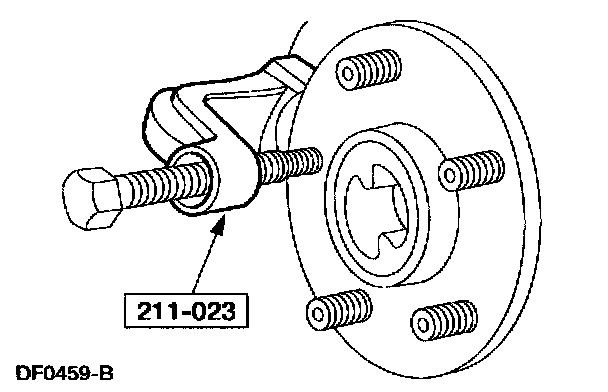

Using the special tool, press the wheel stud out of the wheel hub and bearing flange.

Installation





1. CAUTION: When removing and installing the wheel studs, use extreme caution not to dodge the ABS sensor lead or the ABS sensor ring.

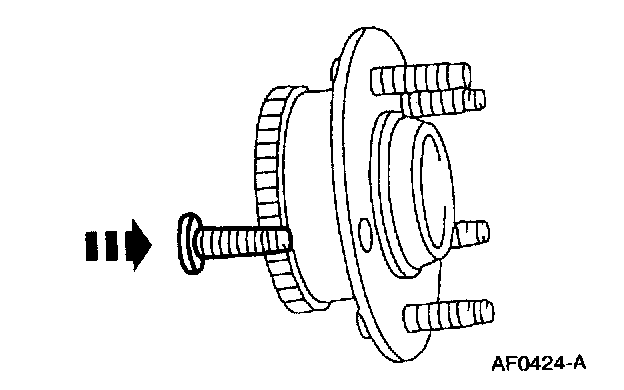

Position the wheel stud.

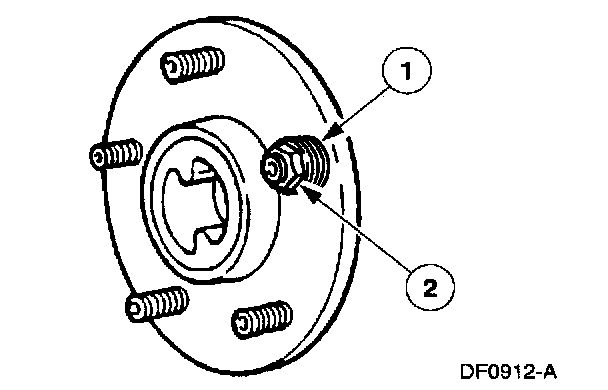

2. Install the wheel stud.
1 Install four washers onto the wheel stud.
2 Install reversed wheel nut. Tighten the wheel nut until the wheel stud seats fully onto the wheel hub and bearing flange.
3. Remove the wheel nut and washers.
4. Install the brake disc.
5. Install the wheel and tire assembly.
6. Lower the vehicle.
