Front

Link-Stabilizer Bar

Removal

CAUTION: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure can result in major service expense. They must be replaced with the same part number or an equivalent part if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Torque values must be used as specified during reassembly to ensure proper retention of these parts.

1. Raise and support the vehicle.
2. Remove the front wheel and tire assemblies.





3. NOTE: Both the left side and the right side stabilizer bar link are removed the same way. Only the right side is shown.

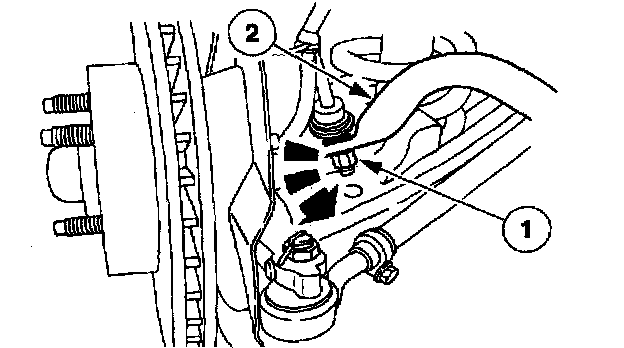

Disconnect the front stabilizer bar.
1 Remove the nut.
2 Disconnect the front stabilizer bar.

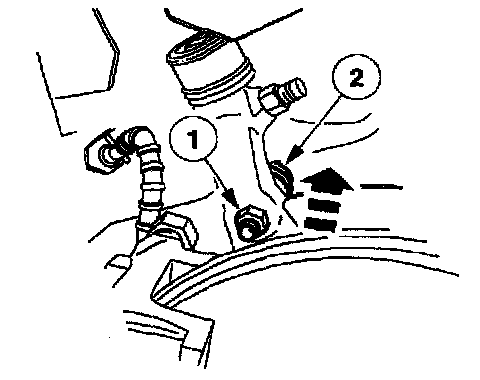

4. Remove the stabilizer bar link.
1 Remove the nut.
2 Remove the stabilizer bar link.

Installation





1. NOTE: Both the left side and the right side stabilizer bar link are installed the same-way. Only the right side is shown.

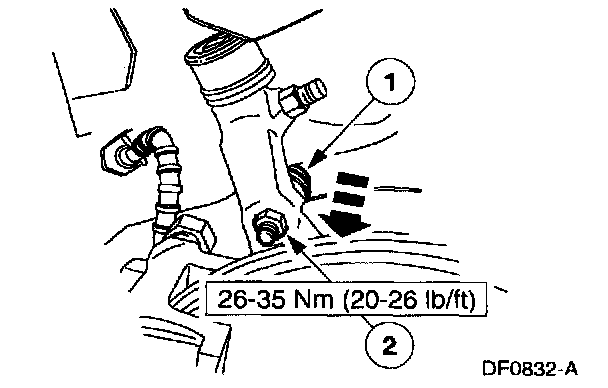

Install the stabilizer bar link.
1 Position the stabilizer bar link.
2 Install the nut.

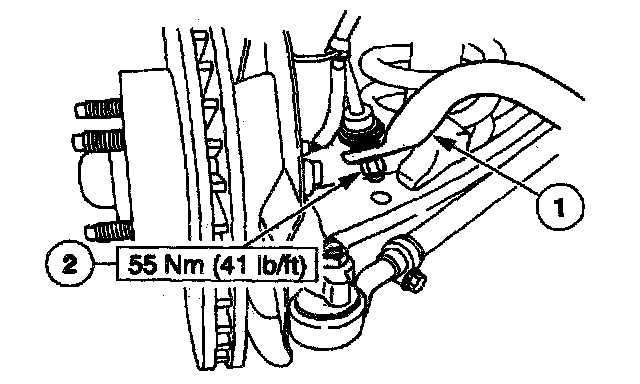

2. Connect the front stabilizer bar.
1 Position the front stabilizer bar.
2 Install the nut.
3. Install the Font wheel and tire assemblies.
4. Lower the vehicle.
