Stabilizer Bushing: Service and Repair

Bushing-Stabilizer Bar

Removal

CAUTION: Suspension fasteners are critical parts because they affect performance of Old components and systems and their failure can result in major service expense. They must be replaced with the same part number or an equivalent part if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Torque values must be wed as specified during reassembly to ensure proper retention of these parts.

1. Raise and support the vehicle.





2. NOTE: Both the left side and the right side stabilizer bar bushings are removed the same way. Only the right side is shown.

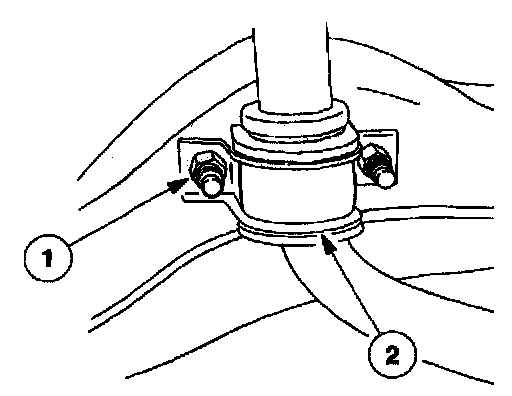

Remove the stabilizer bar bracket.
1 Remove the nuts.
2 Remove the bracket.

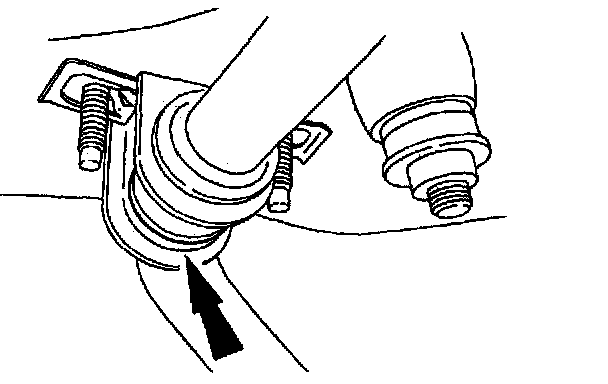

3. Remove the stabilizer bar bushing.

Installation

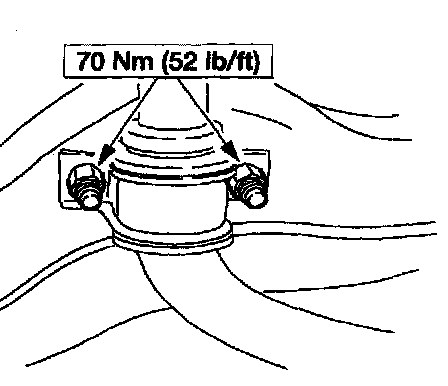

1. To install, reverse the removal procedure.
