Removal and Installation

Gear

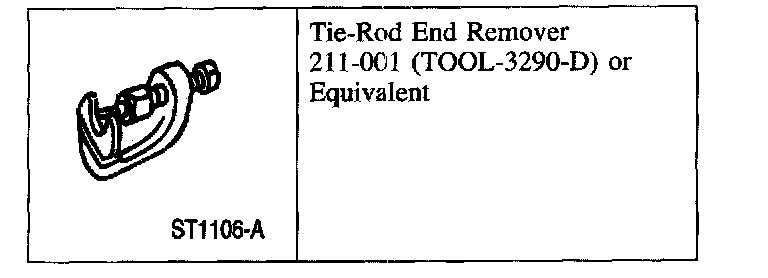

Special Tool(s)

Removal

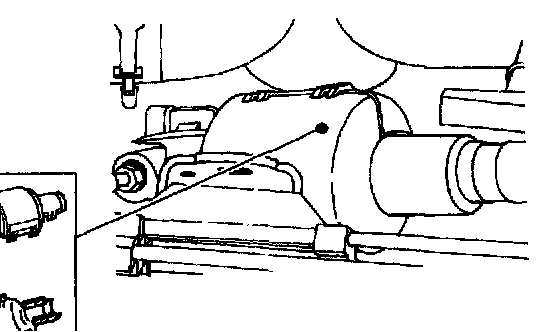

1. Separate and remove the cover.





2. Remove and discard the pinch bolt.
3. Make sure the ignition switch is in the locked position.

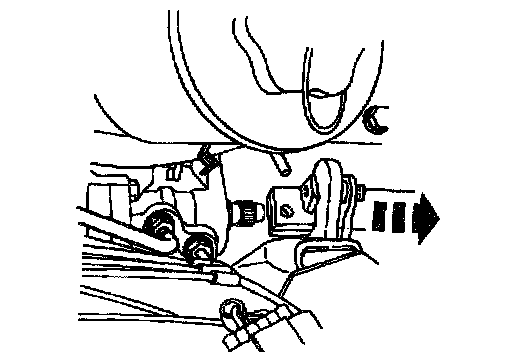

4. Separate the steering column lower shaft from the steering gear.

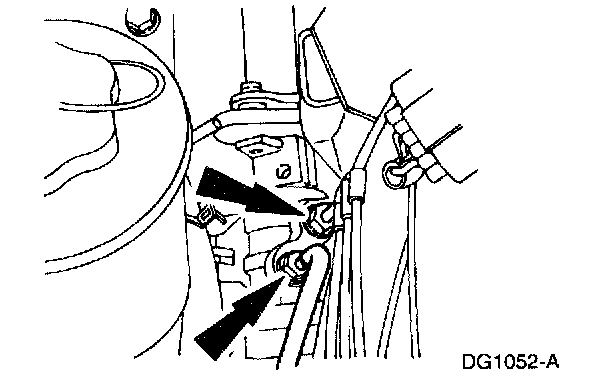

5. Disconnect the lines.
6. Raise the vehicle.





7. Remove and discard the lock nut.

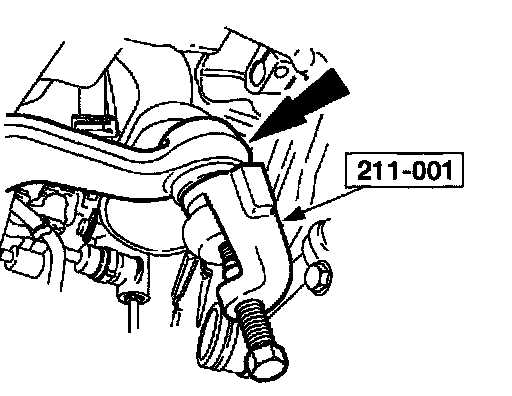

8. Using the special tool, separate the steering sector shaft arm drag link from the steering gear sector shaft arm.





9. Remove the bolts and the steering gear.

Installation

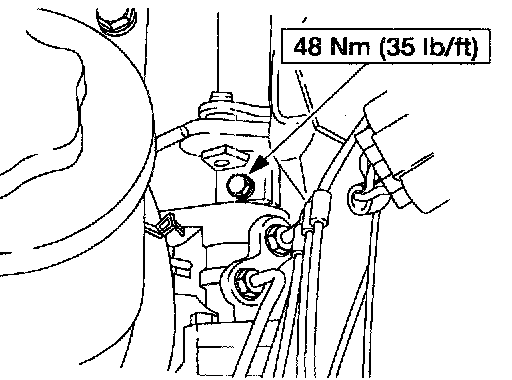

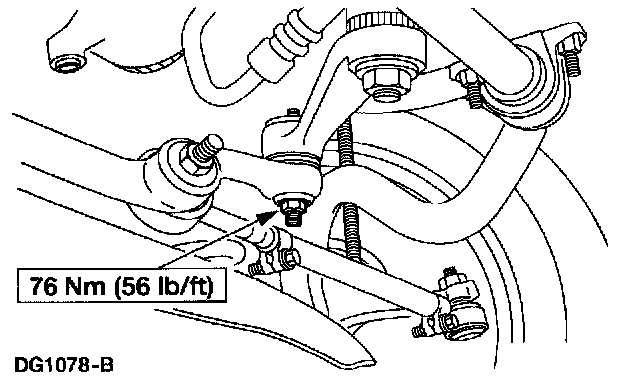

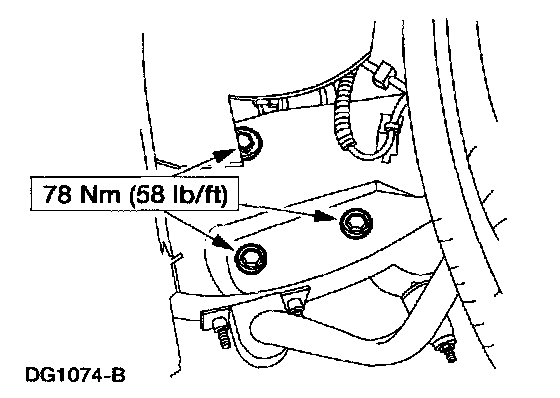

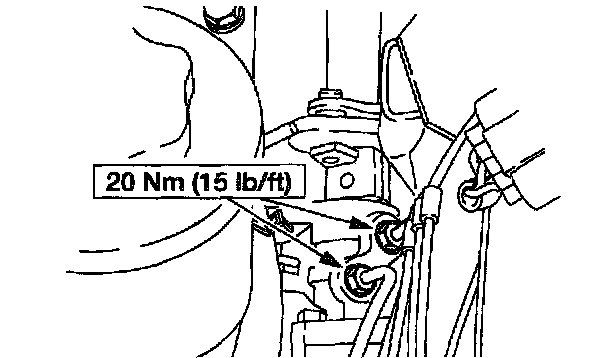

1. Follow the removal procedure in reverse order.
^ Install a new lock nut and pinch bolt.
^ Install new seal rings as necessary.
2. Fill and leak check the system.
